TREND T9 - Description of Parts

T9
-6-
4
5
6
7
11
20
21
22
26
23
24
8
15
3
2
1
19
31
1425 1318 17
10
9
16
12
28
27
29
30

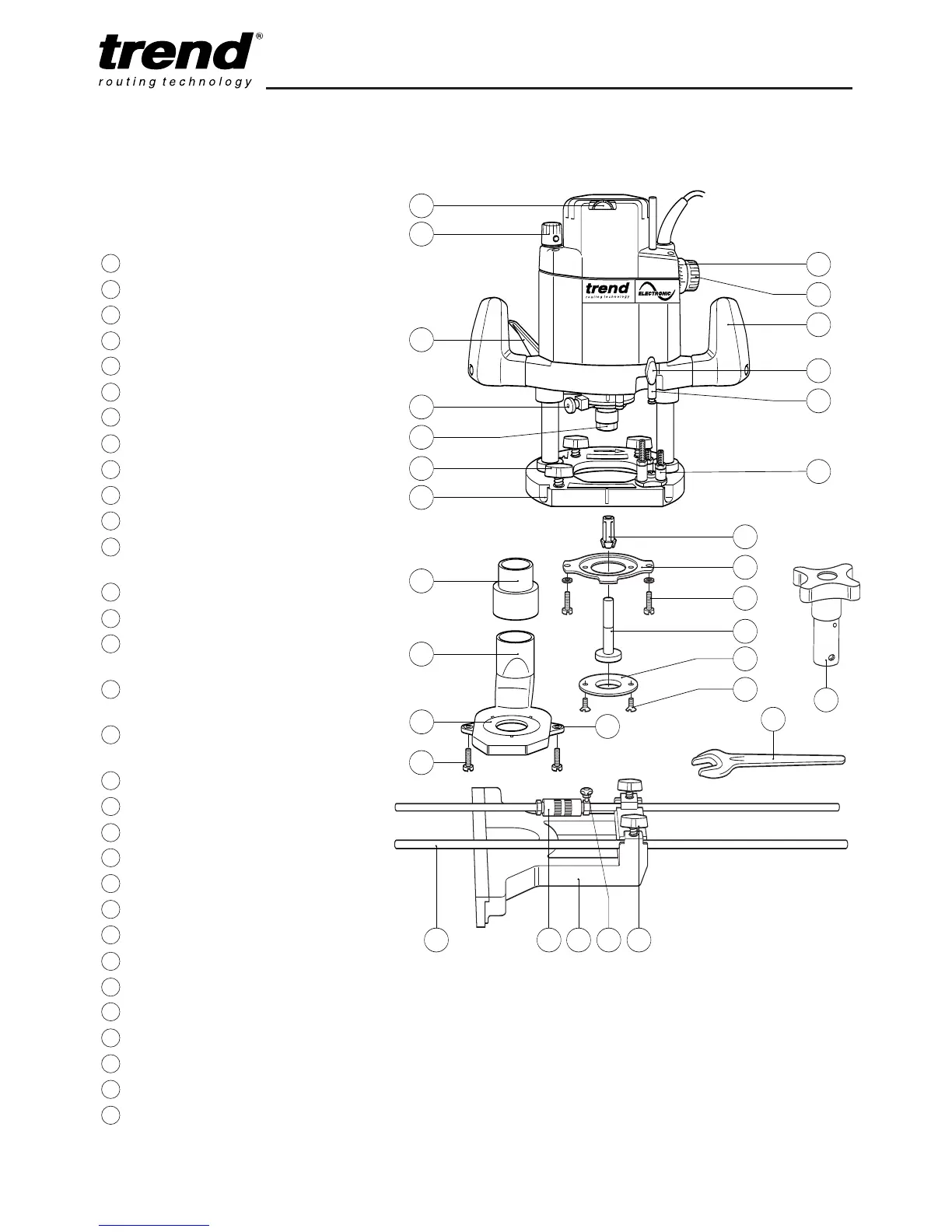

DESCRIPTION OF PARTS`
1 Plunge locking lever
2 Plunge depth adjustment knob
3 Variable speed control dial
4 Graduated ring
5 Depth stop adjustment knob
6 Thumb knob - depth stop
7 Depth stop
8 3 way turret stop
9 Collet nut
10 Spindle lock
11 Handle with on/off switch
12 Dust extractor spout
(internal dia. 35mm)
13 Micro fence adjuster thumb knob
14 Micro fence adjuster
15 Micro fence adjuster
base location
16 Thumb knob with anti-vibration
springs to secure side-fence rods
17 Thumb knob with anti-vibration
springs for side-fence
18 Side-fence
19 Spanner (22mm A/F)
20 Collet
21 Inner plate
22 Inner plate fixing screws and washers
23 Template guide bush dia 30mm
24 Template guide bush fixing screws
25 Fence rods dia 10mm x 450mm long
26 Template guide bush line up pin
27 Dust spout fixing screw
28 Dust spout adaptor (internal dia 26mm)
29 Dust spout insert
30 Dust spout fixing nut
31 Fine height adjuster
