Managed Industrial L2 Switch
Toplogy Map
The topology map displays a basic view of the current network topology and device
inter-connections. Devices are discovered via LLDP and ONVIF protocols, or can be
manually entered which will be added to the device display. The topology map/netlite
view is only available through the web GUI configuration page.

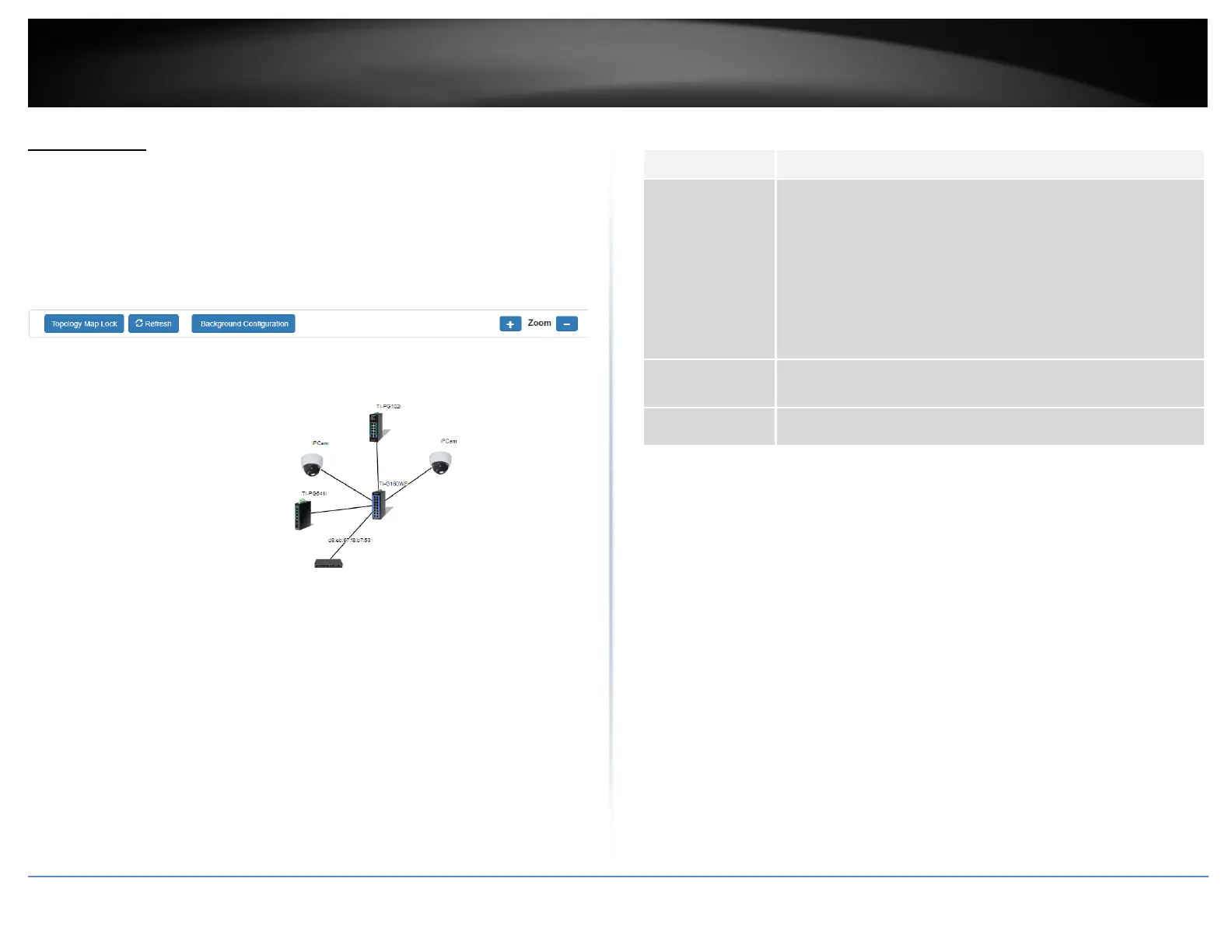

Web Configuration
Management > Topology Map
When map is unlocked, you can freely drag the connected devices
to a different locations of the map view. When the map is locked,
devices are locked into their current viewing position and right-
clicking the devices may allow for other web accessible/
configurable options depending on the device. Also, all of the
current devices will remain on the map even if they are
disconnected until the topology map is unlocked.
Manually refresh the topology map/netlite page.
Modify the background color of the topology map or upload a
background image.
Zoom in or out of the topology map/netlite viewing page.
To Next Page
