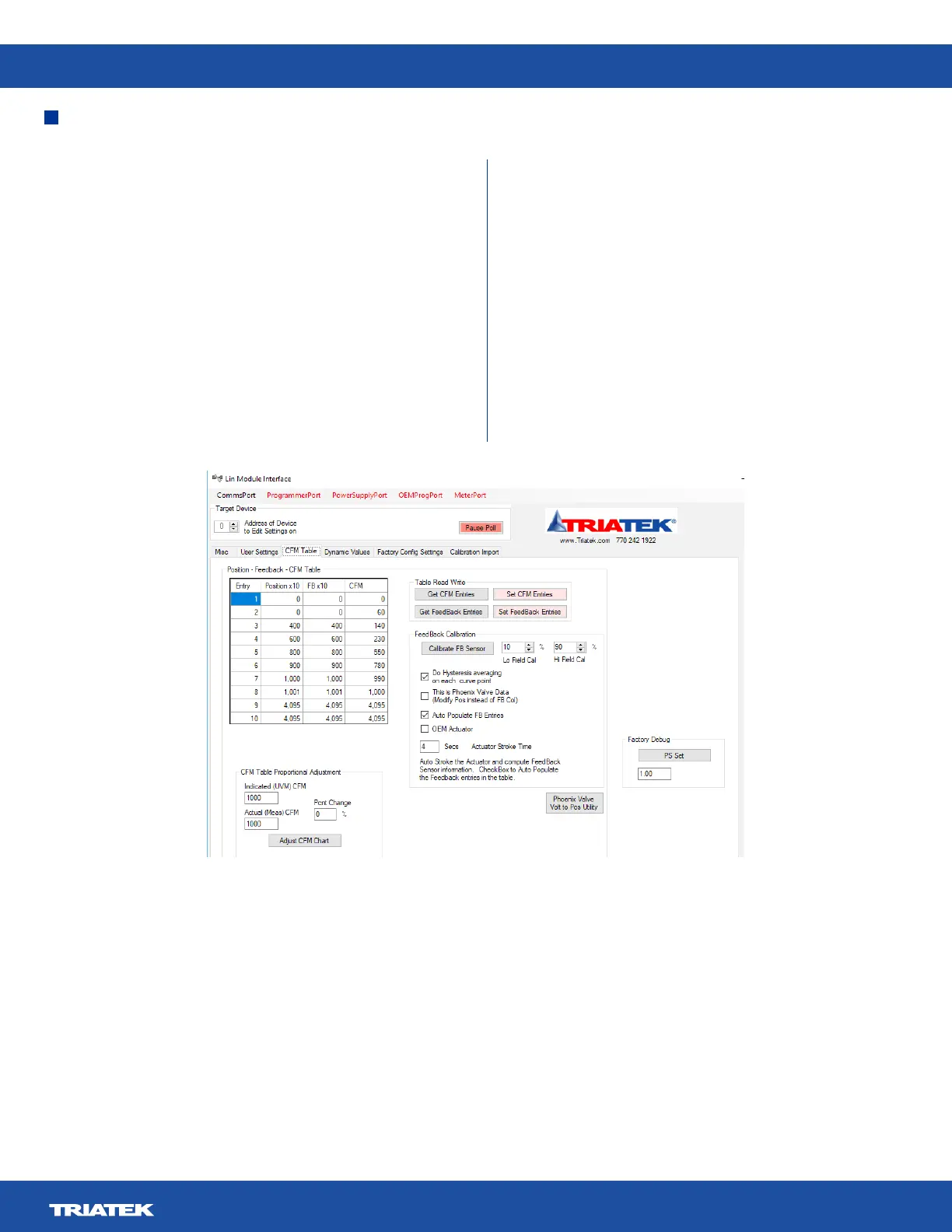

Figure 8. CFM Table Tab
The feedback calibration process will take an A/D reading at
these two positions both from the up-going and down-going
direction and take the average. This is to account for any
hysteresis in the feedback sensor reading.
There is also a checkbox Do Hysteresis averaging on each curve
point that enables the average up and down reading on each
of the curves actuator positions for the feedback sensor. This
improves accuracy, but will take longer to execute.
With the feedback sensor properly attached and the actuator
position curve downloaded to the controller, click the Calibrate
FB Sensor button.
The tool will automatically position the actuator at the Hi Field
Cal and Lo Field Cal positions, approaching from both directions
and getting the average A/D reading from which to compute the
gain and oset for the feedback sensor.
It will then position the actuator at each of the position points
in the table and take a corresponding reading from the sensor.
If the Hysteresis box is checked, it will take readings of the
position, approaching from both directions and taking the
average. It will convert that into a feedback sensor position and
enter it in the table. When complete, the Set Feedback Entries
button will become enabled. Click this button to download the
values to the controller.
This procedure is relevant to the Triatek style installation where
the valve is calibrated to the actuator position and cfm value.
With other valve styles, typically in retrot situations, where the
valve information is not from Triatek, the valve may contain a
feedback position, or feedback voltages and cfm values. The tool
has the provision to open a dialog where feedback voltages and
cfm values can be entered. This is done with the Phoenix Valve
Volt to Pos button. Click this to bring up the entry chart.
CFM Table Tab
To Next Page
