7.12.2 Using the Tolerance Limits
1. Activate the tolerance mode by pressing the
key.
The function symbol is then displayed in the status bar.
2. For each height, diameter or centreline measurement
for which tolerances have been activated, the
corresponding buffer line is displayed in a colour
corresponding to the result.
Green: Within tolerance limits
Yellow: Outside tolerance limits, reworking possible
Red: Outside tolerance limits, reworking not
possible
7.13 Display Modes of the Height Measurements
When taking a height measurement, the upper line
remains frozen at the measured value. The lower line
shows the distance from the measurement of the previous
height (chain dimension). When the measuring force is
released, this value is replaced by that of the last
measurement.

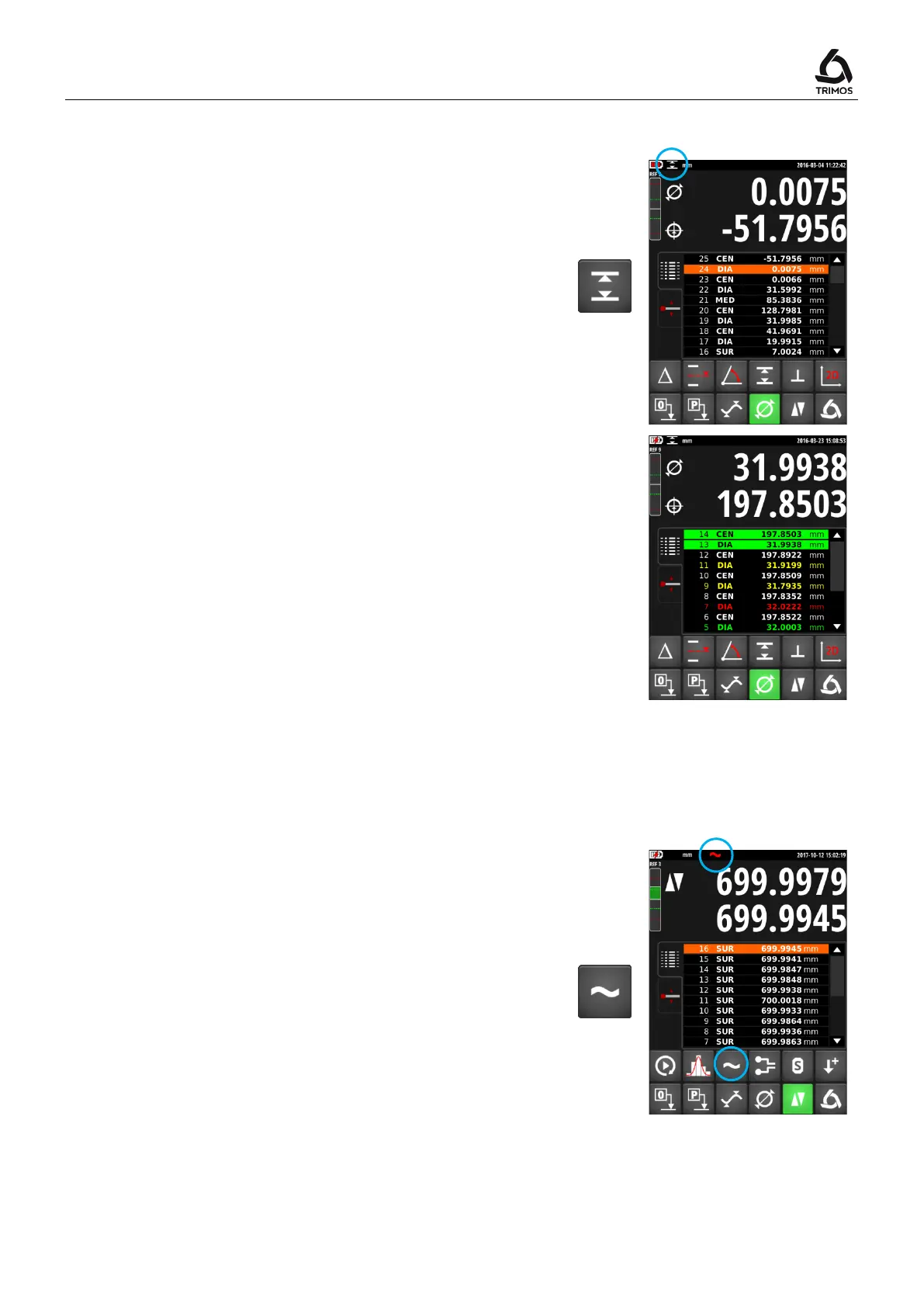

"Direct" display
When taking a height measurement, the upper line is not
frozen and directly reacts to the part's height variations.
The lower line indicates the frozen value of the last
measurement.
Activate the "direct" display mode by pressing the key
shown alongside. The "direct" display symbol is then
displayed in the status bar. Do the same to return to
Display in direct mode
