Maintenance and Repairs
Storm-OM-001
39
28 February 2020
This document, including the information contained herein, is proprietary to Triotech Amusement Inc.

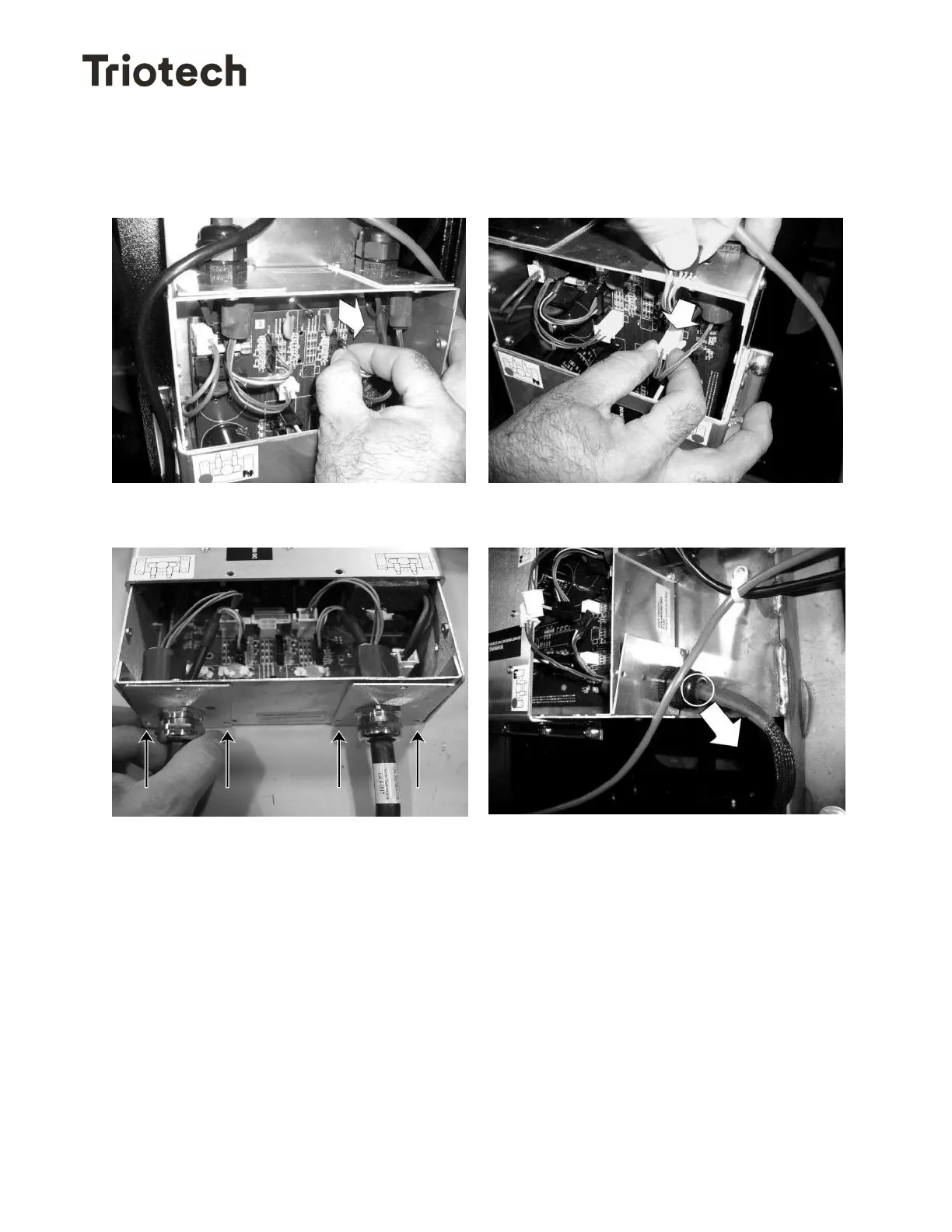

5- Pull out the black connector. Be sure to
press the release tabs on the
connectors.
6- Now disconnect the white connector. Be
sure to press the release tabs on the
connectors.
7- Remove the two screws on the side of
the ACM.
8- Now the grounding plates on the side of
the ACM can be removed.
