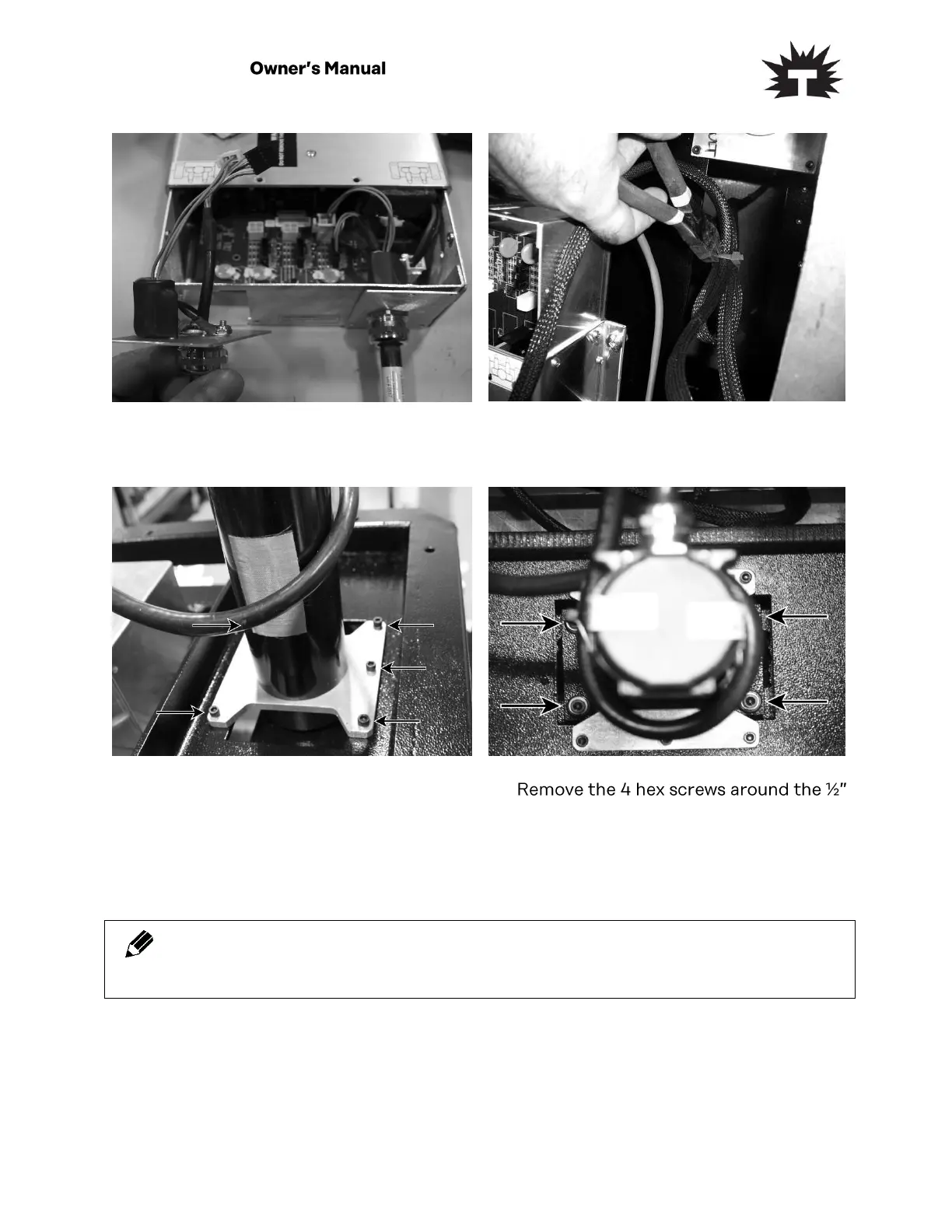

9- The cable, the plate and the connectors
can now be pulled out.
10- Cut the tie wrap holding the cables
together.
11- Start by removing the 5 hex screws
located around the grey plate. Note that
these hex screws will need to be
torqued with 79 lbs inch pounds of
pressure when installing the new
actuator.
12-
black plate. Note that these hex screws
will need to be torqued with 200 lbs
inch pounds of pressure when
installing the new actuator.
Note: It is quite easy to lose these screws. In such a case, you can replace them by
the same screws from the replacement kit.
