13-9
CLASS C MOTORHOME
3. Dinette:
The dinette also can be converted into a
bed:
a. Remove cushions.
b. Lift table and remove the table legs.
c. Drop table between seats so that the
edge of the table rests on seat edge
supports.
d. Arrange cushions to form a bed,
placing larger cushions in the center.
To convert back to a dinette, reverse the above
instructions.
Dinette
Bed

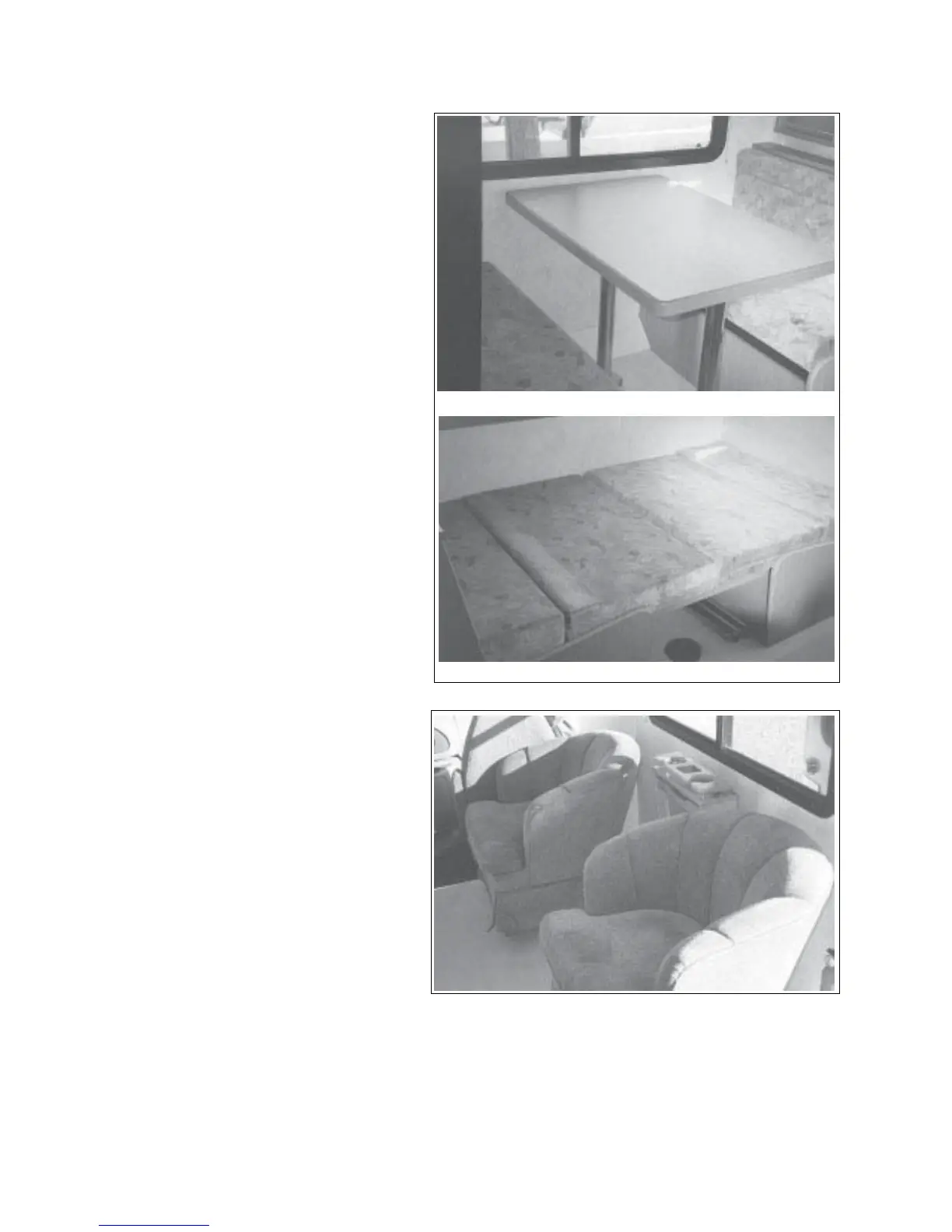

Fig. 13-12 DINETTE/BED
13.11 SEATS
To move the chairs forward or backward,
use the lever located on the front of the
chair beneath the skirt.
To swivel the chairs, pull on the lever
located under the frame on the right hand
side.
CAUTION
These chairs are not equipped
with seatbelts and are not
approved for use while travel-
ling.
Fig. 13-16 CHAIRS (TYPICAL)
