10-10
CLASS C MOTORHOME
10.3.5
BATTERY CONDITION METER
On your control panel you will find a gauge
which tells you the level of charge in your
battery.
10.4 TRAILER WIRING
CONNECTOR
Your motorhome is ready for trailer or car
towing. It has a wiring connector plug at the
back for quick hook-up.
Refer to the labeled diagram of the various
terminals in the plug. These are standard for
all 7-pin trailer plugs.

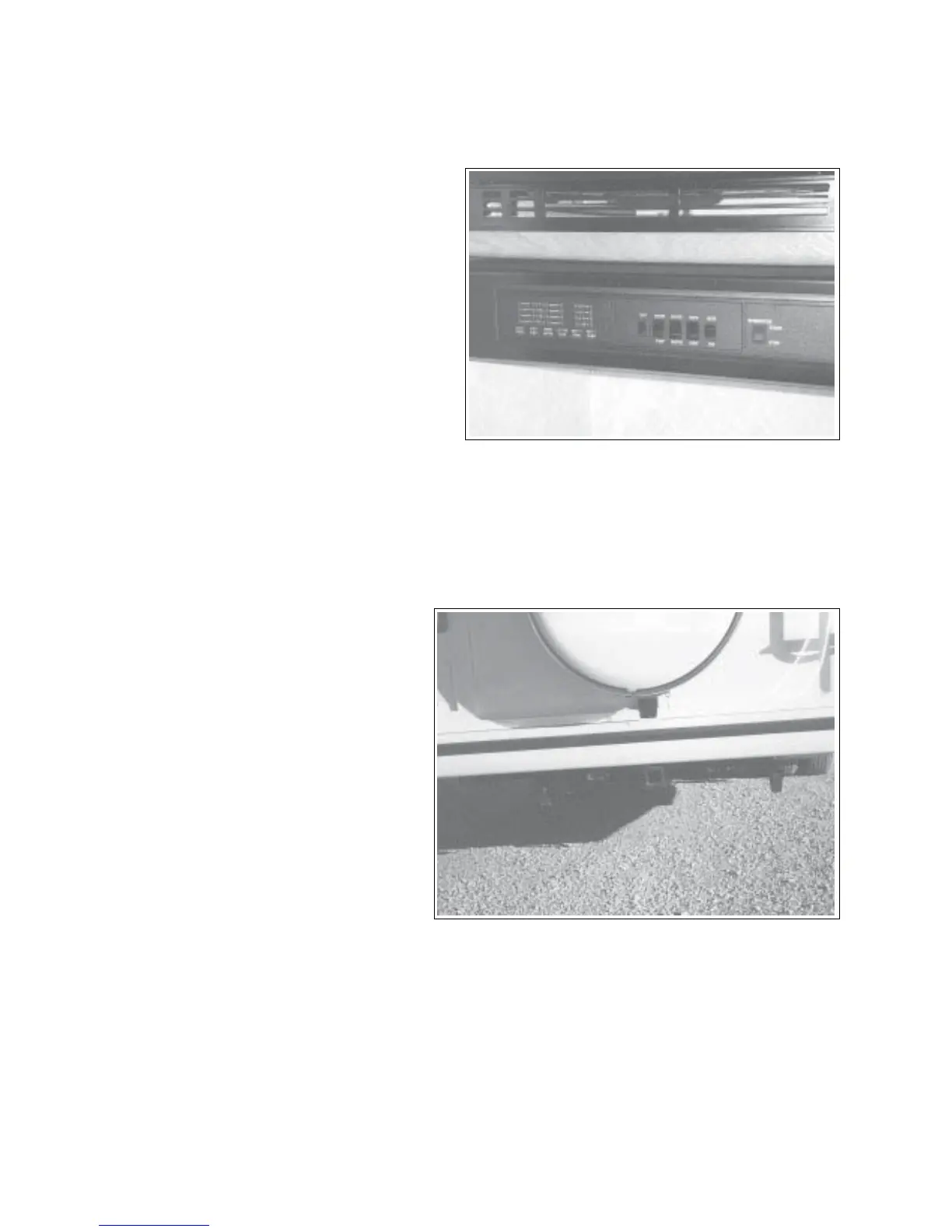

Fig. 10-12 BATTERY CONDITION METER
Fig. 10-13 TRAILER WIRING CONNECTOR
