Triple E 1999 Class C - Power Control Center (Converter)

10-2
CLASS C MOTORHOME
10.1.2 POWER CONTROL CENTER
This panel contains the fuses for the 12 volt
system, circuit breakers for the 120 volt
system and the converter that changes 120
volt power into 12 volt AC. Each system
handles different circuits in the motorhome.

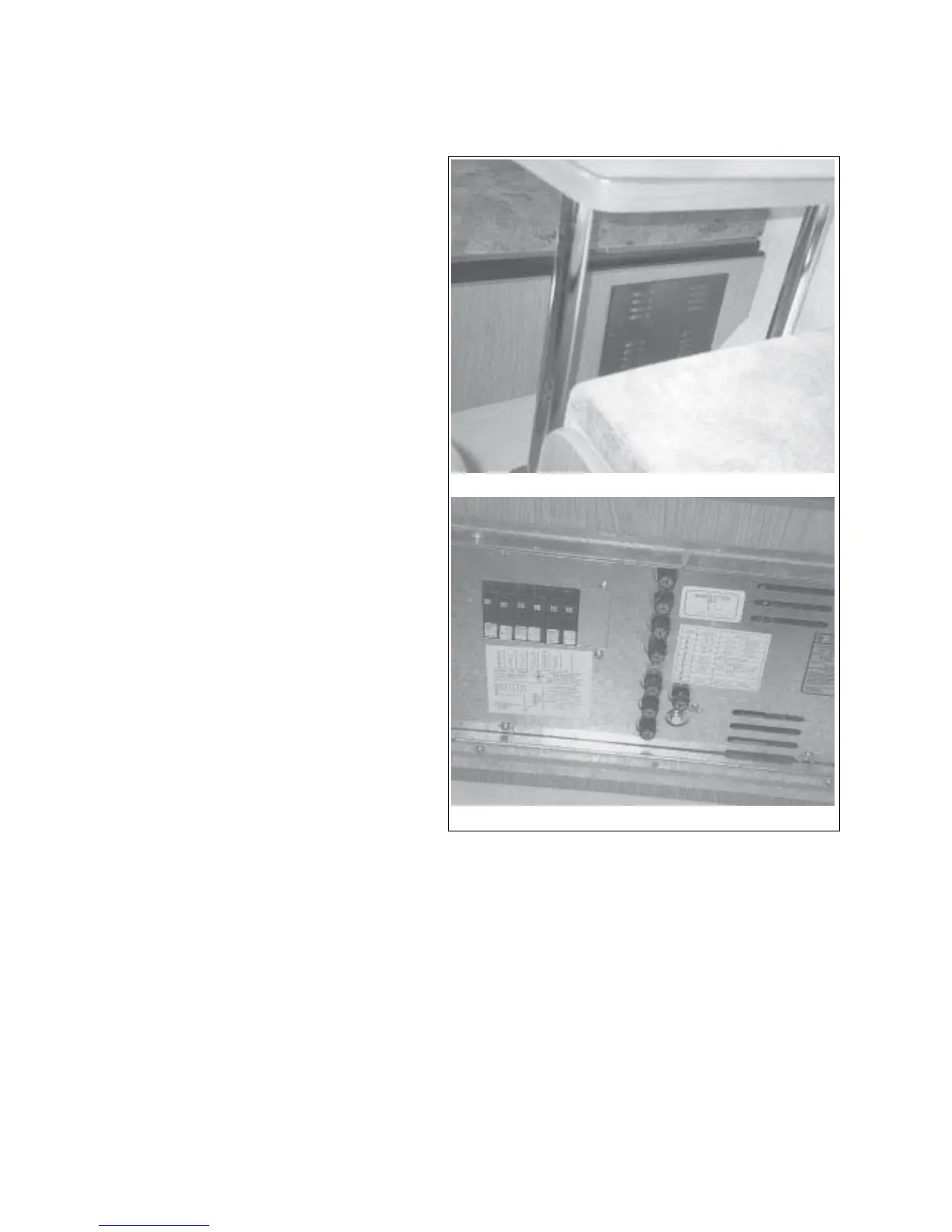

Under Dinette
Cover Removed
Fig. 10-3 POWER PANEL
