1.7 EXTERIOR FEATURE IDENTIFICATION
Composite model shown for illustration purposes only. Actual locations of features depends on coach
model and options.
*CAUTION
Be careful. These features may
become hot while water heater or
furnace are in use.
NOTE
Some equipment shown may be
optional.

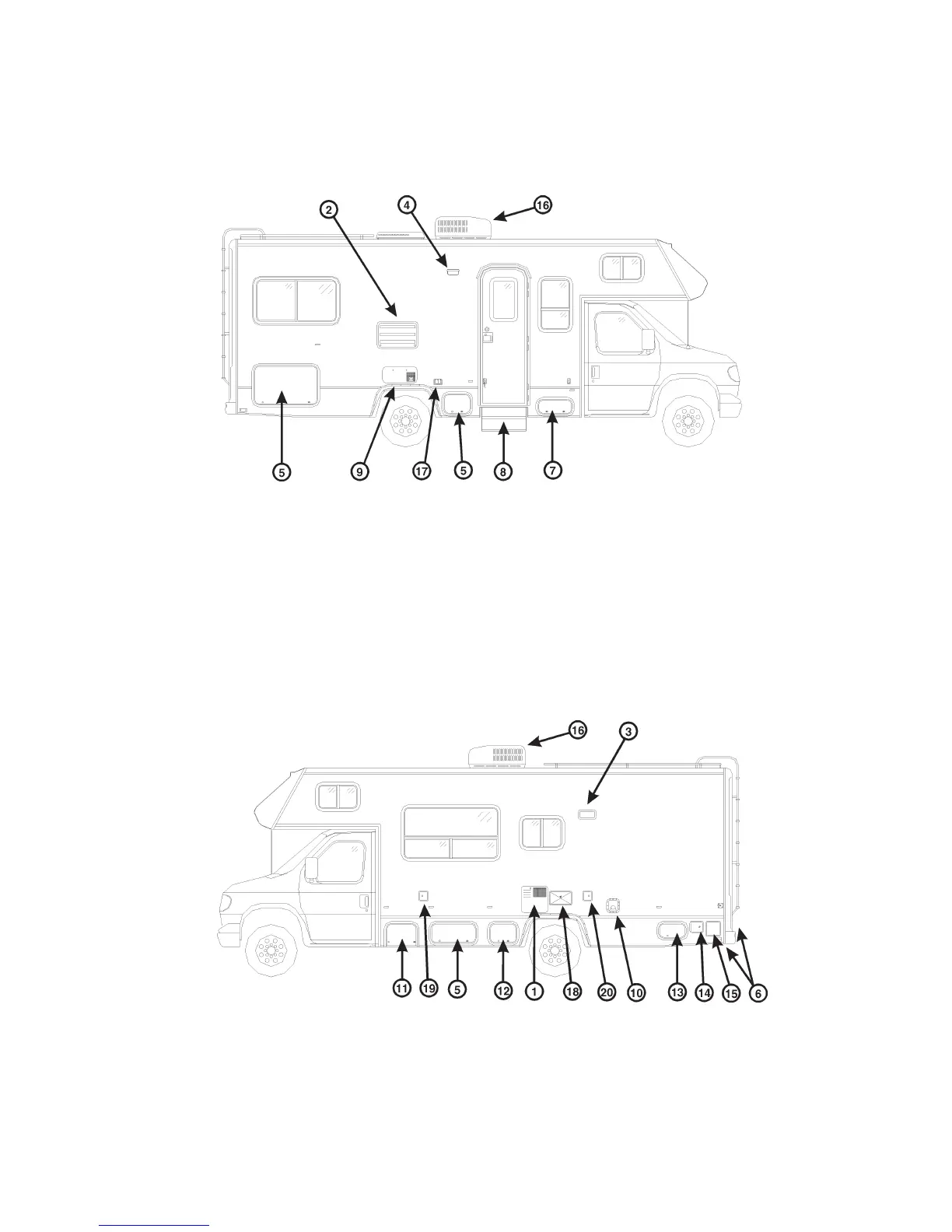

Fig. 1-4 EXTERIOR IDENTIFICATION (LEFT)
Fig. 1-3 EXTERIOR IDENTIFICATION (RIGHT)
1. Water Heater Service Access.
2. Refrigerator Service Access.
3. Range Hood Vent.
4. Porch Light.
5. Storage Compartment.
6. Spare Tire.
7. Propane Tank.
8. Entrance Step.
9. Furnace Service Access.
10. Fuel Tank Filler.
11. Battery Compartment.
12. Generator Compartment.
13. Holding Tank Drain Valves.
14. Sewer Hose Storage.
15. Shore Power Hookup.
16. Roof Air Conditioner.
17. Exterior 120 Volt Plug in.
18. Exterior Shower.
19. Fresh Water Tank Filler
20. City Water Hook-up
CLASS C MOTORHOME
