4.12.4 WATER SYSTEM ACCESS
The water system is accessed on the driver's side of the motorhome. Always park this side next to the
campground utilities for ease of hook-up.
1. System Access:
a. Discharge Hose Storage.
b. Black Water Tank Flush Fit-
ting.
c. Pressurized Water Fill Fitting.
d. Auxiliary Outside Shower.
e. Gravity Water Tank Fill Fitting.
f. Discharge Compartment (Drain
and Grey Water Valve).
2. Auxiliary Shower (Optional):
a. Hot Water:
This standard water tap controls
the flow of hot water to the
shower head. Turn clockwise to
turn off and counterclockwise to
turn on.
b. Cold Water:
This standard water tap controls
the flow of cold water to the
shower head. Turn clockwise to
turn off and counterclockwise to
turn on.
c. Shower Head:
This standard flexible hose
shower system is mounted in the
compartment. Turn the handle
and lift the head to use it. Turn
the collar on the head to change
the spray pattern.
CLASS C MOTORHOME

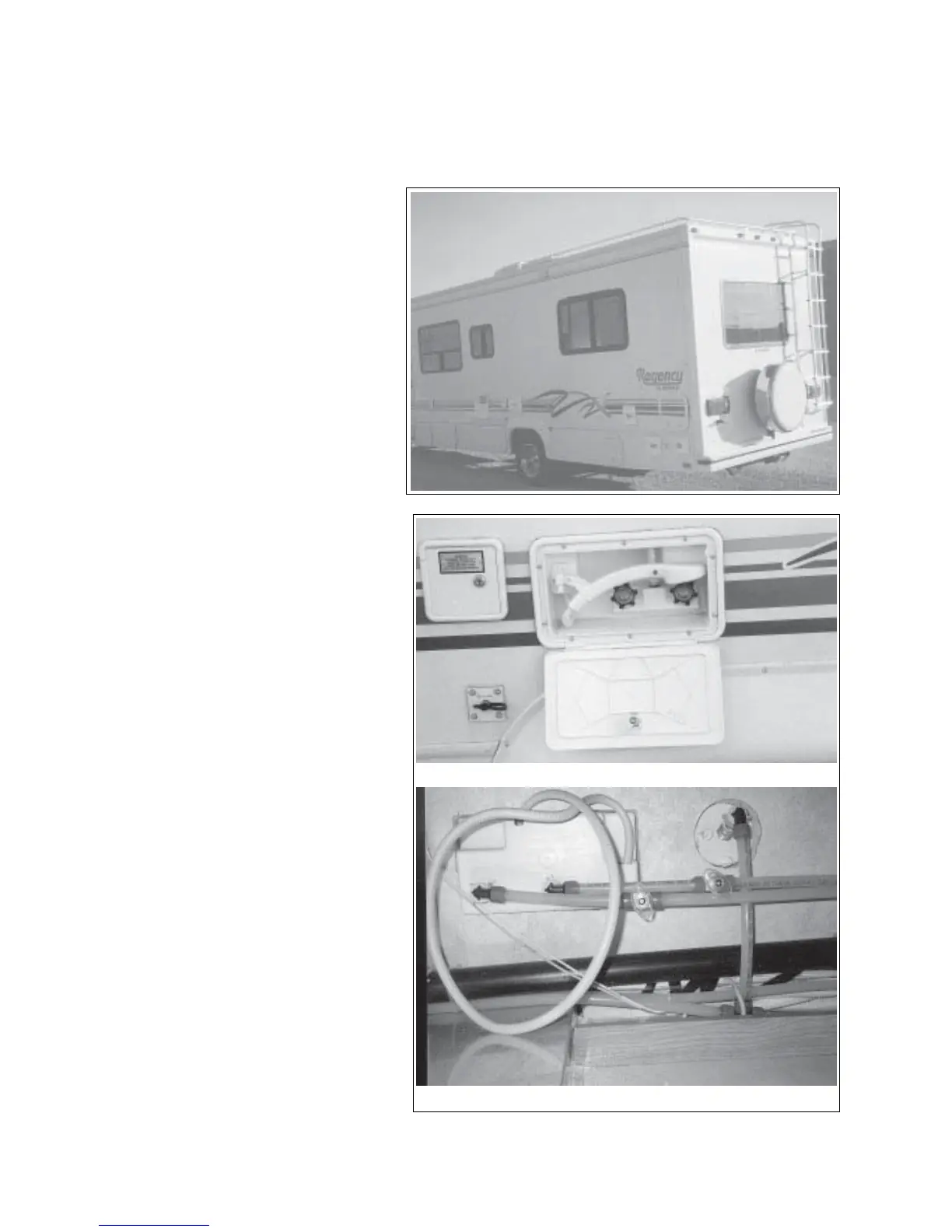

Fig. 4-21 SYSTEM ACCESS
Compartment
Valves
Fig. 4-22 AUXILIARY SHOWER
