Triple E EMPRESS SERIES - Slide-Out Room

4-25

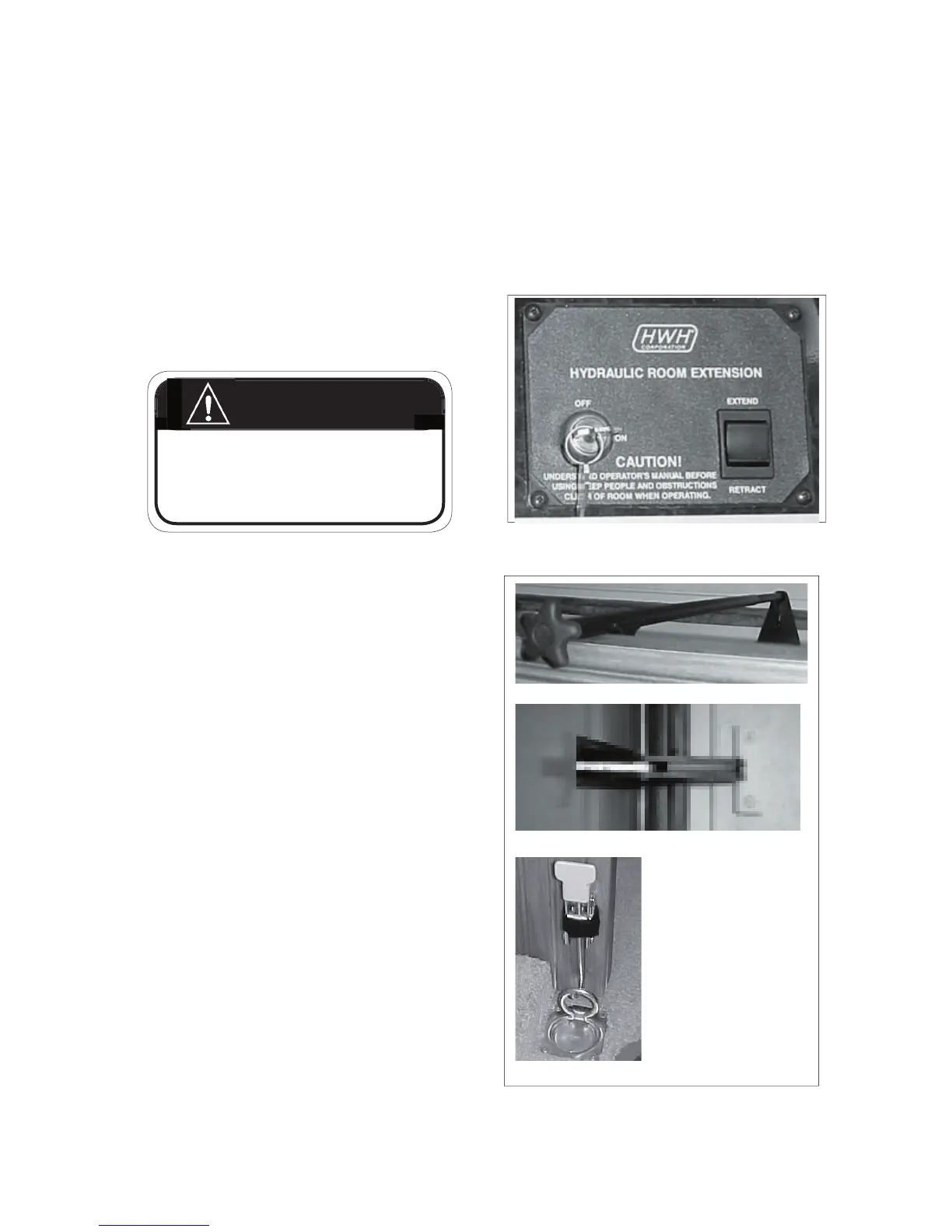

CONTROL PANEL
4.19 SLIDE-OUT ROOM
See the operating instructions in the Owner
Information Package before operating these
controls.
1.
Control Panel:
This panel controls the operation of the slide-
out room.
a.
Key Switch:
This key switch controls the power to
the pump that supplies pressurized oil to
the hydraulic cylinders that extend and
retract the room. Always turn the switch
off unless moving the slide-out room.
See section 9.3.1 for detailed information
about the slide out room operation.
b.
Extend/Retract:
This spring-loaded to center neutral
rocker switch controls the movement and
direction of the slide-out room. Depress
and hold the top portion of the switch to
extend the room. Depress and hold the
bottom portion of the switch to retract the
room. Release the switch for it to return
to centre and the room will stop moving.
2.
Slide-Out Room Locks:
The slide-out room assembly is designed
with locks that hold it securely in place for
transport. Full slide-out rooms have two
travel locks located on top of the room, one
IMPORTANT
Release the switch when the extend/
retract cylinders reach the end of their
stroke. The pressure of the hydraulic
circuit will change when the cylinders
reach the end of their strokes and the
pump sound will change. Release the
switch when the sound changes. For
units with automatic electric power
locks, hold the switch till the locks are
fully engaged.
CAUTION
Extend levelling jacks on to a fi rm
supporting base and level unit
before extending room.
Make sure travel locks are removed
before extending the slide-out.
Make sure travel locks are fastened se-
curely before moving the motorhome.
WARNING
a
b
Floor Mounted (Galley Slide)
TRAVEL LOCKS
Top Mounted
Automatic electric travel lock
on each end, Bedroom and Wardrobe slide-
outs have one travel lock located at the center
on top of the room, Galley slide-out rooms
have the travel locks located at the fl oor.
Turn clockwise to secure the travel lock and
counterclockwise to release it. Always secure
travel locks whenever room is retracted prior to
moving the unit. Rooms equipped with electric
power locks will lock and unlock automatically
when the slide out room is operated.
