EMPRESS

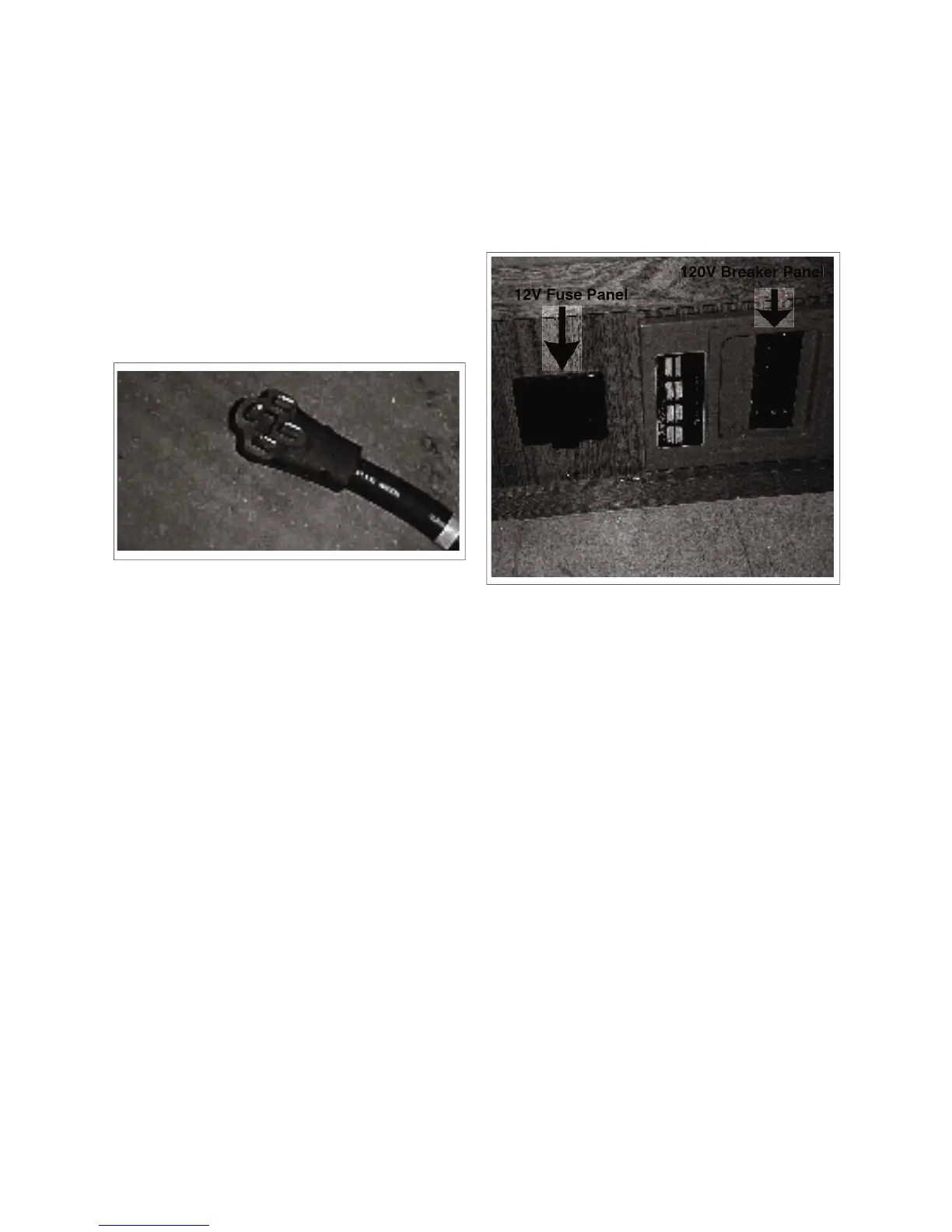

SHORELINE PLUG (Typical 50 Amp)
10.1.2 POWER CONTROL CENTER
This panel contains the fuses for the 12-volt sys-
tem, circuit breakers for the 120-volt system and
the inverter that changes 12-volt power into 120-
volt AC. Each system handles different circuits in
The 50-amp service allows you to run more equipment
such as both air conditioners at the same time, without
tripping the circuit breakers.
IMPORTANT
You will fi nd that not all campgrounds are equipped
with 50-amp service. In that case, you will need
an adapter plug to connect to the standard 30-
amp service. Depending on which system you are
connected to the system will automatically select
either the 30-amp or the 50-amp setting. This will
prevent overload tripping of the circuit breaker.
