Tripp Lite NetCommander B070-016-19-IP2 User Manual

14
1. Product Overview
7. There are two LAN sections in the Device tab, one for IPv4 and one for IPv6. For IPv4, you have the options of automatically assigning
an address via DHCP server (default) and manually assigning an address. For IPv6, you have the options of automatically assigning an
address via DHCP server (default), automatically assigning a stateless address, manually assigning an address, or disabling IPv6
altogether. Make the desired selections, depending on how you wish the IP address to be assigned.
8. Populate the fields in the IPv4 or IPv6 sections with the desired network information.
9. Click the Save icon in the toolbar above the Configuration menu tabs to save the network settings. Upon clicking Save, you will be
prompted to reboot the KVM to finish the implementation of the new Device settings. Click Yes to proceed.
Troubleshooting
Below is a list of tips that may help resolve common issues when accessing the KVM Interface:
• Verify that file downloads are enabled in the browser. If a supported JRE has not been installed, downloading the necessary file is
required.
• Clear the Java Web Start cache prior to accessing the KVM Web Configuration Interface. To clear the cache, open a command
prompt, type the following command, then press the Enter key: javaws -unistall
• For troubleshooting purposes, the Interface can be opened directly through the browser’s text field. Type the following command, then
press the Enter key: https://<<IP address of the KVM Device>>/targets.jnlp
• Ensure the Java cache and JavaScript are enabled.
• Uninstall older versions of Java or verify they cannot be loaded by managing the Java Runtime versions from the Java Control Panel.
• Enter the KVM Interface’s URL in the Java Control Panel’s Exception Site List, as described above.
• Changing Java Control Panel’s advanced settings may compromise the Interface. Consider resetting to defaults if they have been
changed.

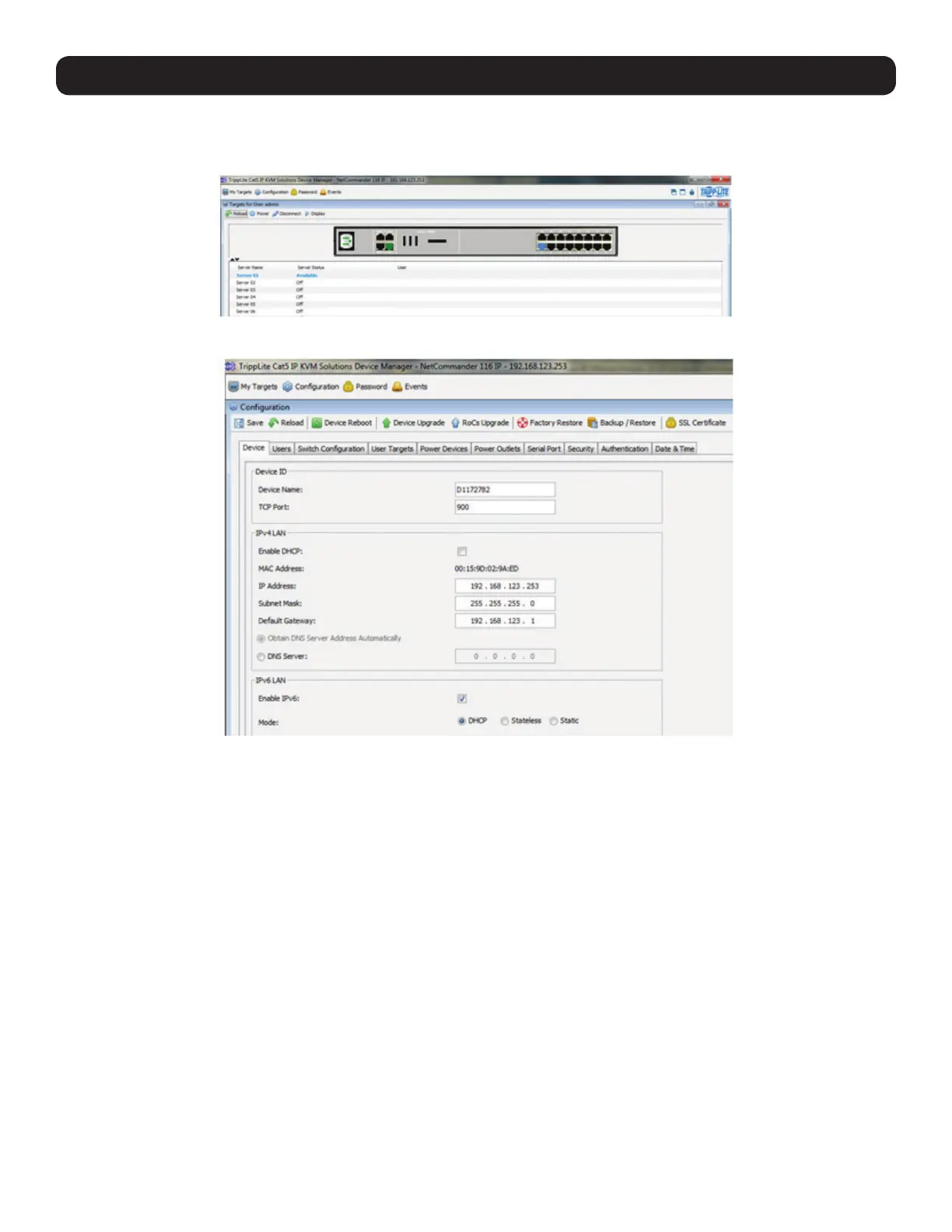

6. Click on the Configuration icon at the top of the screen to pull up the KVM’s Configuration screen. It opens with the Device tab
displayed.
5. Enter in your username and password, and press Enter. If this is the first time you are accessing the KVM, enter in the default
username (admin) and password (access). The My Targets page of the Web Configuration Interface opens, showing the state of your
unit, and displaying all your available Target Servers.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
