Tripp Lite NetCommander B070-016-19-IP2 User Manual

25
2. Web Configuration Interface

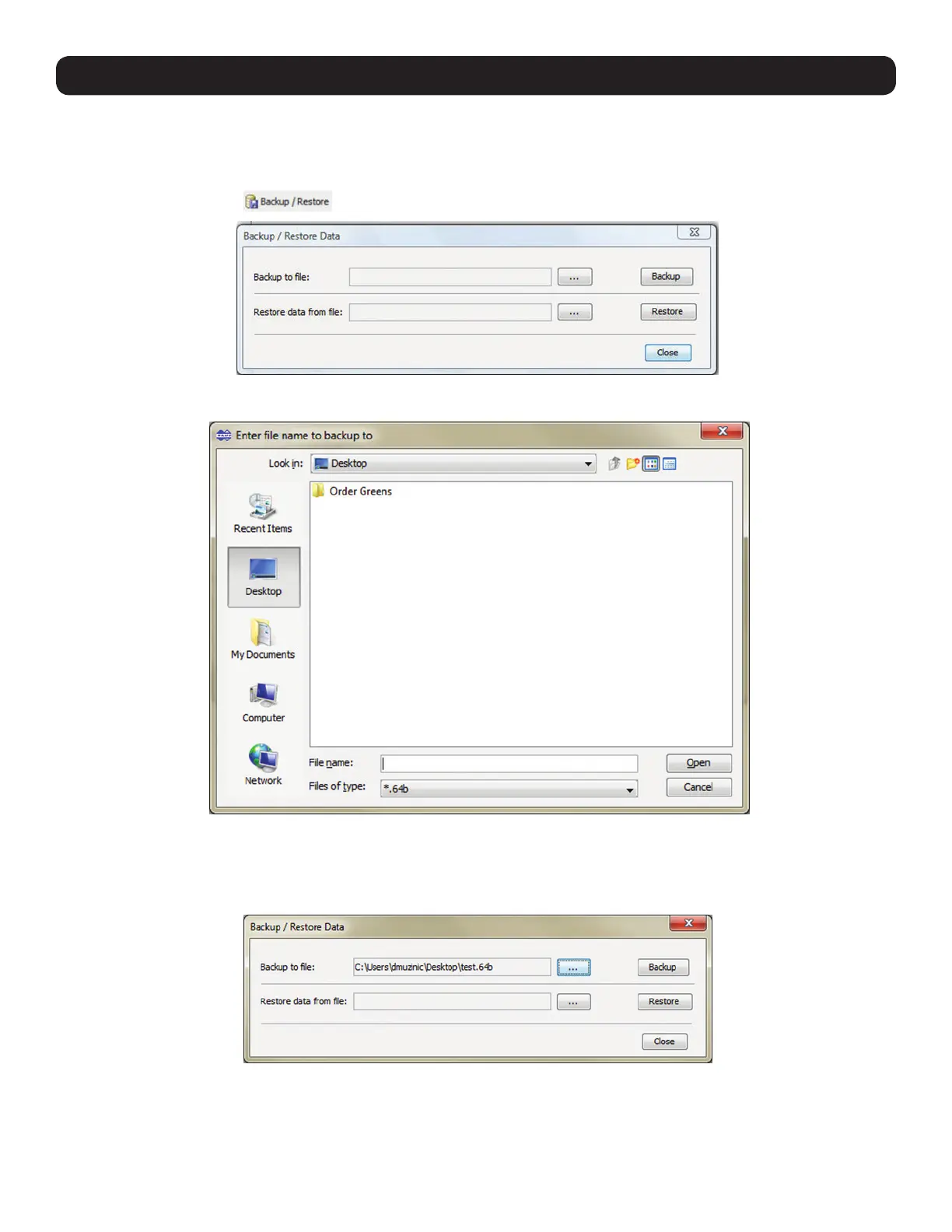

2.4.2 Backup/Restore
Using the Backup/Restore function in the Configuration sections toolbar, you can back up all configuration data and restore it at a later date.
To back up data:
1. In the toolbar, click on the icon. The Backup/Restore Data page appears.
2. In the Backup to file field, click the Browse button to open up the Enter file name to backup to screen.
3. Navigate to the location on your computer where you want to save the backup file, and then give it an appropriate file name and click
the Open button. Backup files are saved in the .64b format.
4. The Backup/Restore Data screen reappears with the newly saved location and file name populating the Backup to file field. Click on the
Backup button.
5. Upon completion of the backup, click the Close button to close the Backup/Restore Data screen.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
