Tripp Lite NetCommander B070-016-19-IP2 User Manual

57
5. Serial Port Pinout
Note: When connecting a Cisco device, use Cisco rolled cable.
Serial Port 1:
Pin 1: RTS
Pin 2: DTR
Pin 3: TX
Pin 4: GND
Pin 5: GND
Pin 6: RX
Pin 7: DSR (pins 7 and pin 2 are shorted inside the unit)
Pin 8: CTS
Serial Port 2:
Pin 1: RTS
Pin 2: DTR
Pin 3: TX
Pin 4: GND
Pin 5: GND
Pin 6: RX
Pin 7: DSR
Pin 8: CTS
6. Security Certificate Installation
When remotely logging in to the KVM, you may get security warnings from your Web browser and/or Java pop-up stating that the connection
to the website cannot be trusted. This occurs because the KVM’s security certificate is not among the browser and/or Java control panel’s
list of trusted certificates. To add the certificate to the list of trusted certificates, follow the steps in this section. Once installed, the security
warning will no longer appear.
Note: If the IP address of the KVM switch is changed, you will need to reinstall the security certificate.
Browser Security
The following steps apply to Internet Explorer 9, but may also be used with other Web browsers.
Note: You may need to run Internet Explorer as an Administrator to install the security certificate.

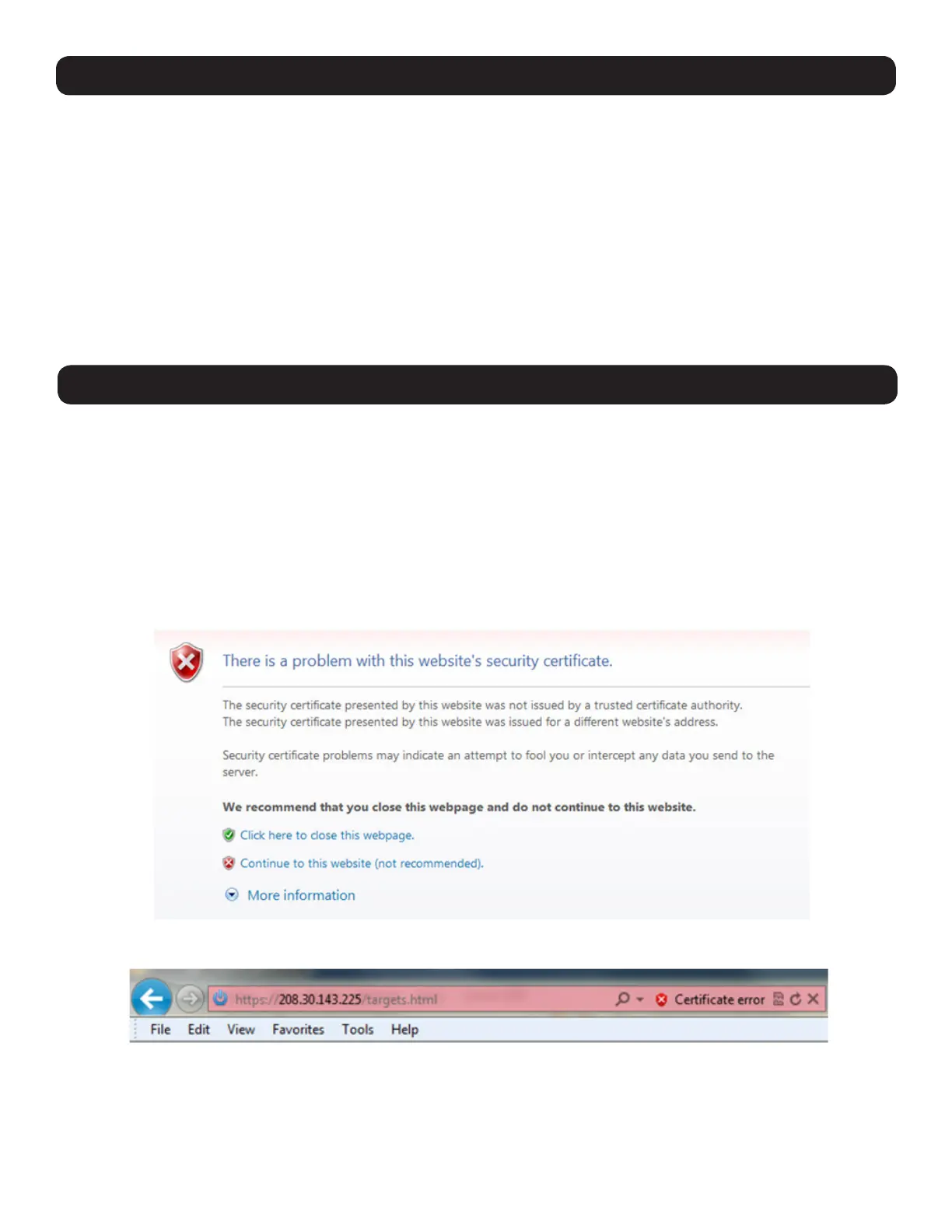

1. Upon logging into the KVM, a screen will appear stating that there is a problem with the website’s security certificate. Click on Continue
to this website (not recommended).
2. A URL bar will appear with a Certificate error message.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
