Tripp Lite NetCommander B070-016-19-IP2 User Manual

43
3. Conducting a Remote Session

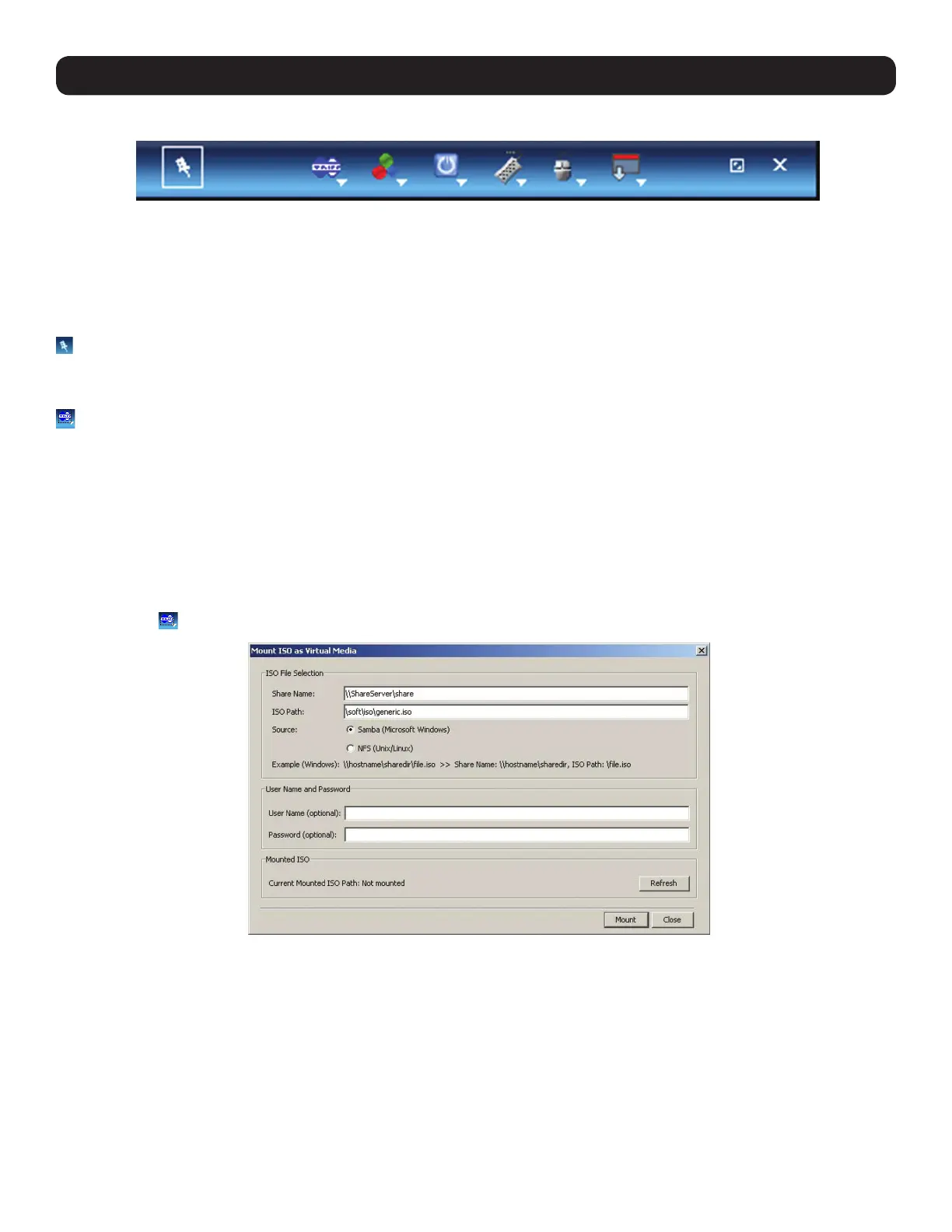

3.2 Remote Session Toolbar
The NetCommander IP provides a toolbar that allows a remote session to be manipulated. The features on the toolbar allow you to toggle
between accessible ports, adjust the video settings of the remote session, align the local and remote mouse pointers, etc.. When a remote
session is initiated, the toolbar is displayed briefly in the top-center of the screen, and then collapses to display only a thin bar. To expand
the toolbar, simply move the mouse pointer over the blue bar at the top-center of the screen. The following sections describe the features
available in the remote session toolbar, and how they are used.
3.2.1 Pin Toolbar
– Clicking on the Pin Toolbar icon will toggle between displaying the toolbar constantly and allowing it to disappear after a few seconds.
By default, it disappears after a few seconds.
3.2.2 Session
– Clicking on the Session icon will display a drop-down list of four options; Mount ISO, Unmount ISO, Session Profile, and About.
• Mount ISO – The Mount ISO feature allows you to mount an ISO file to the Target Server as virtual media.
Note:
1. Virtual Media data transfer rates up to 12Mbps are supported. To achieve data transfer rates up to 12Mbps, a B078-101-USB2 must be used.
2. A B078-101-USB-1 can be used to provide Virtual Media support, but only at speeds up to 1Mbps. B078-101-USB and B078-101-PS2 SIUs are not
compatible with Virtual Medial.
3. The ISO file you are mounting must be located in a Shared Folder of a Samba or NFS file server which is on the same network that the
NetCommander IP is connected to.
To mount the ISO as virtual media:
1. Click on the icon in the remote session toolbar, and choose the Mount ISO option. The Mount ISO window appears.
2. In the Share Name, type in the share name of the ISO file from your Samba or NFS file server. For example, if the desired ISO file has
the path \\hostname\sharedr\file.iso, the Share Name that you should type is: \\hostname\sharedr.
3. In the ISO Path field, type the direct path to the ISO file. In the example of the previous step, the ISO Path is \file.iso.
4. Select one of the following supported file sharing methods:
• Samba (Microsoft Windows)
• NFS (Unix)
5. For secured file sharing type in a User Name and Password.
6. Click the Mount button. The ISO file is mounted onto the server.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
