Tripp Lite NetCommander B070-016-19-IP2 User Manual

62
6. Security Certificate Installation
6. Click the Next button, followed by the Finish button on the next page to complete export of the KVM certificate.

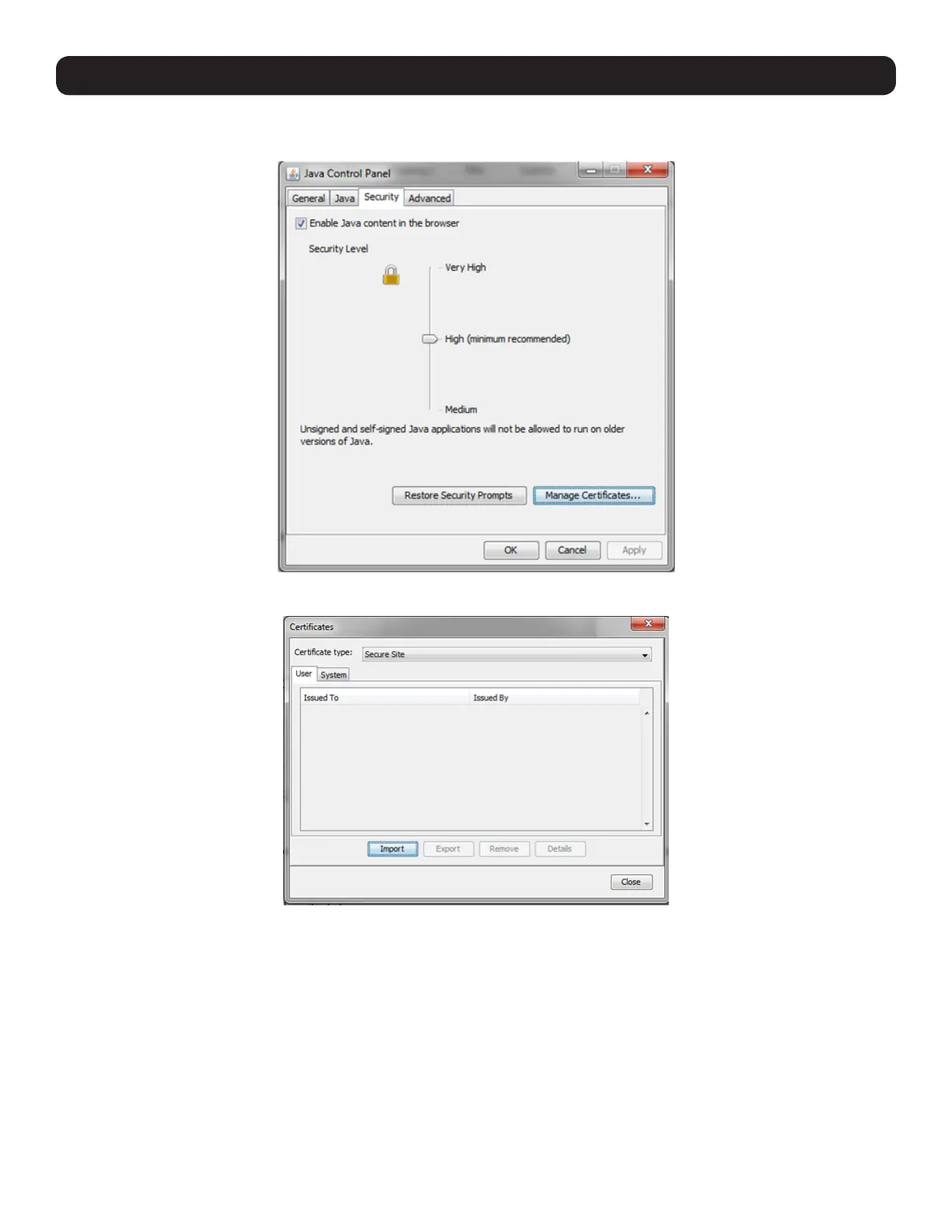

7. Navigate to your computer’s Control Panel window and open the Java Control Panel.
8. Click on the Security tab, then click the Manage Certificates button.
9. In the Certificate type drop-down menu at the top of the screen, select the Secure Site option.
10. Click the Import button and navigate to the location where the KVM certificate file is saved. Click OK to add the KVM certificate to the
Secure Sites list to complete installation.

Tripp Lite NetCommander B070-016-19-IP2 Specifications

General

Display diagonal	19 \
Display resolution	1280 x 1024 pixels
On Screen Display (OSD)	Yes
Product color	Black
Country of origin	Taiwan
Security algorithms	128-bit AES, 802.1x RADIUS, HTTPS
Height (in Rack Units)	1
KVM switch ports quantity	16
Operating temperature (T-T)	-4 - 140 °F
Sustainability certificates	RoHS
Certification	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Input current	1.2/0.7 A
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Interface	PS/2; USB; VGA
Storage temperature (T-T)	-20 - 60 °C
Package depth	891.5 mm
Package width	591.8 mm
Package height	149.9 mm
Package weight	19780 g
Master (outer) case width	595.1 mm
Master (outer) case height	150.1 mm
Master (outer) case length	833.9 mm
Master (outer) case weight	17960 g
Quantity per master (outer) case	1 pc(s)

Weight and Dimensions

Depth	692.4 mm
Width	477.3 mm
Height	43.4 mm
Weight	12910 g
