Triumph Speed Triple R Handbook

84
Maintenance and Adjustment

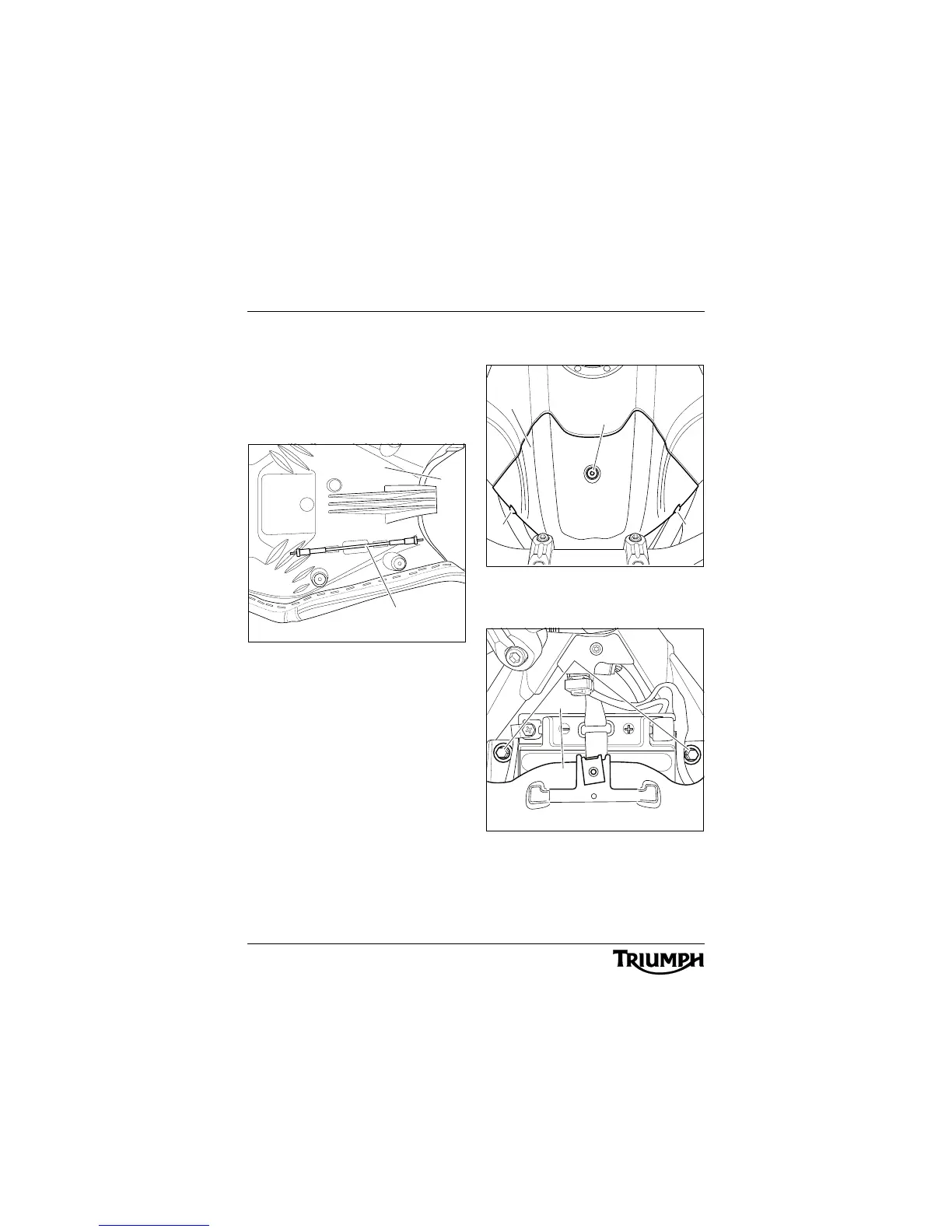

Fuel Tank
Raising
Remove the seat (see page 49) and remove
the fuel tank prop from its location on the
seat base. Store the seat as described on
page 49.
1. S e a t
2. Fuel tank prop
Release the three fixings and remove the
front panel from the fuel tank.
1. Front panel
2. Fixings
Remove the front fixings for the fuel tank.
1. F i x i n g s
2. Fuel tank
1
cgfp 1
2
cgfo
2
1
22
cgff
2
1

Triumph Speed Triple R Specifications

General

Engine Capacity	1050 cc
Transmission	6-speed
Seat Height	825 mm
Fuel System	Multipoint sequential electronic fuel injection
Engine Type	Liquid-cooled, 12-valve, inline 3-cylinder
Power	148 hp (110 kW) @ 10, 500 rpm
Torque	117 Nm at 7, 150 rpm
Front Suspension	Öhlins 43mm NIX30 upside down forks with adjustable preload, rebound and compression damping
Rear Suspension	Öhlins TTX36 monoshock, fully adjustable
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial calipers
Fuel Tank Capacity	15.5 litres
