Triumph Speed Triple R Handbook

87
Maintenance and Adjustment
If there is an incorrect amount of free play, Triumph recommends that you have adjustments
made by your authorised Triumph dealer. However, in an emergency, throttle adjustment may
be made as follows:

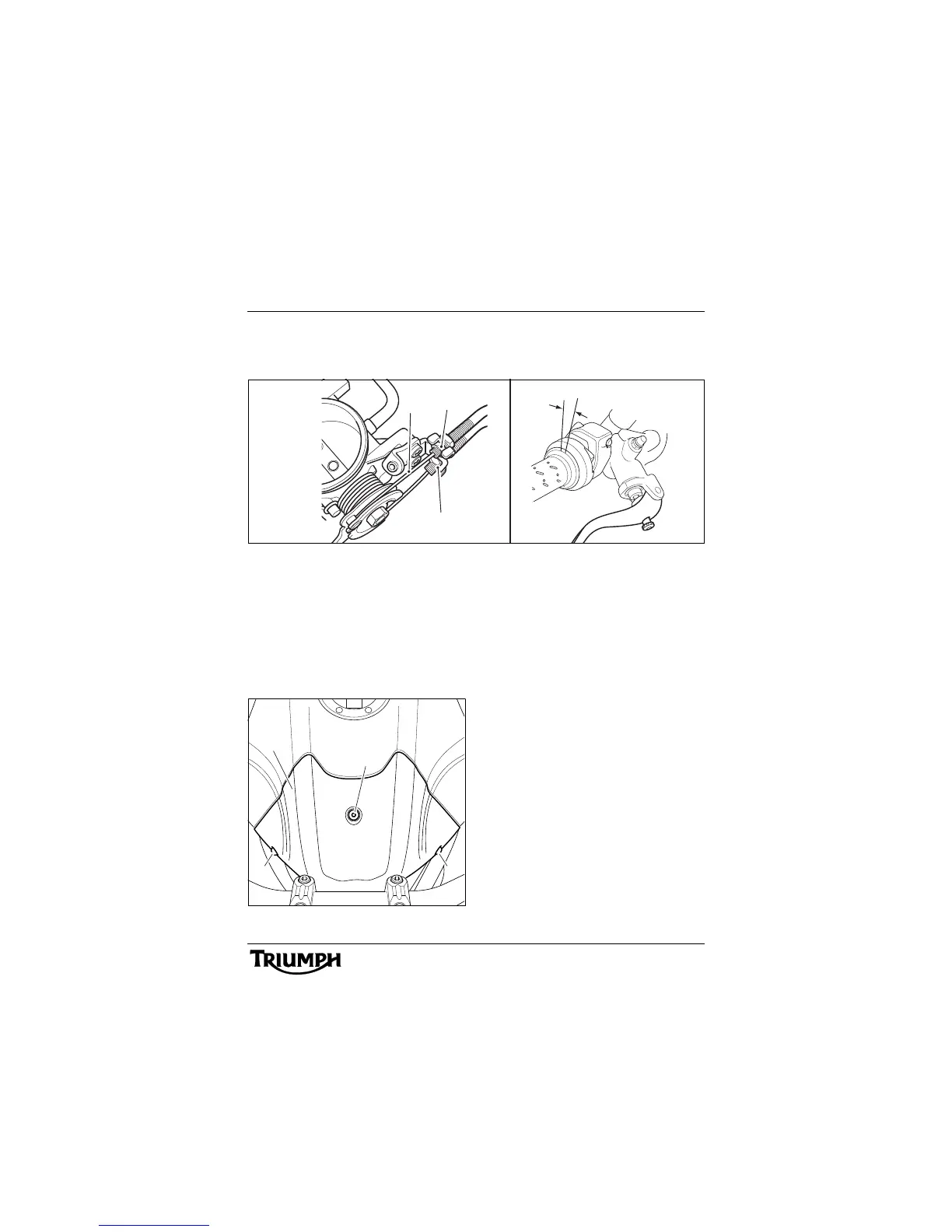

1. Opening cable adjuster
2. Closing cable adjuster
3. Closing cable – free play
measurement point
4. Opening cable – free play
measurement point
Remove the seat (see page 49).
Release the three fixings and remove the
front panel from the fuel tank.
1. Front panel
2. Fixings
Disconnect the battery, negative (black) lead
first.
Remove the fuel tank.
Release the locknuts on the 'opening' cable
adjusters.
Rotate the 'opening' cable adjuster at the
twist grip end such that it has an equal
amount of adjustment in each direction.
Rotate the 'opening' cable adjuster at the
throttle body end of the cable to give
2 - 3 mm of play at the twist grip. Tighten the
locknut to 2.5 Nm.
Make any minor adjustments as necessary to
give 2 - 3 mm of play using the adjuster near
the twist grip end of the cable. Tighten the
locknut.
With the throttle fully closed, ensure that
there is 2 - 3 mm of free play in the 'closing'
cable at the throttle cam attached to the
throttle bodies. If necessary, adjust at the
throttle body end in the same way as the
'opening' cable, until 2 - 3 mm of play is
present.
4
1
2
3
cgfo
2
1
22

Triumph Speed Triple R Specifications

General

Engine Capacity	1050 cc
Transmission	6-speed
Seat Height	825 mm
Fuel System	Multipoint sequential electronic fuel injection
Engine Type	Liquid-cooled, 12-valve, inline 3-cylinder
Power	148 hp (110 kW) @ 10, 500 rpm
Torque	117 Nm at 7, 150 rpm
Front Suspension	Öhlins 43mm NIX30 upside down forks with adjustable preload, rebound and compression damping
Rear Suspension	Öhlins TTX36 monoshock, fully adjustable
Front Brakes	Twin 320mm floating discs, Brembo 4-piston radial calipers
Fuel Tank Capacity	15.5 litres
