Maintenance
116
Thruxton and Thruxton R
Place the battery in the battery case.
Secure with the battery strap and make
sure the USB port socket is reinstalled.
Reconnect the battery, positive lead
(identified with red tape) first.
Apply a light coat of grease to the
terminals to prevent corrosion.
Cover the positive terminal with the
protective cap.
Re-install the seat (see
page56
).
Fuse Box
citn
9
1
2
3
4
56
7
8

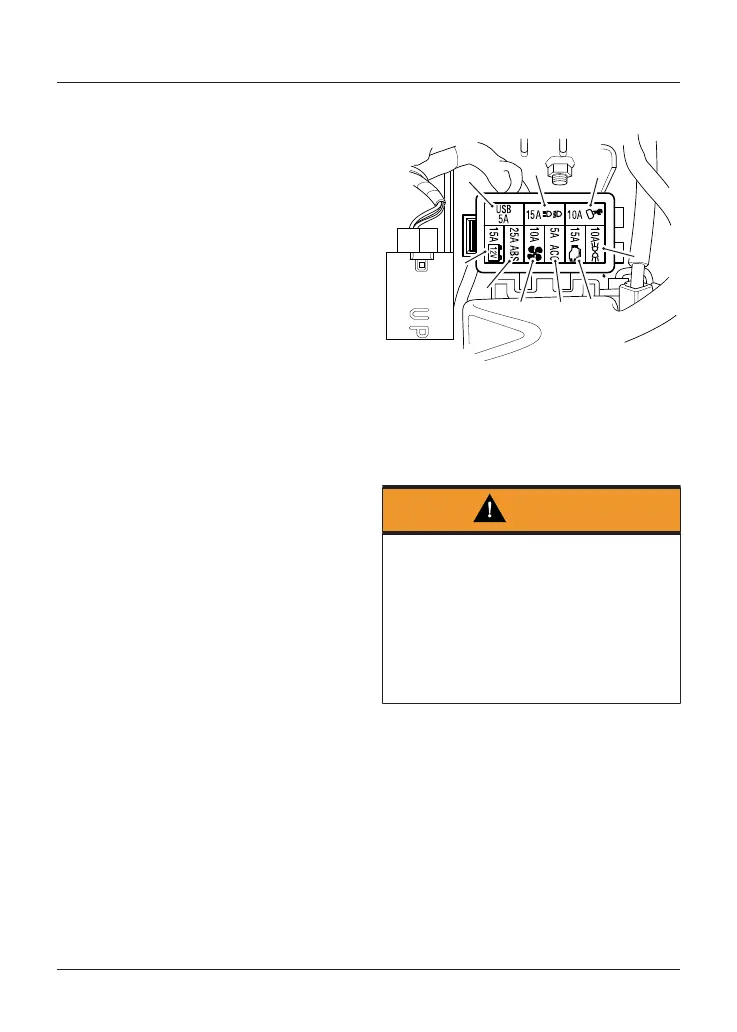

1. Fuse box
The fuse box is located underneath the
seat.
To allow access to the fuse box, the seat
must be removed (see
page56
).
Warning
Always replace blown fuses with new
ones of the correct rating (as specified
on the fuse box cover) and never use a
fuse of higher rating.
Use of an incorrect fuse could lead to
an electrical problem, resulting in
motorcycle damage, loss of motorcycle
control and an accident.
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown
fuse, use the following table to establish
which fuse has blown.
