Triumph T120 - Instrument Panel Layout

General information
25

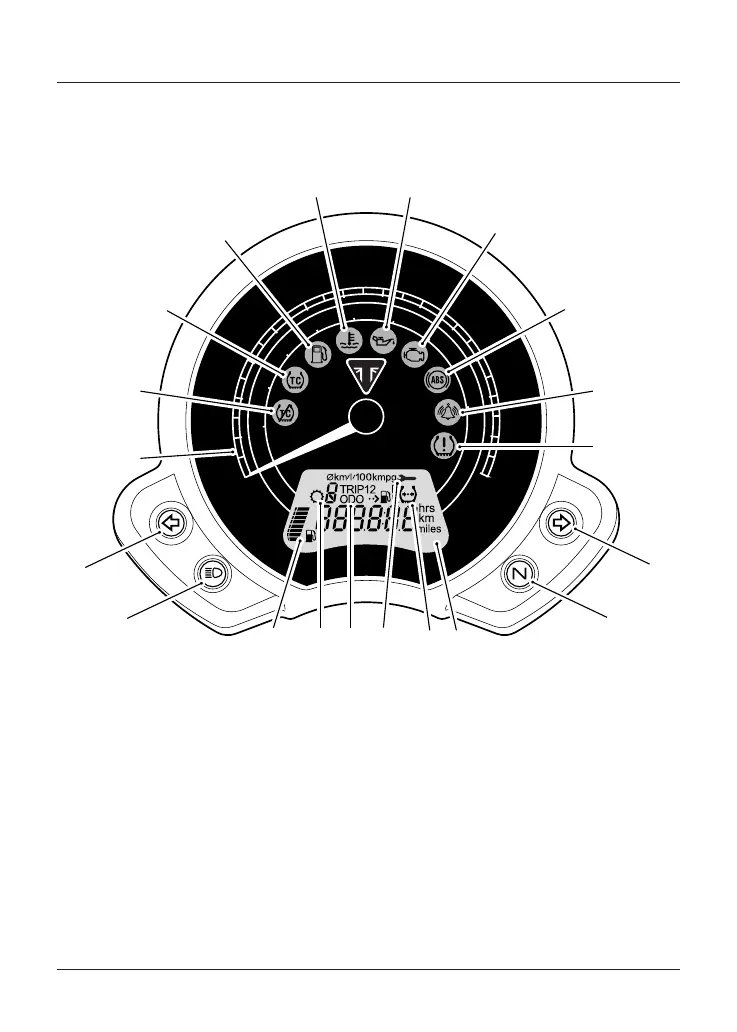

Instrument Panel Layout
Street Twin
10
20
30
40
50
60
70
80
90
1
00
110
120
1
30
0
0
20
40
60
80
100
1
20
1
40
1
60
180
200
19
18 17 16 15
11
10
9
8
7
5
4
3
2
1
12
14 13
20
6
MPH
km/h
1. Speedometer
2. Traction Control (TC) disabled warning
light
3. Traction Control (TC) indicator light
4. Low fuel level indicator light
5. High coolant temperature warning light
6. Low oil pressure warning light
7. Engine management Malfunction
Indicator Light (MIL)
8. ABS (Anti-Lock Brake System) warning
light
9. Alarm/Immobilizer status indicator
light (alarm is an accessory kit)
10. Tire pressure warning light (if Tire
Pressure Monitoring System (TPMS) is
equipped)
11. Right hand turn signal light
12. Neutral indicator light
13. Information display screen
14. Tire pressure display (if TPMS is
equipped)
15. Service interval indicator
16. Odometer/Trip meter/Clock
17. Gear position indicator
18. Fuel gauge
19. High beam indicator light
20. Left hand turn signal light
