110
Maintenance and Adjustment
For extended periods of storage (beyond two
weeks) the battery should be removed from
the motorcycle and kept charged using a
Triumph approved maintenance charger.
Similarly, should the battery charge fall to a
level where it will not start the motorcycle,
remove the battery from the motorcycle
before charging.
Battery Installation
Place the battery in the battery case.
Refit the battery clamp and tighten its
fasteners to 27 lbf in (3 Nm).
Reconnect the battery, positive lead
(Identified with red tape) first.
Apply a light coat of grease to the terminals
to prevent corrosion.
Cover the positive terminal with the
protective cap.
Refit the rider’s seat (see page 47).

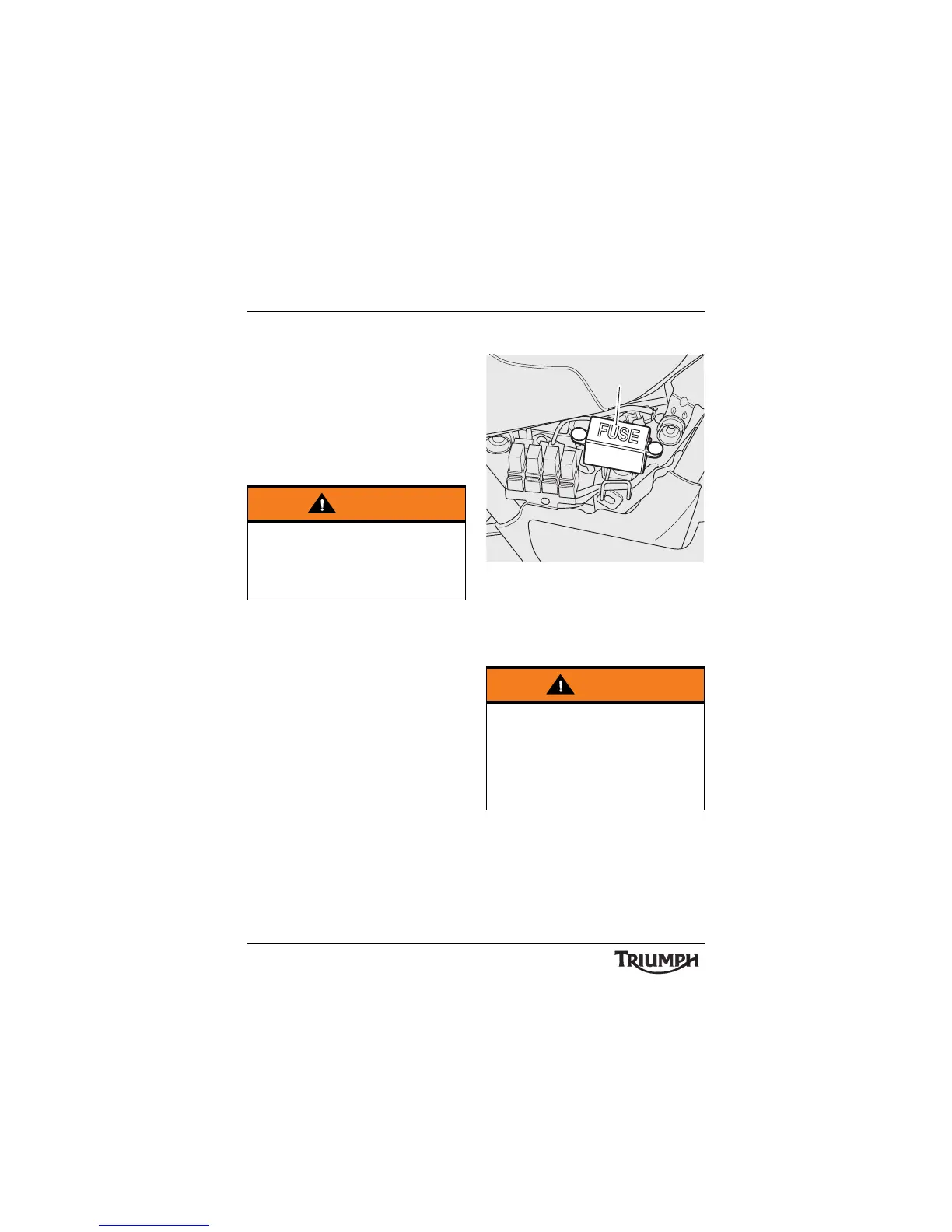

Fuse Box
1. F u s e b ox
The fuse box is located behind the right hand
side panel.
To allow access to the fuse box, the right
hand side panel must be removed (see
page 44).
Fuse Identification
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the following tables to establish which
fuse has blown.
Ensure that the battery terminals do not
touch the motorcycle frame as this may
cause a short circuit or spark, which would
ignite battery gases causing a risk of
personal injury.
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
