General Information

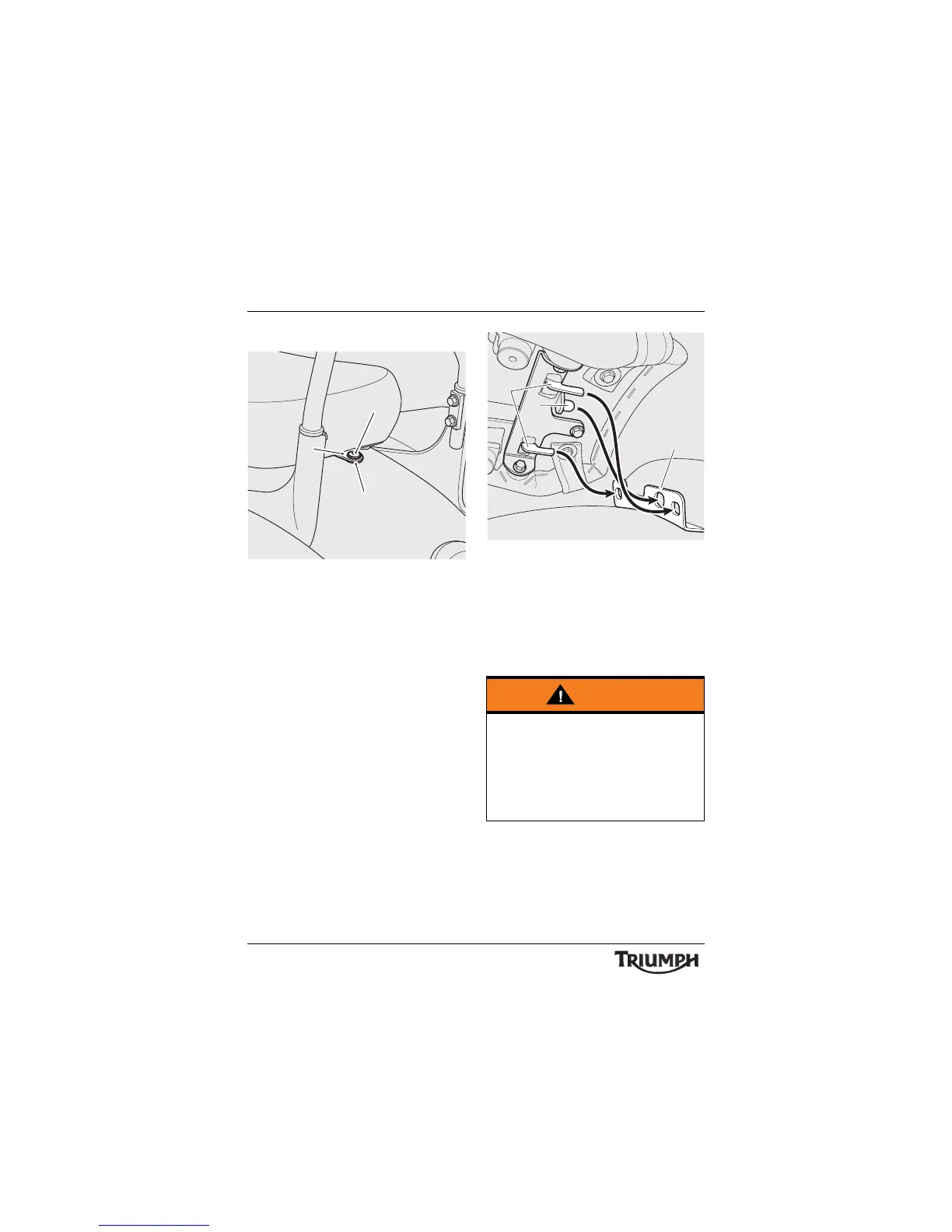

Pillion Seat Removal
1. Pillion seat fastener
2. Mounting bracket
3. Rubber washer
Note:
• Note the position of the rubber
washer between the pillion seat
mounting bracket and the rear
fender.
To remove the pillion seat, remove the rear
fastener using the Allen key provided in the
tool kit (see page 44). Lift the seat up at the
back for complete removal from the
motorcycle. Collect the rubber washer.
1. Pillion seat hooks
2. Location peg
3. Pillion seat bracket
To refit the seat, engage the seat’s two hooks
and location pin into the bracket behind the
rider’s seat. Install the rubber washer and
fastener as noted for removal. Tighten the
fastener to 7lbfft (9Nm).
To prevent detachment of the seat during
riding, after fitting always grasp the seat
and pull firmly upwards. If the seat is not
correctly secured it may detach from the
motorcycle. A loose or detached seat could
cause loss of motorcycle control and an
accident.
