General Information

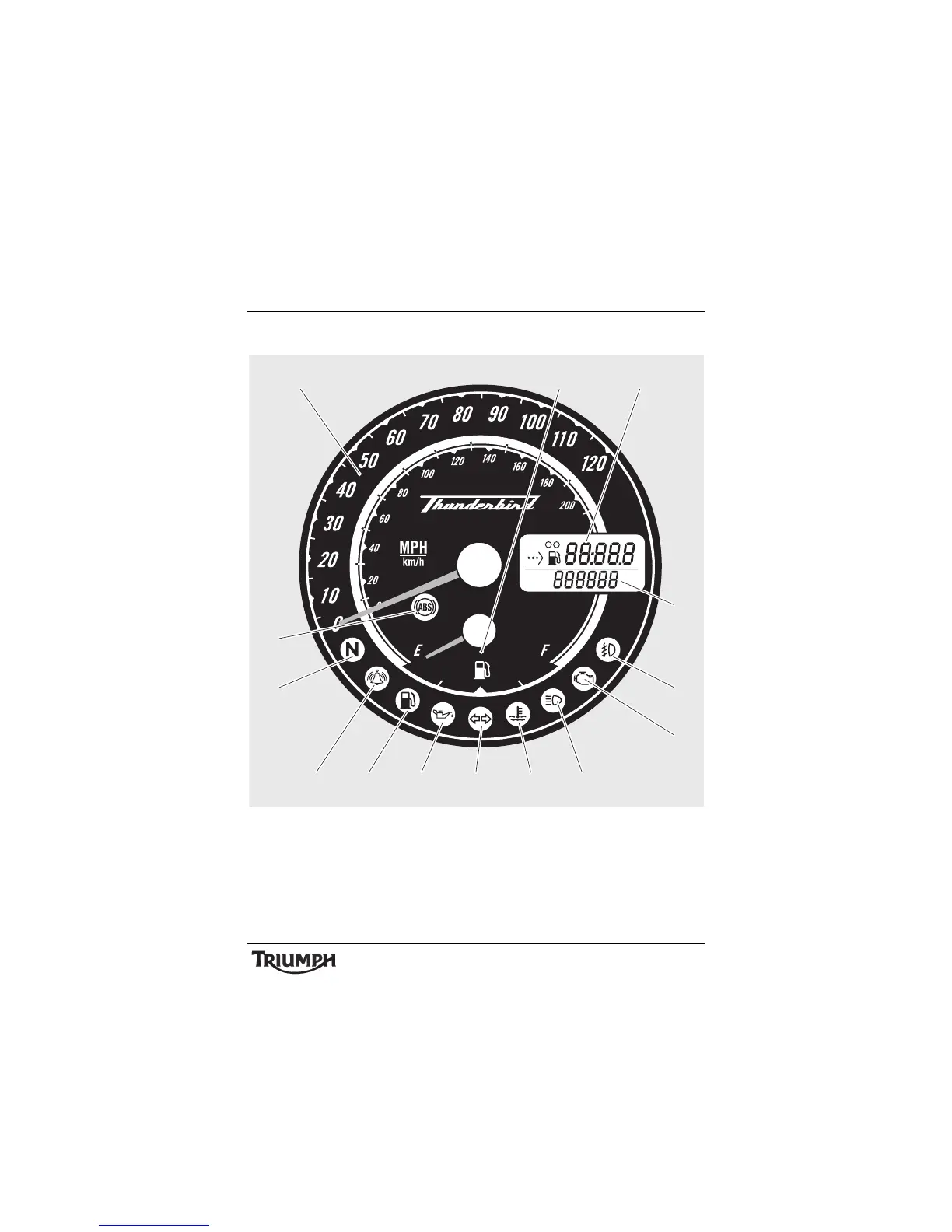

Instrument Panel Layout
1. Speedometer
2. Fuel gauge
3. Range to empty/Trip meter/Clock
4. Odometer
5. Auxiliary lamp indicator light
6. Engine management malfunction
indicator light
7. High beam indicator light
8. High coolant temperature warning
light
9. Turn signal light
10.Low oil pressure warning light
11. Low fuel level indicator light
12.Alarm/immobilizer status indicator
light (alarm is an accessory)
13.Neutral indicator light
14 . A B S w a r n i n g l i g h t
TRIP
1
2
1
cdga
2 3
4
513
14
6
7
89101112
