General Information

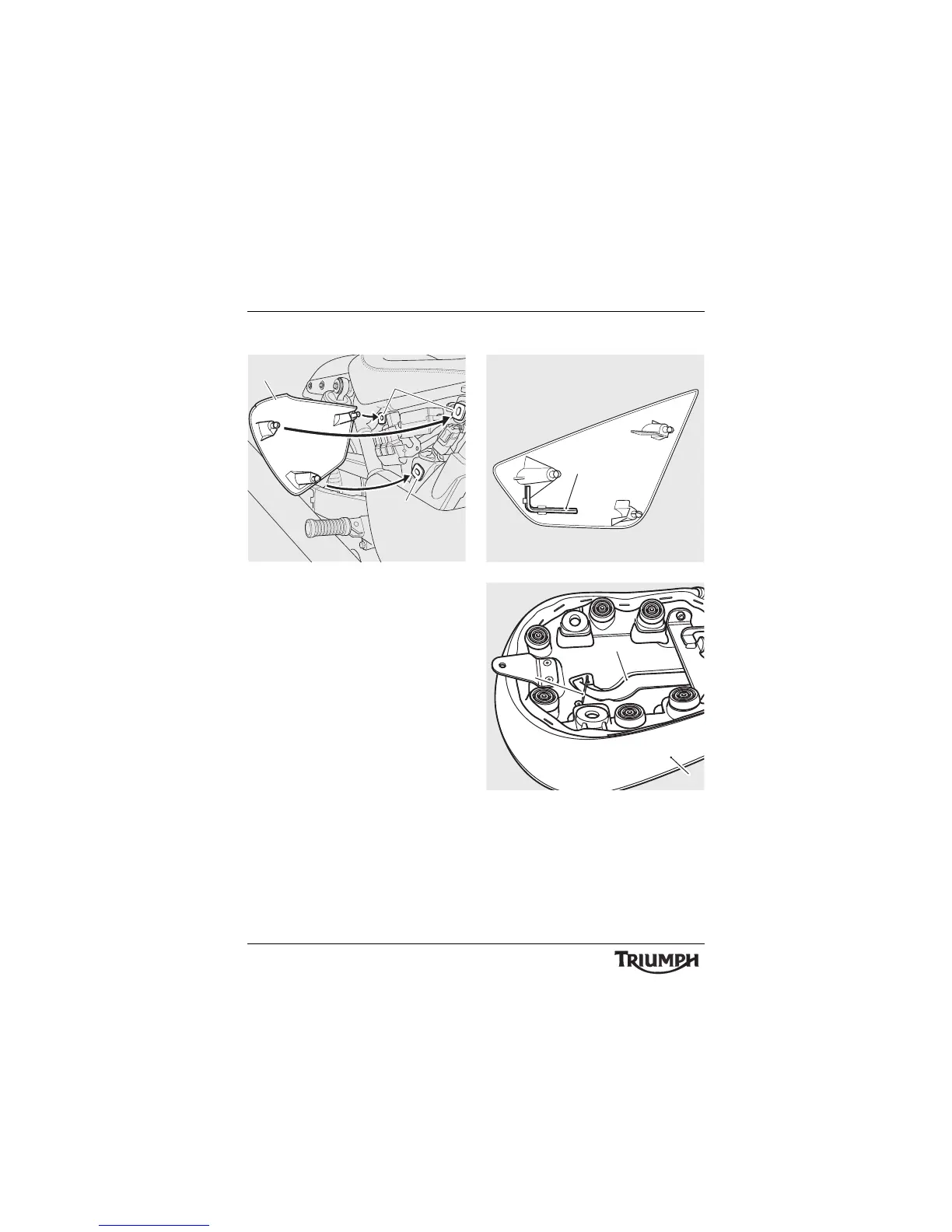

Side Panels
1. Side panel (right hand shown)
2. Grommets
Side panel removal is required to access the
fuse box and the tool kit Allen key.
To remove either side panel, grasp the panel
firmly in both hands pull the panel away from
the motorcycle until it clears the three
retaining grommets (leaving the grommets in
place).
To refit, position the three locating dowels to
the grommets, then press firmly to secure the
panel.
Ensure the panel is correctly located over the
upper and lower locating dowels.
Finally, grasp the panel and ensure that it is
fully retained.
Tool Kit and Handbook
1. Allen key
1. Pillion seat
2. C-spanner
3. Wire clip
