Triumph Thunderbird Commander User Manual

114
Maintenance and Adjustment

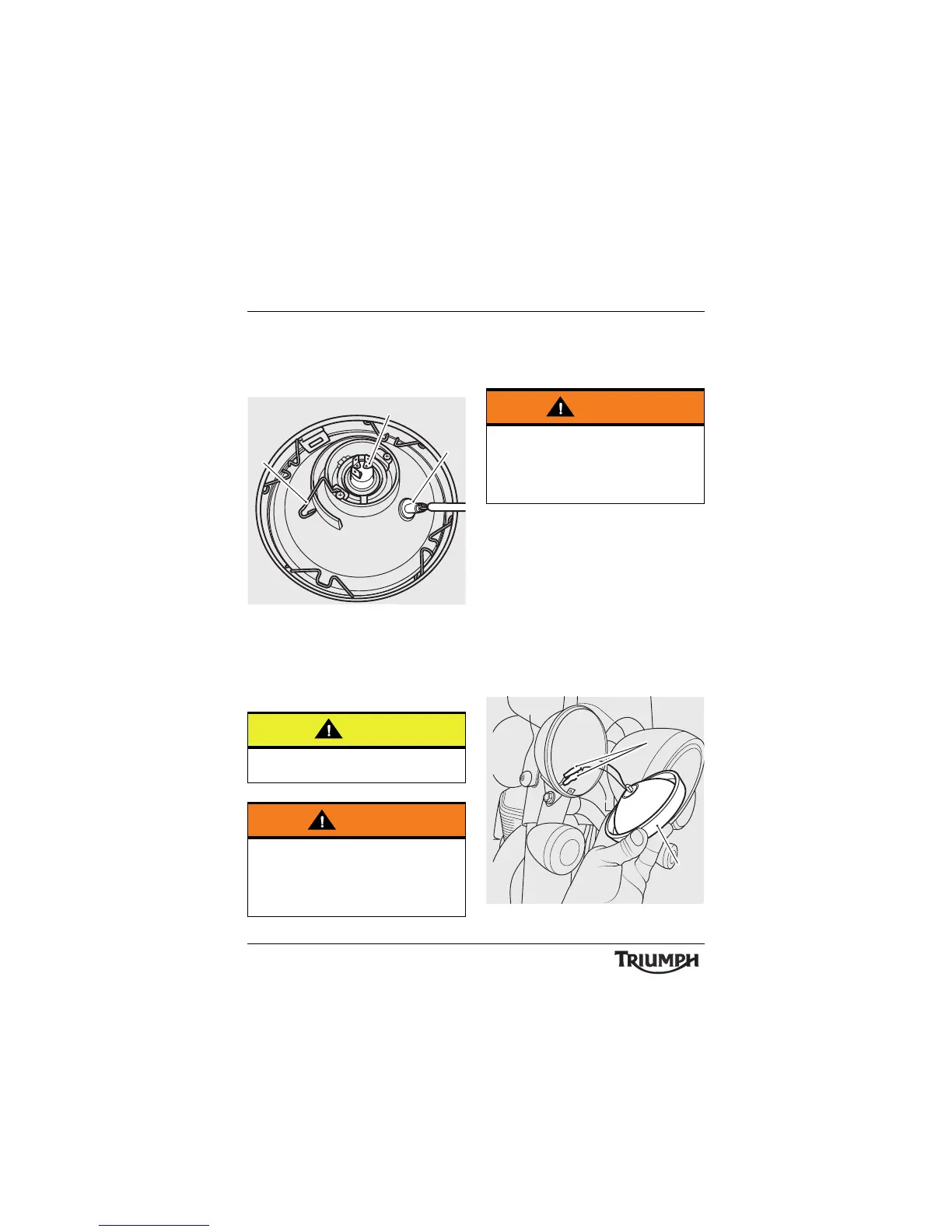

To remove the position light bulb:
Without pulling on the wires, ease the bulb
holder from its socket. The bulb is removed
from its holder by pulling gently upwards.
1. Wire retainer
2. Headlight bulb
3. Position light bulb
Installation for both bulbs is the reverse of the
removal procedure. Tighten the headlight
clamp to 18 l b f i n ( 2 N m ) .
Auxiliary Lamps (if fitted)
It is necessary to remove the auxiliary lamp
from its bowl to gain access to the bulb.
Remove the rider’s seat (see page 47).
Disconnect the battery, negative (black) lead
first.
Release the fixing securing the auxiliary lamp
clamp to the auxiliary lamp body.
Detach the auxiliary lamp from its bowl while
supporting it to prevent the cables from
being over extended.
Disconnect the electrical connectors for the
auxiliary lamp bulb from the harness and
remove the auxiliary lamp.
1. Electrical connectors
2. Auxiliary lamp
Caution
When reconnecting the battery, connect
the positive (red) lead first.
Warning
Do not reconnect the battery until the
assembly process has been completed.
Premature battery reconnection could
result in ignition of the battery gases
causing risk of injury.
cihl
1
2
3
Warning
The bulbs become hot during use. Always
allow sufficient time for the bulbs to cool
before handling. Avoid touching the glass
part of the bulb. If the glass is touched or
gets dirty, clean with alcohol before re-use.
cihk_1
2
1
