Triumph Thunderbird Commander User Manual

18

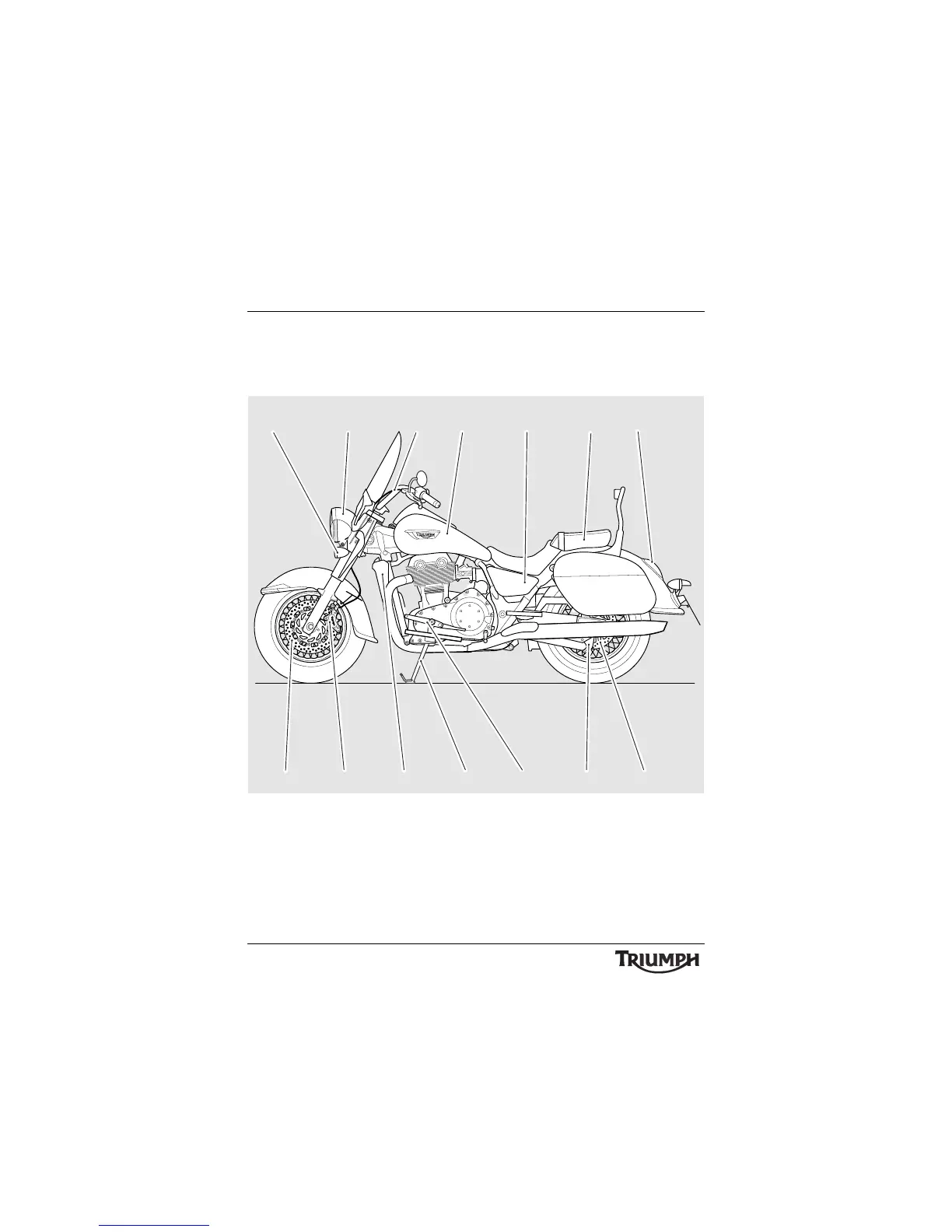

Parts Identification
PARTS IDENTIFICATION
Thunderbird LT
1. Front turn signal
2. Headlight
3. Clutch cable
4. Fuel tank
5. Allen Key (behind side panel)
6. Handbook/C-spanner (beneath
pillion seat)
7. Brake/Rear light
8. Rear brake disc
9. Rear brake caliper
10.Gear shift pedal
11. S i d e s t a n d
12 . R a d i a t o r
13.Front brake caliper
14.Front brake disc
1
2 3456
14 13 12 11 10 9 8
7

Triumph Thunderbird Commander Specifications

General

Displacement	1699 cc
Bore x Stroke	107.1 mm x 94.3 mm
Compression Ratio	9.7:1
Max Torque	151 Nm @ 3550 rpm
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Brakes	Single 310mm disc, 2-piston caliper
Seat Height	700 mm
Fuel Tank Capacity	22 litres
Engine Type	Liquid-cooled, DOHC, parallel-twin
Fuel System	Electronic fuel injection
Exhaust	Chrome 2-into-1-into-2 system
Final Drive	Belt
Front Suspension	Telescopic forks
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 310mm discs, 4-piston calipers
Weight	308 kg
Power	93 bhp
