Triumph Tiger 800 - All Models (Tiger 800 shown)

18

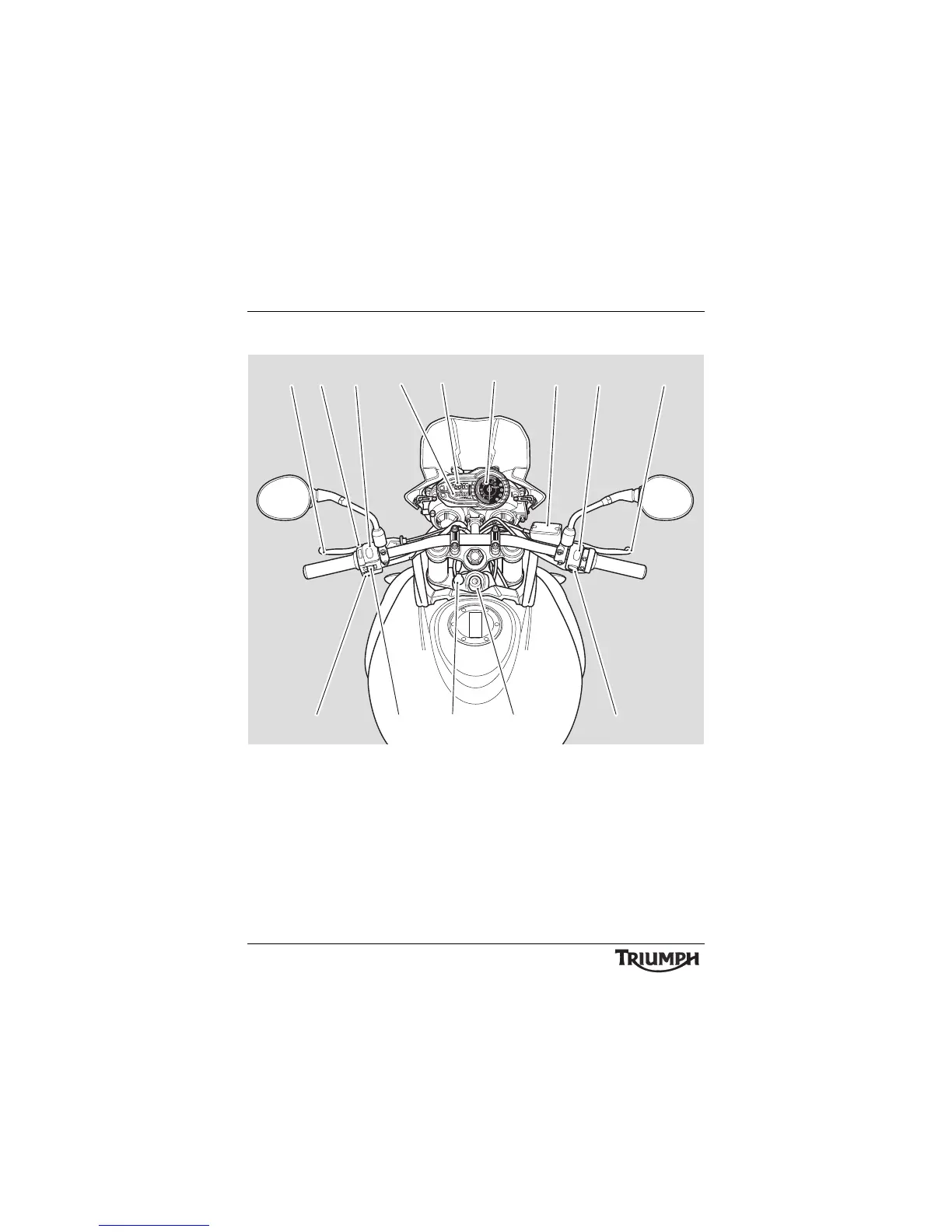

Parts Identification
All Models (Tiger 800 shown)
1. C l u t c h l e v e r
2. Passing button
3. Headlight dip switch
4. Trip computer display
5. Speedometer
6. Tachometer
7. Front brake fluid reservoir
8. Engine stop switch
9. Front brake lever
10. Starter button
11. I g n i t i o n s w i t c h
12. Electrical accessory socket
13. Direction indicator switch
14. Horn button
cgjo
4
32
5
6
7 8 9
11 1014 13
1
12
