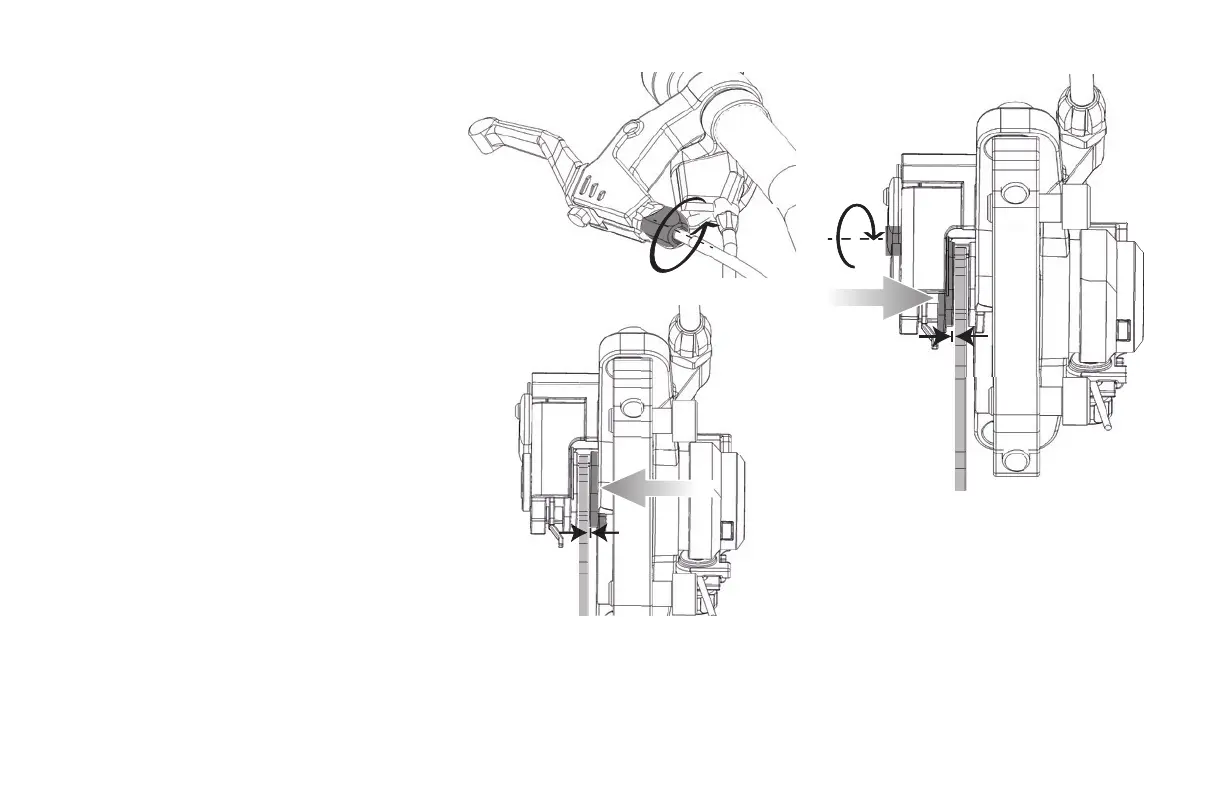

To adjust the brake pads position:
Adjust both brake pads position
(outboard and inboard) so they sit as
close as possible to the rotor without
rubbing it when the wheel is spinning.
1. Turn the adjustment barrel on the brake
lever counter clockwise to move the
outboard brake pad closer to the rotor.
2. Move the inboard brake pad closer to the
rotor by using the corresponding tool or
knob on the inboard piston clockwise
(Loosen the anti-rotation set screw if
there’s one first, and make sure to tighten it
again after the adjustment).
