Trojan Glide Cycle 500 User Manual

10
TG500
ASSEMbLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1: FRONT AND REAR STABILISERS
Install the Front bottom tube (2) and Back Bottom
Tube (3) to the Main Frame (1) with Carriage Bolts
(46), Arc Washers (49) and Acorn Nuts (47).
STEP 2: SPINDLE BAR
Insert the Handle bar shaft (12) through the left & right
Coupler Bar (4, 5) and the Main Frame (1) at the same
time, then x with Washers (88), D Shape Washers (56),
Washers (52) and Bolts (57) on both sides.
Insert the Pedal Hinge Bolt (62, 63) through the Pedal
Tubing (6 L, 6 R) into the Crankshaft (27 L, 27 R) and x
with Nylon Nuts (48 L, 48 R), Spring Washers (51) and
then cover with Plastic Cap (9, 43).

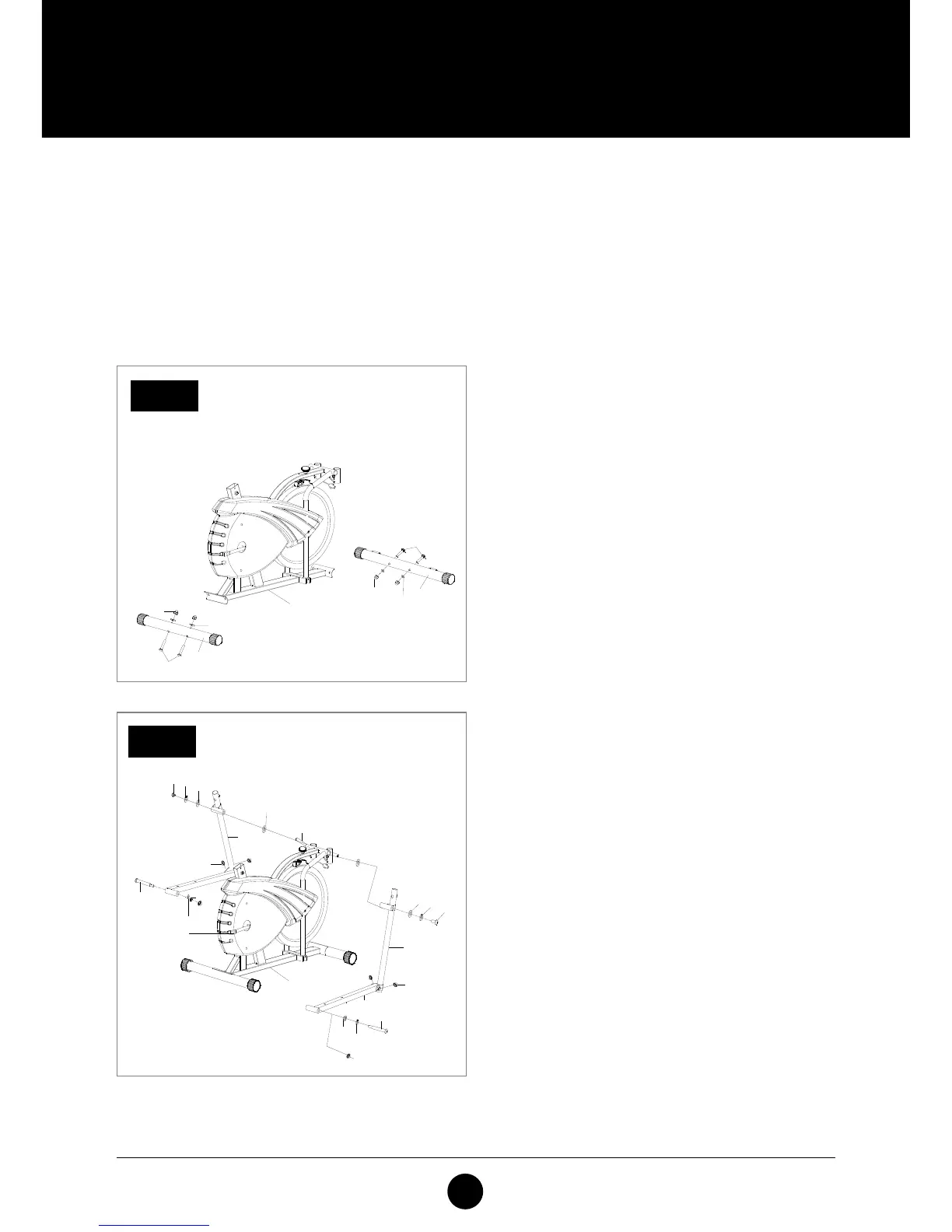

STEP 1
STEP 2

3
46
47
49
2
46
1
47
49


57
52
56
62
51
48L
27
43
9
6R
4
1
56
52
57
48R
51
63
9
6L
5
12
88

Trojan Glide Cycle 500 Specifications

General

Brand	Trojan
Model	Glide Cycle 500
Category	Elliptical Trainer
Language	English
