Trojan Glide Cycle 500 - Step 3: Pedals; Step 4: Handlebar

11
TG500
ASSEMbLY STEPS

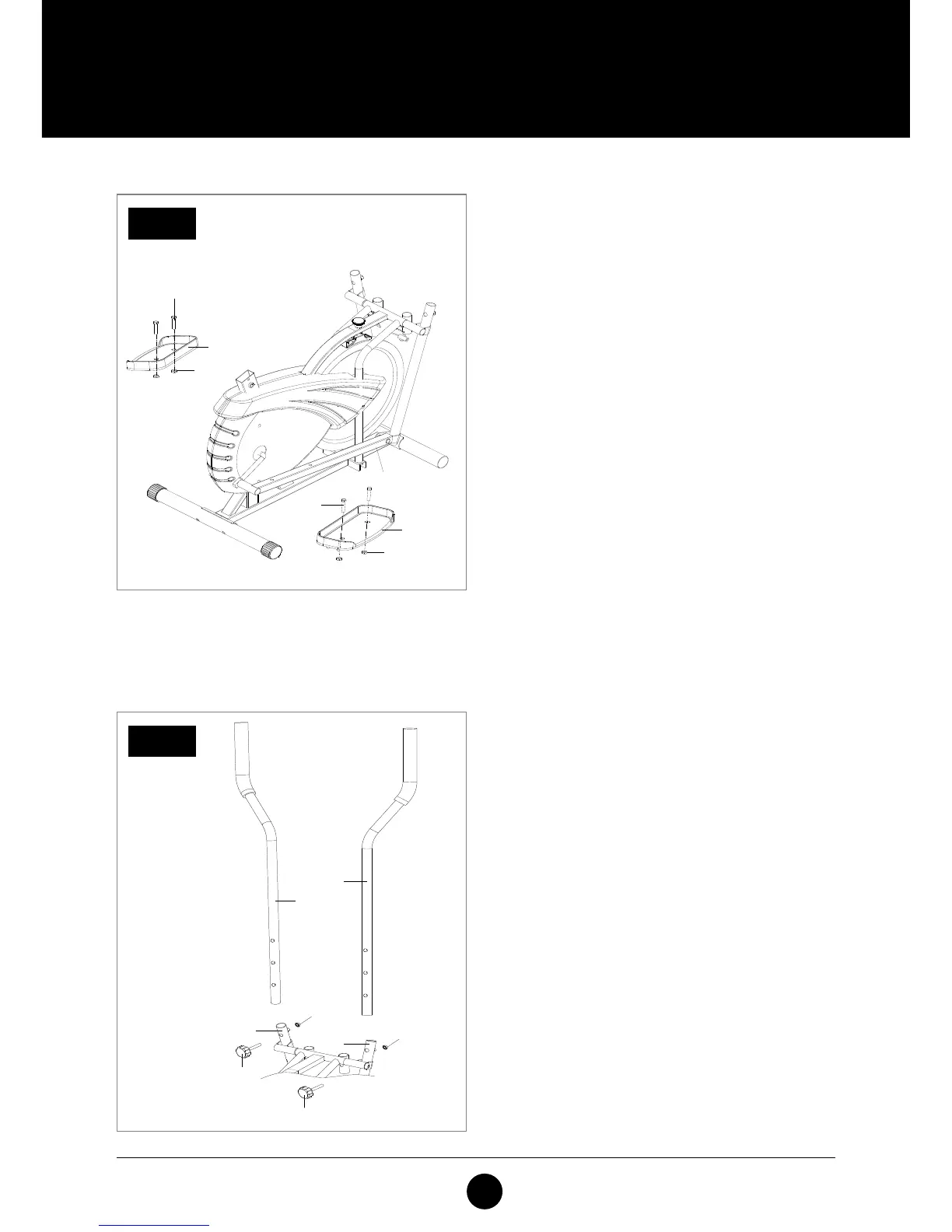

STEP 3: PEDALS
Attach the Pedals (11 L, 11 R) to the Pedal Tubes
(6 L, 6 R) with Bolts (44) and Nylon Nuts (45).
STEP 3
STEP 4: HANDLEBAR
Insert the Handle Bar (7 L, 7 R) to the Coupler Bar
(5, 4), select a height setting that is comfortable to
the user, and make sure both Handle Bars are set at
the same height. Lock each Handle Bar in place with
Knobs (17) and End Cap (54) .
STEP 4

45
44
11
11
44
45
6R


7R
7L
17
17
5
4
54
54

