6 7

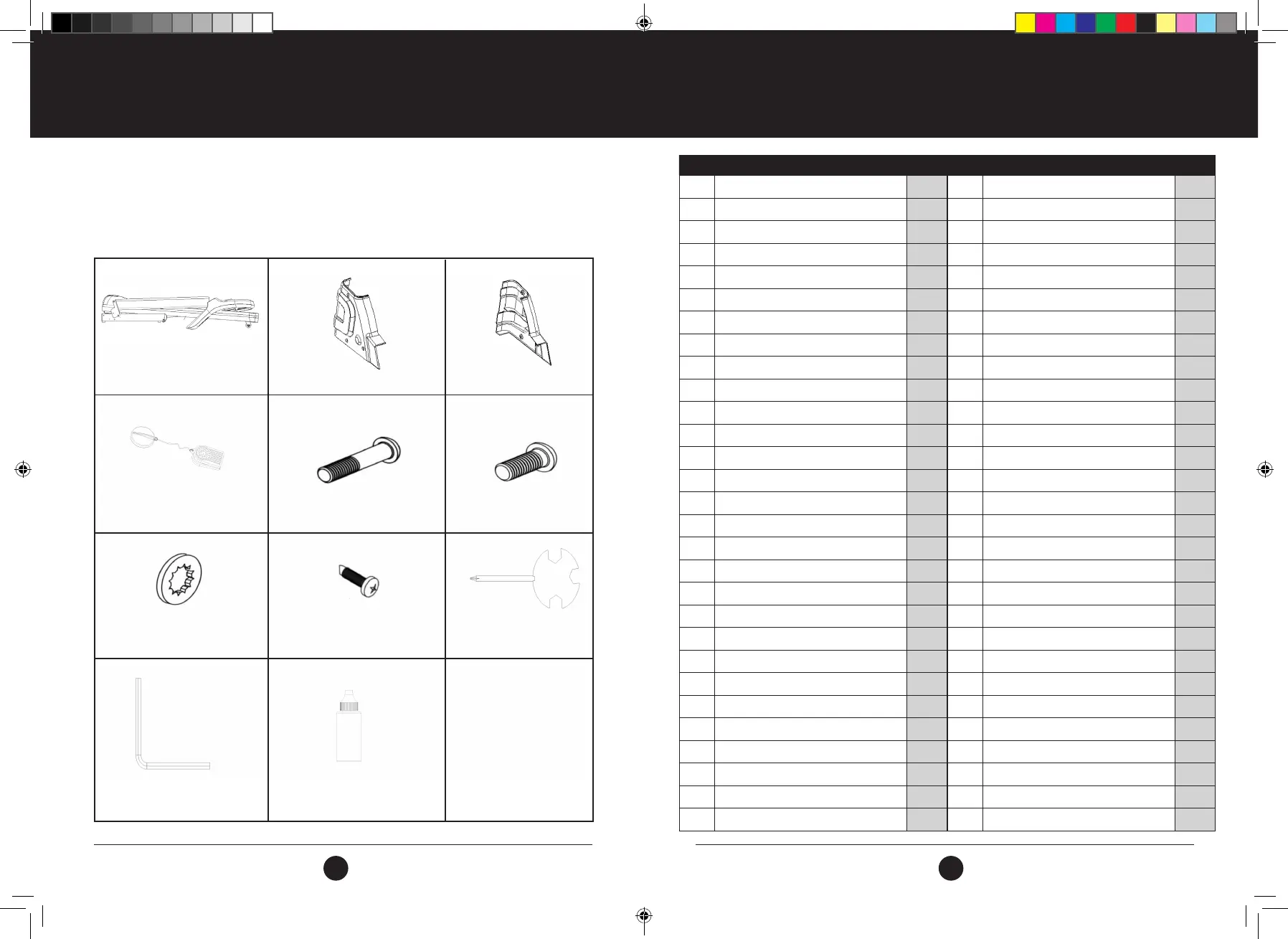

HARDWARE & TOOLS LIST
INSTRUCTIONS FOR ASSEMBLY
• Before you start to assemble, please check the hardware packaging to make sure all parts are included.
• Basic tools, such as spanners will be provided for assembly.
3. Main Frame (1 PC) 69L. Left Upright Cover (1 PC) 69R. Right Upright Cover (1 PC)
81. Safety Key (1 PC)
34. Lock Washer (D8) (8 PCS)
13. Bolt (M8 x 60 ) (4 PCS)
41. Screw (ST4.2 x 15) (6 PCS)
18. Bolt (M8 x 20) (4 PCS)
45. Multi Tool (1 PC)
A. Lubrication Oil (1 PC)
44. Allen Key (1 PC)
PARTS LIST
No. Description Qty
1 Base Frame 1
2 Incline Base 1
3 Main Frame 1
4L Left Upright Post 1
4R Right Upright Post 1
5 Console Frame 1
6 Motor Base 1
7 Bolt (M10 x 95) 1
8 Bolt (M10 x 40) 1
9 Bolt (M10 x 25) 4
10 Bolt (M8 x 45) 1
11 Bolt (M8 x 25) 1
12 Bolt (M8 x 40) 2
13 Bolt (M8 x 60) 6
14 Bolt (M8 x 65) 2
15 Bolt (M8 x 40) 4
16 Screw (ST3.0 x 10) 6
17 Bolt (M8 x 60) 1
18 Bolt (M8 x 20) 8
19 Bolt (M8 x 15) 4
20 Bolt (M5 x 10) 11
21 Bolt (M8 x 32) 2
22 Bolt (M6 x 25) 6
23 Bolt (M6 x 30) 6
24 Spring Washer (D10) 4
25 Spring Washer (D8) 6
26 Nylon Nut (M10) 4
27 Nylon Nut (M8) 4
28 Nylon Nut (M6) 6
No. Description Qty
29 Washer (D10) 6
30 Screw (ST4.2 x 60) 4
31 Washer (D5) 2
32 Flat Washer (D8) 8
33 Flat Washer (D6) 6
34 Lock Washer (D8) 18
35 Screw (ST4.2 x 25) 6
36 Screw (ST4.2 x 15) 16
37 Screw (ST4.2 x 20) 20
38 Screw (M8 x 15) 2
39 Audio Cable 1
40 Screw (ST4.0 x 12) 14
41 Screw (ST4.2 x 5) 6
42 Screw (ST2.5 x 7) 6
44 Allen Key 1
45 Multi Tool 1
46 Sleeving 4
47 Washer (D6) 6
48 Air Cylinder 1
49 Front Roller 1
50 Rear Roller 1
51 Bearing 4
52 Up Motor Cover 1
53 Side Rail 2
54L Left End Cap 1
54R Right End Cap 1
55 Console Up Cover 1
56 Console Down Cover 1
57 Console 1
#22M03T013.1 TR1200 Treadmill UM - Amendment.indd 6-7 2022/06/01 09:22
