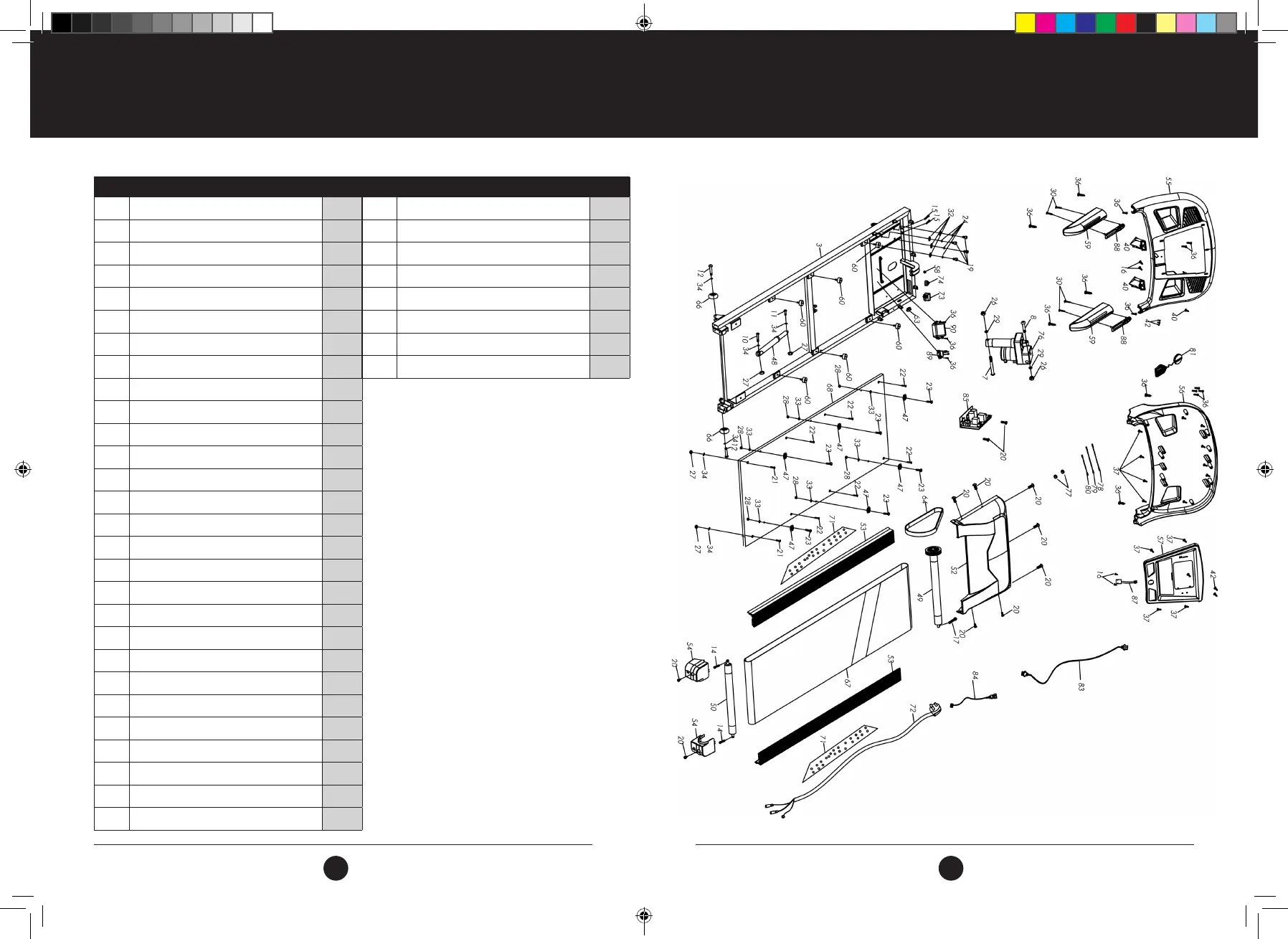

PARTS LIST EXPLODED DRAWING
No. Description Qty
58 Power Wire Clip 1
59 L Left PU Handlebar 1
59 R Right PU Handlebar 1
60 Cushion 6
61 Feet Cushion 6
62 Small Cushion 2
63 Wire Cap 2
64 IGBT 1
65 Bottom Wheel 2
66 Back Feet Wheel 2
67 Running Belt 1
68 Running Board 1
69 L Left Upright Cover 1
69 R Right Upright Cover 1
70 Bottom wheel Cover 2
71 Anti-Slider 2
72 Power Cable 1
73 Power Switch 1
74 Overload Protector 1
75 DC Motor 1
76 Incline Motor 1
77 Magnetic Ring 2
78 Power Connecting Cable 1 1
79 Power Connecting Cable 2 1
80 Power Connecting Cable 3 1
81 Safety Key 1
82 Up Wire 1
83 Middle Wire 1
No. Description Qty
84 Down Wire 1
85 Motor Board Controller 1
86 Light Sensor 1
87 Safety Switch Sensor 1
88 L Left Handlebar 1
88 R Right Handlebar 1
89 Overload Protector (Inductor) 1
90 Inline Filter 1
