ASSEMBLY STEPS
1. PREPARATION
• Before assembling make sure that you will have enough space around the item.
• Use the supplied parts and hardware for the assembly.
• Before assembling, please check whether all the required parts have been supplied as per the exploded
drawing on the opposite page.
STEP 1
STEP 1:
Open the carton, remove all the parts and
place the Main Frame (3) on a at and dry
surface.

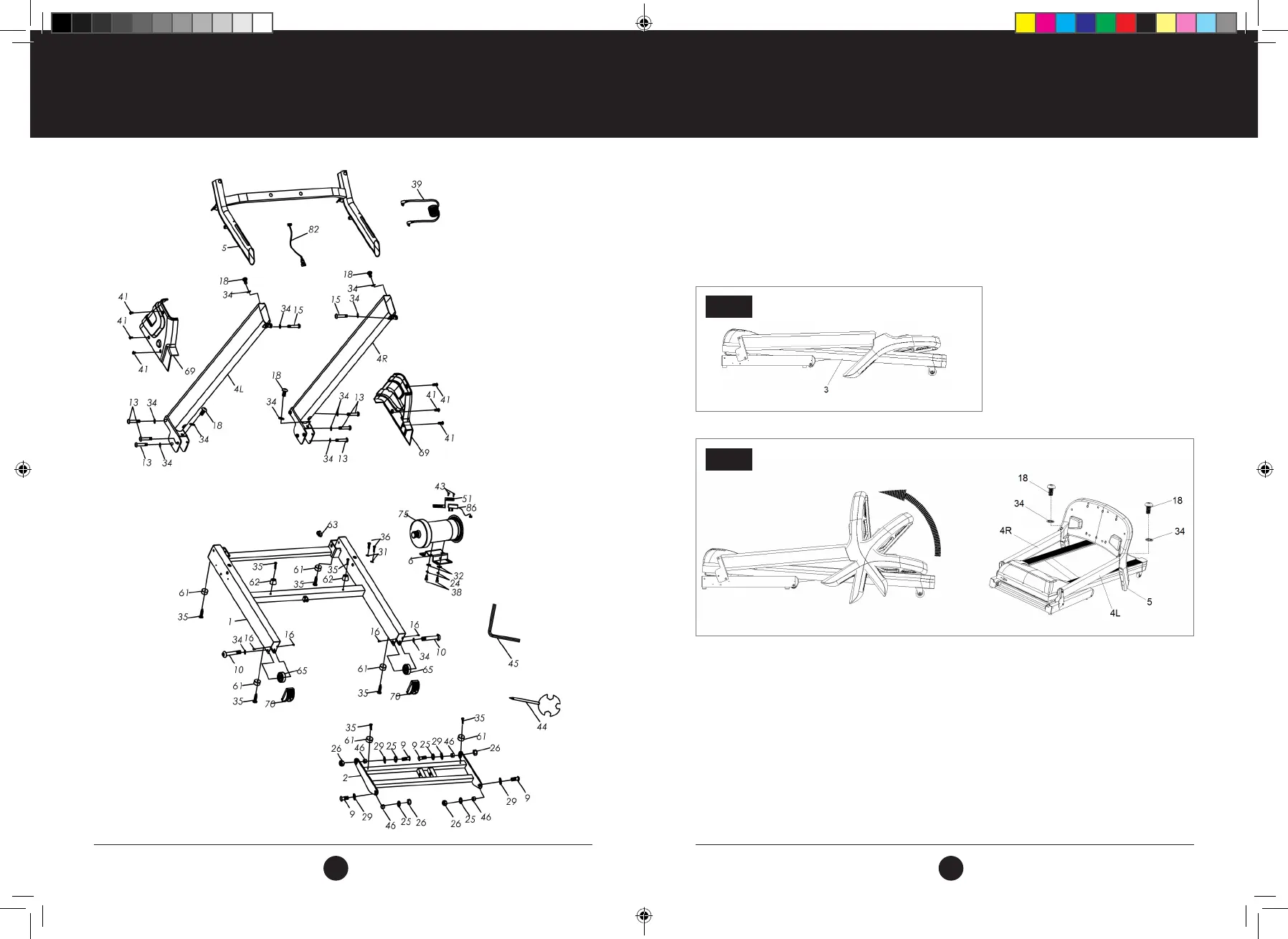

EXPLODED DRAWING
STEP 2:
Lift up the Console Frame (5), Left Upright Post (4 L) and the Right Upright Post (4 R).
Use the Allen Key (44) to afx the Console Frame (5) to the Left Upright Post (4L) and Right Upright Post (4R)
using 2 Bolts (M8 x 20) (18) and 2 Lock Washer (D8) (34).
Note: Do not squash the wires inside the tube. Ensure that wires are connected. Support the upright with 1
hand to avoid it from falling down and possibly causing injuryded.
