Raw Water Systems
Seacock
• A seacock is a valve, controlled by a 90º lever, used
to manage the intake of raw water through the hull
and below the water line.
• The raw water intake systems used on your boat are
for the Marine Head System (if equipped), the Bait-
well system, and Raw Water Washdown System.
Raw Water Washdown (If Equipped)
1. Open the raw water intake seacock.
2. On the switch panel, turn On the
washdown switch.
SYSTEM DAMAGE HAZARD!
• Before using a raw water intake system, make sure that the system’s seacock is in the Open
position before the system is started and keep the seacock Open until the system is shut Off.
• Close the seacock whenever the system will not be used for long periods of time.
CAUTION
!
INTAKE STRAINER
HULL
SEACOCK GASKET
SEACOCK (TYPICAL)
SEACOCK
LEVER
SECTION

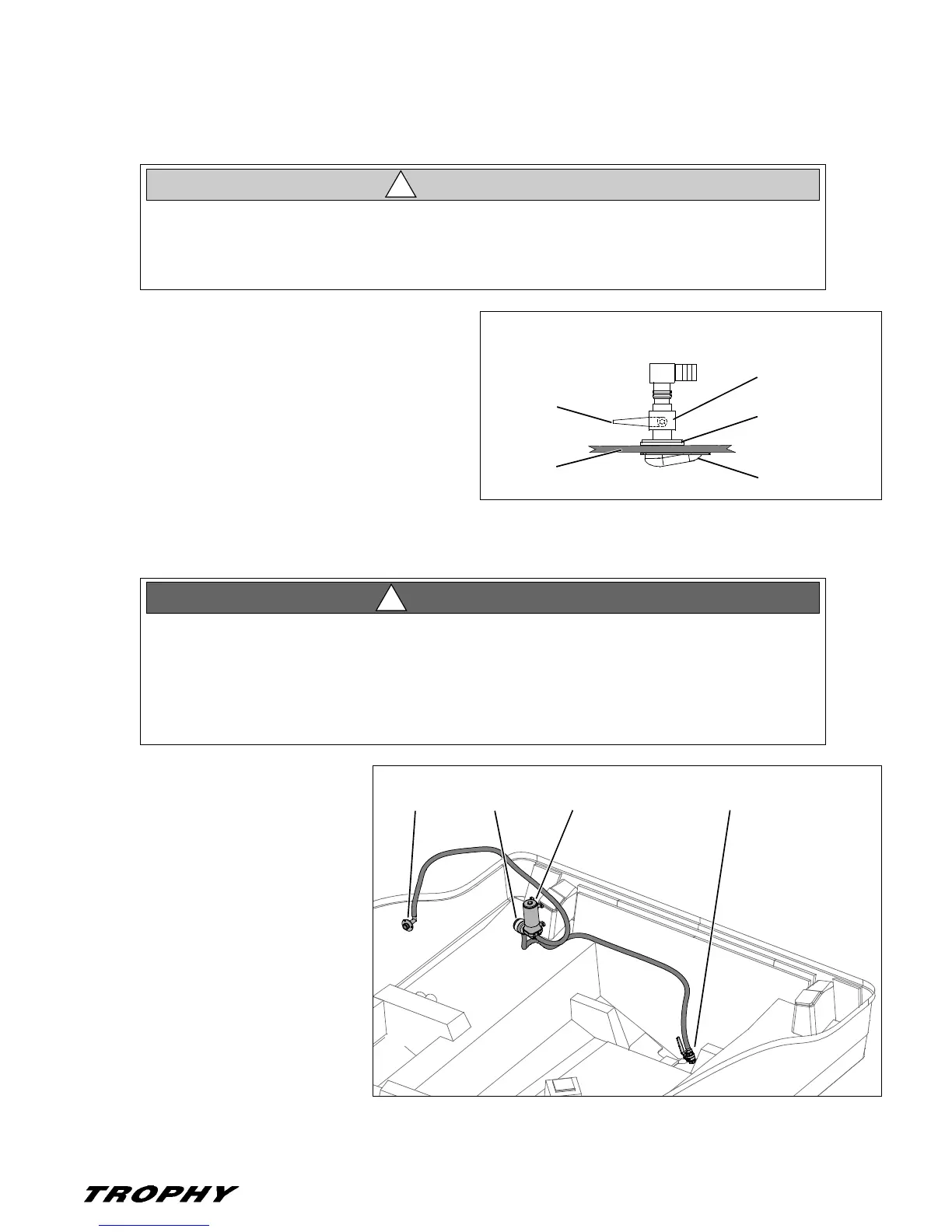

RAW WATER INTAKE VALVE (SEACOCK)
COMPONENTS (TYPICAL)
90 DEGREE
FLOODING & SWAMPING HAZARD!
• While the raw water system is pressurized, NEVER leave the boat unattended for any length
of time.
• Any leak or break in the system could allow large amounts of water to pump into the bilge,
swamping the batteries and engine, and even sinking the boat.
• Close the seacock whenever the raw water system or baitwell system is not in use.
WARNING!
!
RAW WATERRAW WATER RAW WATER
INTAKE SEACOCKFILTER INTAKE PUMP
WASHDOWN
OUTLET
