Baitwell System
System Routing
FLOODING & SWAMPING HAZARD!
• While the baitwell system is running, NEVER leave the boat unattended for any length
of time.
• Any leak or break in the system could allow large amounts of water to pump into the bilge,
swamping the batteries and engine, and possibly sinking the boat.
• Close the seacock whenever the raw water system or baitwell system is not in use.
WARNING!
!
SYSTEM DAMAGE HAZARD!
• Before using the baitwell system, make sure that the system’s seacock is in the Open position
and keep the seacock Open until the system is shut Off.
• Close the seacock whenever the raw water system or baitwell system is not in use.
CAUTION
!

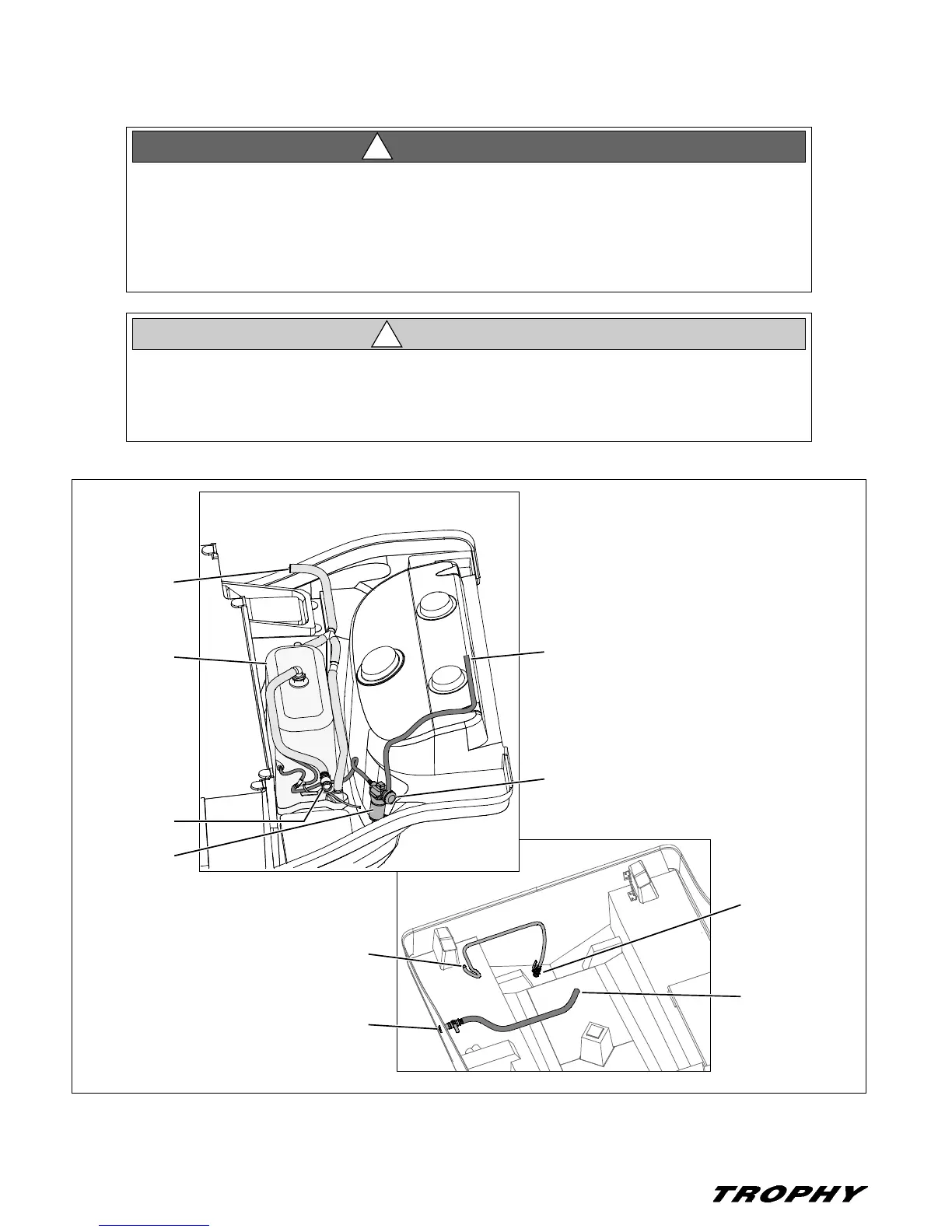

RAW WATER INTAKE
SEACOCK
TO INTAKE PUMP
DRAIN SEACOCK
THRU-HULL
FROM RAW WATER
INTAKE SEACOCK
RAW WATER FILTER
OVERFLOW
DRAIN
BAITWELL TANK
VIEW IS UNDERSIDE OF AFT DECKNOTE:
RAW WATER
PUMP
FROM
BAITWELL TUB
DRAIN SEACOCK
THRU-HULL
To Next Page
