Chapter 2: Locations 2503 Center Console • Owner’s Manual Supplement
Component Locations

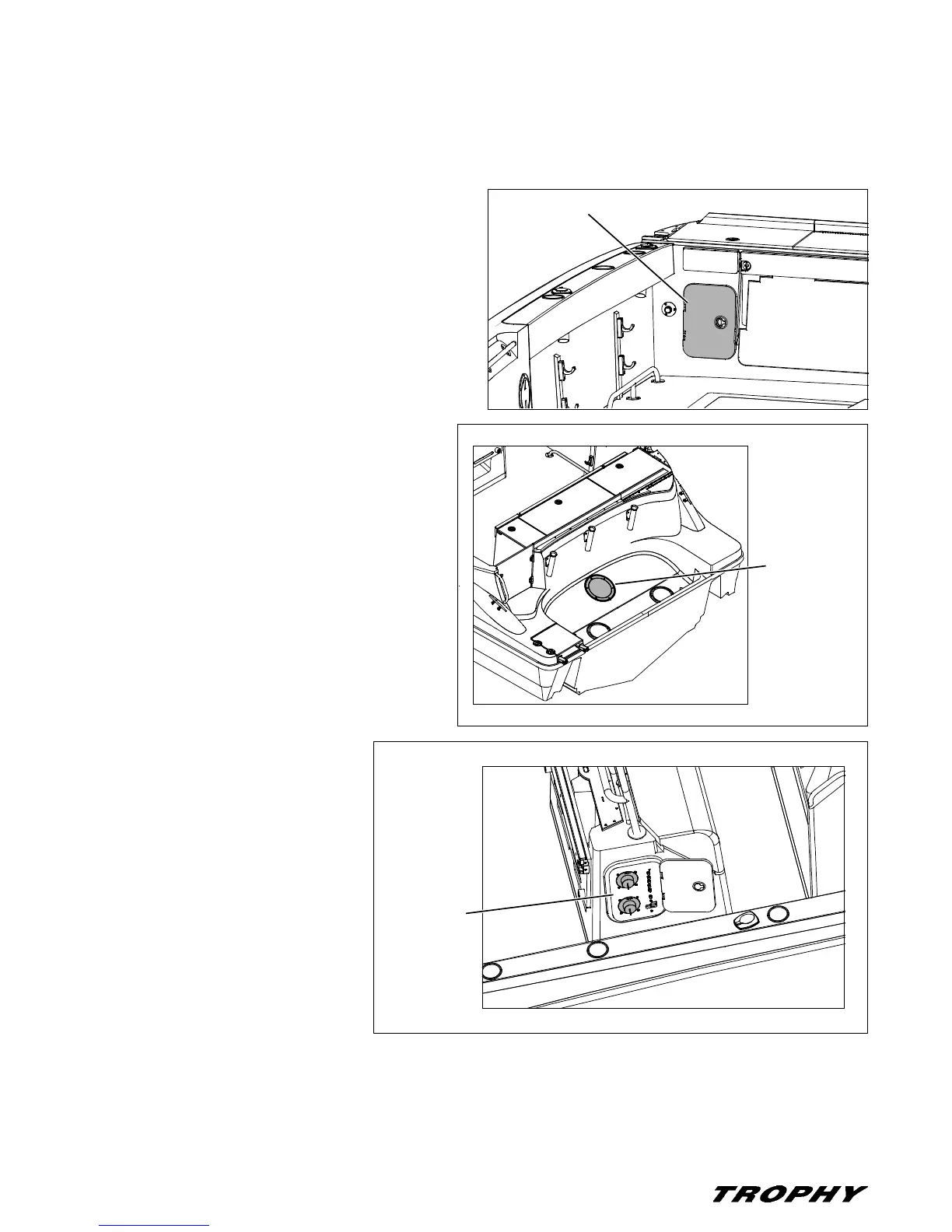

12-Volt Accessory Outlet:
• Located at the helm on the switch panel.
Baitwell Drain Seacock:
• Located on the starboard hullside, near the transom.
• Access is through the hatch in the starboard aft corner
of the cockpit.
Baitwell Raw Water Intake Seacock:
• Located in the aft bilge.
• Access is through the motor-well hatch.
Battery Switch:
• Located on the starboard side of the
leaning post.
ACCESS HATCH
MOTOR-WELL
HATCH
BATTERY
SWITCHES
