2503 Center Console • Owner’s Manual Supplement Chapter 6: Plumbing
Filling & Using the Baitwell
1. Open the raw water
intake seacock.
2. On the switch
panel, turn On
the baitwell.
The tank should now be
filling with water. If
water is not pumping
into the tank, possible
causes are:
• A collapsed hose or
clogging debris in
the system.
• The seacock
is Closed.
• The baitwell fuse
is blown.
Aeration Tips
The level of aeration is
controlled by the aera-
tor control valve.
• In clean ocean
water little or no
aeration is needed.
• In brackish back-
waters a higher
level of aeration
may be needed.
To Drain the Baitwell
Open the drain seacock
located in the starboard
aft access hatch.

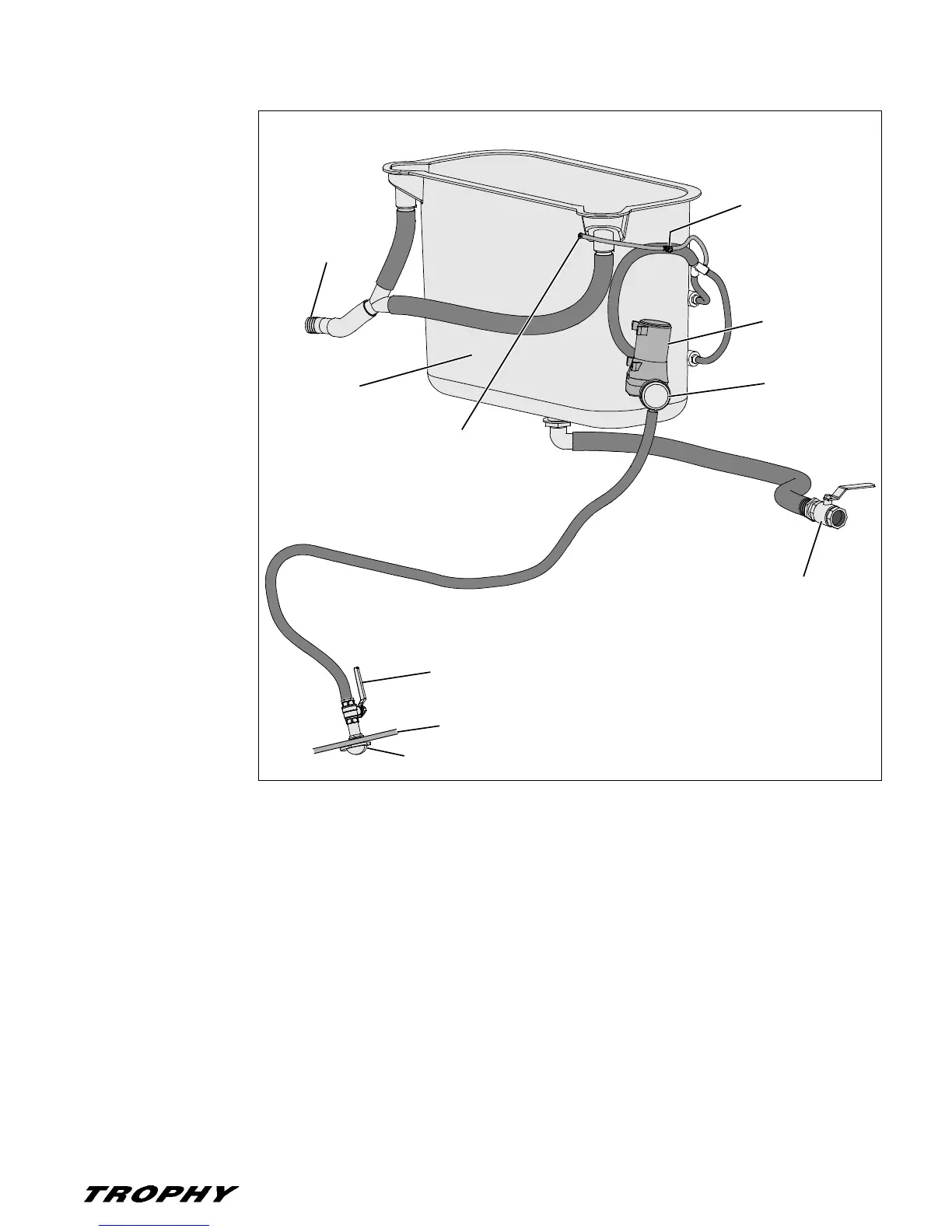

AERATOR
OVERFLOW
AERATOR
RAW WATER
RAW WATER
CUT-AWAY VIEW
OF HULL BOTTOM
RAW WATER STRAINER
RAW WATER
INTAKE SEACOCK
DRAIN
VENT
FILTER
INTAKE PUMP
CONTROL VALVE
BAITWELL
TANK
DRAIN
SEACOCK
SYSTEM DETAIL VIEW
