TSC Alpha-30L User Manual

14

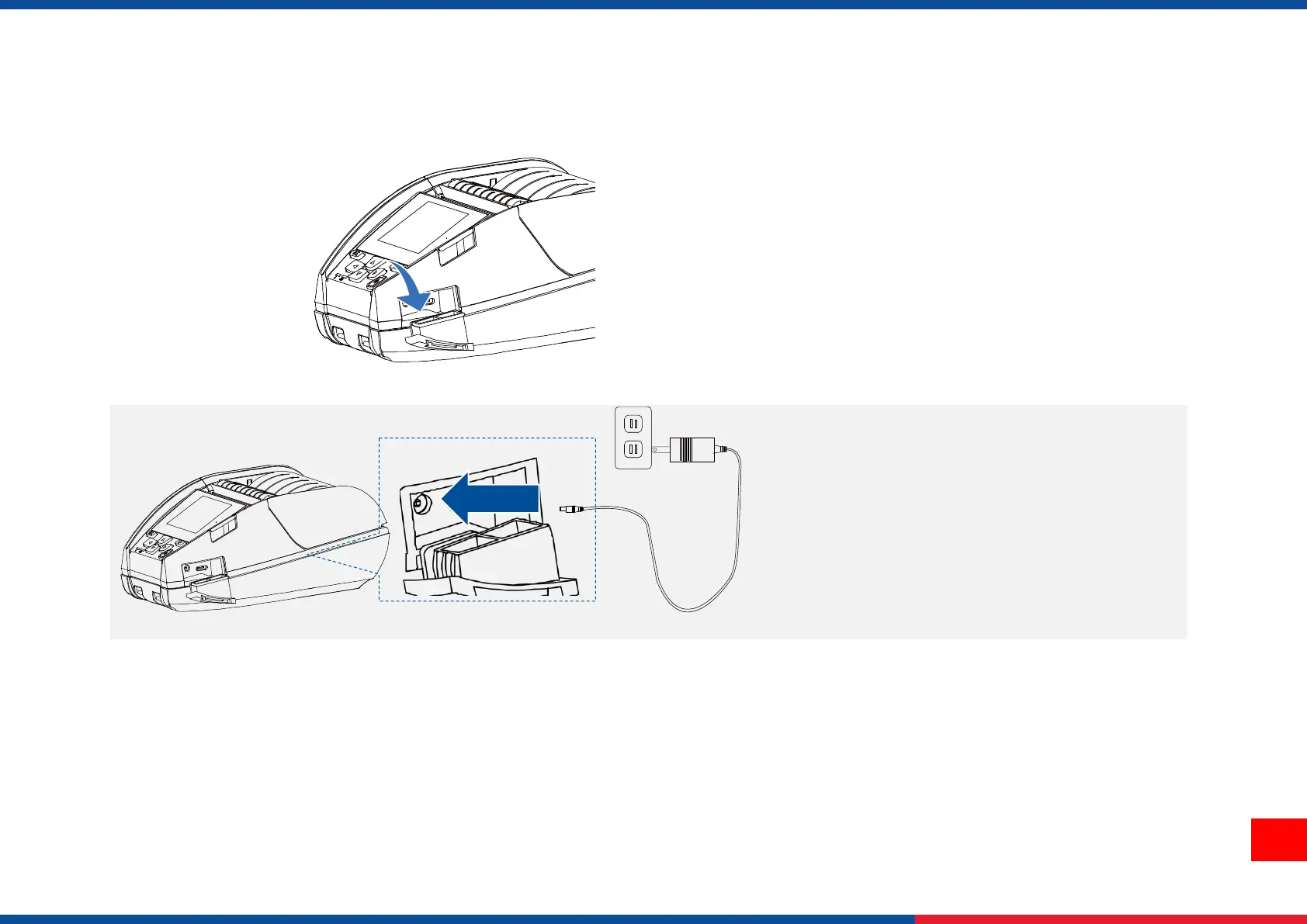

3.2.1 Charging the Battery
1. Open the interface cover.
2. Plug the power cord to the power jack and
power outlet.
3. When charging, the battery status LED
indicator on the printer turns solid amber.
After fully charged, the printer LED
indicator turns off. It will stop charging
automatically after the battery is fully
charged.
Note:
Please switch OFF printer power prior to plug in the power cord to printer power jack.
When the battery is charging, please do not remove the battery from the printer, otherwise, please re-plug the power cord
into a power outlet.

TSC Alpha-30L Specifications

General

Color	Yes
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Printable dot numbers	8 dot
Maximum printing width	72 mm
Core diameter	12.7 mm
Media thickness	0.06 - 0.16 mm
Maximum roll diameter	67 mm
Supported paper width	80 mm
Ethernet LAN	No
Optional connectivity	Bluetooth, USB 2.0
Connectivity technology	Wired & Wireless
Internal memory	128 MB
Built-in barcodes	1D, 2D, China post, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, ITF-14, Interleaved 2/5, LOGMARS, PLANET, Standard 2/5, TELEPEN, UPC-A
Page description languages	ESC/POS, TSPL-EZ
Display	LCD
Control type	Buttons
Product color	Black, Grey
Display diagonal	2.3 \
Display resolution	320 x 240 pixels
Battery capacity	3030 mAh
Warranty period	2 year(s)
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	79 mm
Width	117 mm
Height	173 mm
