TSC Alpha-30L User Manual

45
5.4 TPH Care
TPH Care provides users to check the condition of the print head and be able to set the dot failure threshold for indicating errors when the
threshold is triggered.

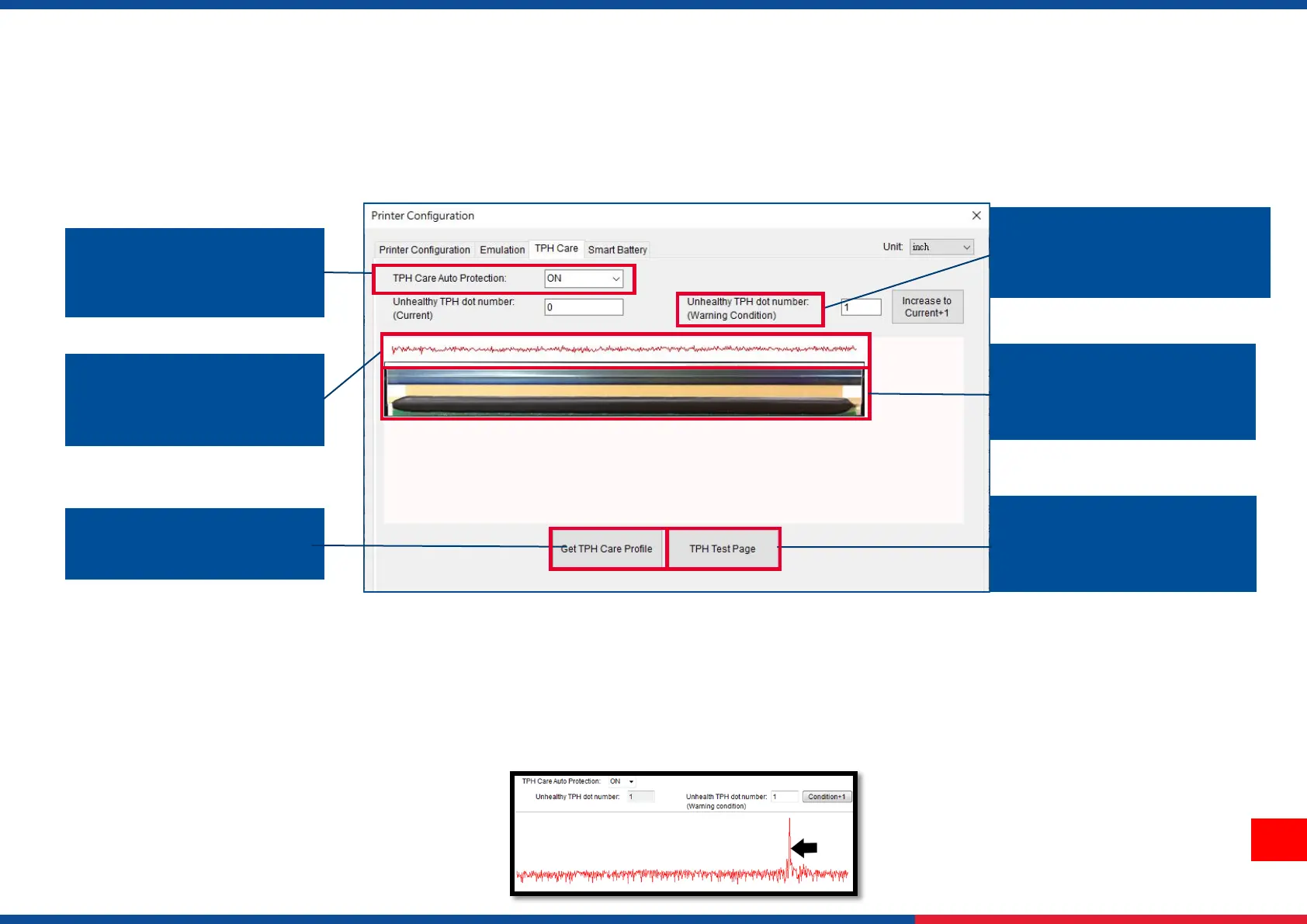

1. Enable the TPH Care function. (Note: The default is disabled/OFF.) Then click "Get TPH care profile" button and a diagram will show in the
area above.
2. If the profile is flat, it means that the print head is good. Check "Unhealthy TPH dot number". If the result is zero (0), that means the print
head is good.
3. Bad dots are presented as a spike in the profile. The arrow in below iprofile indicates the presence of potentially damaged dots and printer
will stop printing.
This option is used to enable
(ON)/ disable (OFF) the TPH
care function.
This option is used to check
the numbers of unhealthy TPH
dot element.
This option is used to set the
treshhold for unhealthy TPH dot
number.
This option is used to detect
the unhealthy TPH dot.
This option is used to print a
TPH test image to check the
TPH printing result.
This image is used to check the
relative position of the
unhealthy TPH dot.

TSC Alpha-30L Specifications

General

Color	Yes
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Printable dot numbers	8 dot
Maximum printing width	72 mm
Core diameter	12.7 mm
Media thickness	0.06 - 0.16 mm
Maximum roll diameter	67 mm
Supported paper width	80 mm
Ethernet LAN	No
Optional connectivity	Bluetooth, USB 2.0
Connectivity technology	Wired & Wireless
Internal memory	128 MB
Built-in barcodes	1D, 2D, China post, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, ITF-14, Interleaved 2/5, LOGMARS, PLANET, Standard 2/5, TELEPEN, UPC-A
Page description languages	ESC/POS, TSPL-EZ
Display	LCD
Control type	Buttons
Product color	Black, Grey
Display diagonal	2.3 \
Display resolution	320 x 240 pixels
Battery capacity	3030 mAh
Warranty period	2 year(s)
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	79 mm
Width	117 mm
Height	173 mm
