TSC Alpha-30L User Manual

39
5. TSC Console
TSC Console is a management tool combining the Printer Management, Diagnostic Tool, CommTool and Printer Webpage settings,
which enables you to adjust printer’s settings/status; change printers’ settings; download graphics, deploy fonts, graphics, label
templates or upgrade the firmware to the group of printers, and send additional commands to printers at the same time.
※ Printer firmware version before A2.12 will only use 9100 Port as command port; Printer firmware after A2.12 will use
6101 Port as command port.

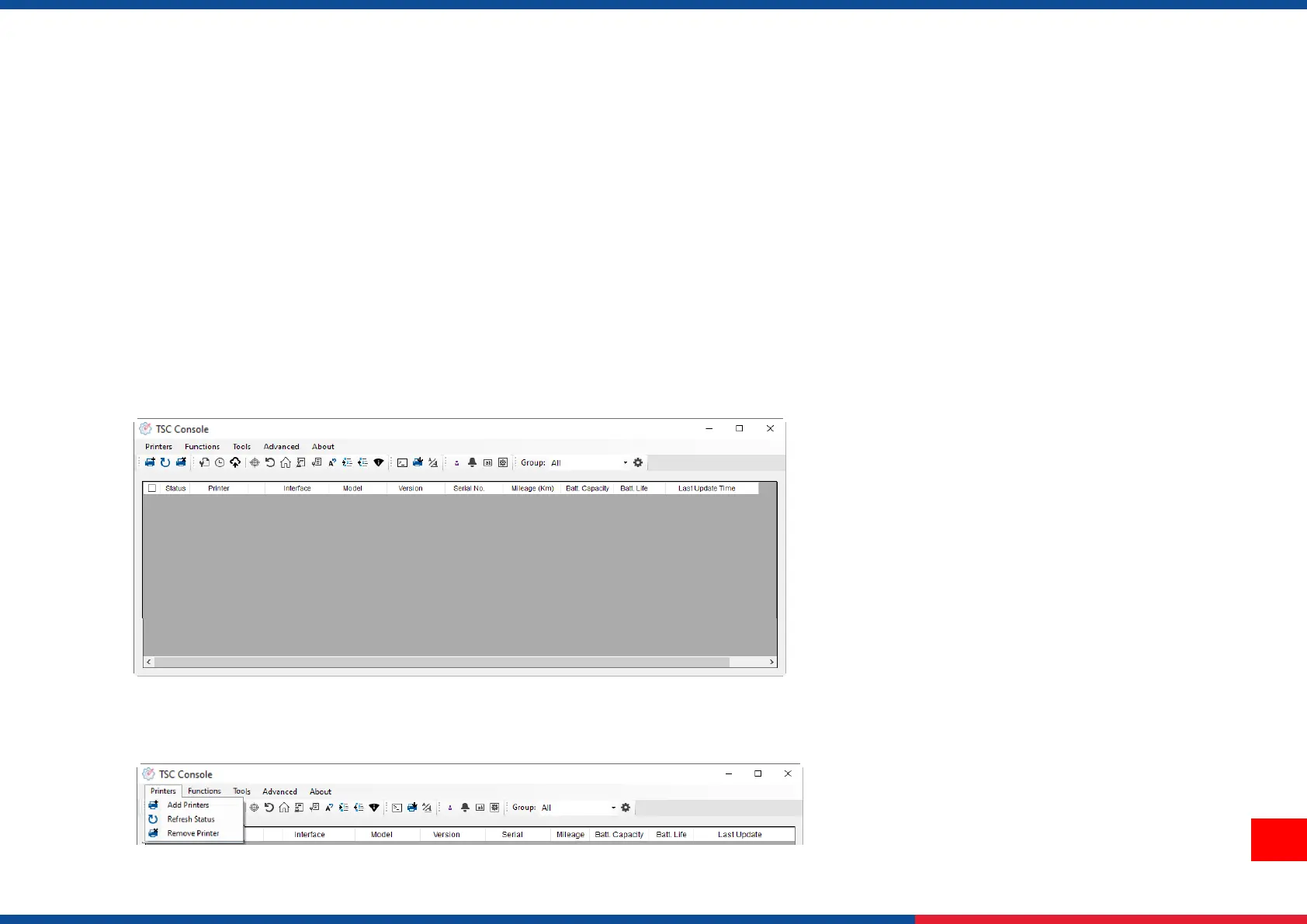

5.1 Start TSC Console
1. Double click TSC Console icon to start the software.
2. Manually add the devices by clicking Printer > Add Printers.

TSC Alpha-30L Specifications

General

Color	Yes
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Printable dot numbers	8 dot
Maximum printing width	72 mm
Core diameter	12.7 mm
Media thickness	0.06 - 0.16 mm
Maximum roll diameter	67 mm
Supported paper width	80 mm
Ethernet LAN	No
Optional connectivity	Bluetooth, USB 2.0
Connectivity technology	Wired & Wireless
Internal memory	128 MB
Built-in barcodes	1D, 2D, China post, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, ITF-14, Interleaved 2/5, LOGMARS, PLANET, Standard 2/5, TELEPEN, UPC-A
Page description languages	ESC/POS, TSPL-EZ
Display	LCD
Control type	Buttons
Product color	Black, Grey
Display diagonal	2.3 \
Display resolution	320 x 240 pixels
Battery capacity	3030 mAh
Warranty period	2 year(s)
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	79 mm
Width	117 mm
Height	173 mm
