4.8 Diagnostic
Item
Description
Print Config.
Print current printer configuration to the label. The configuration printout contains print head test pattern, which is useful
for checking the dot damage on the print head heater.
Dump Mode

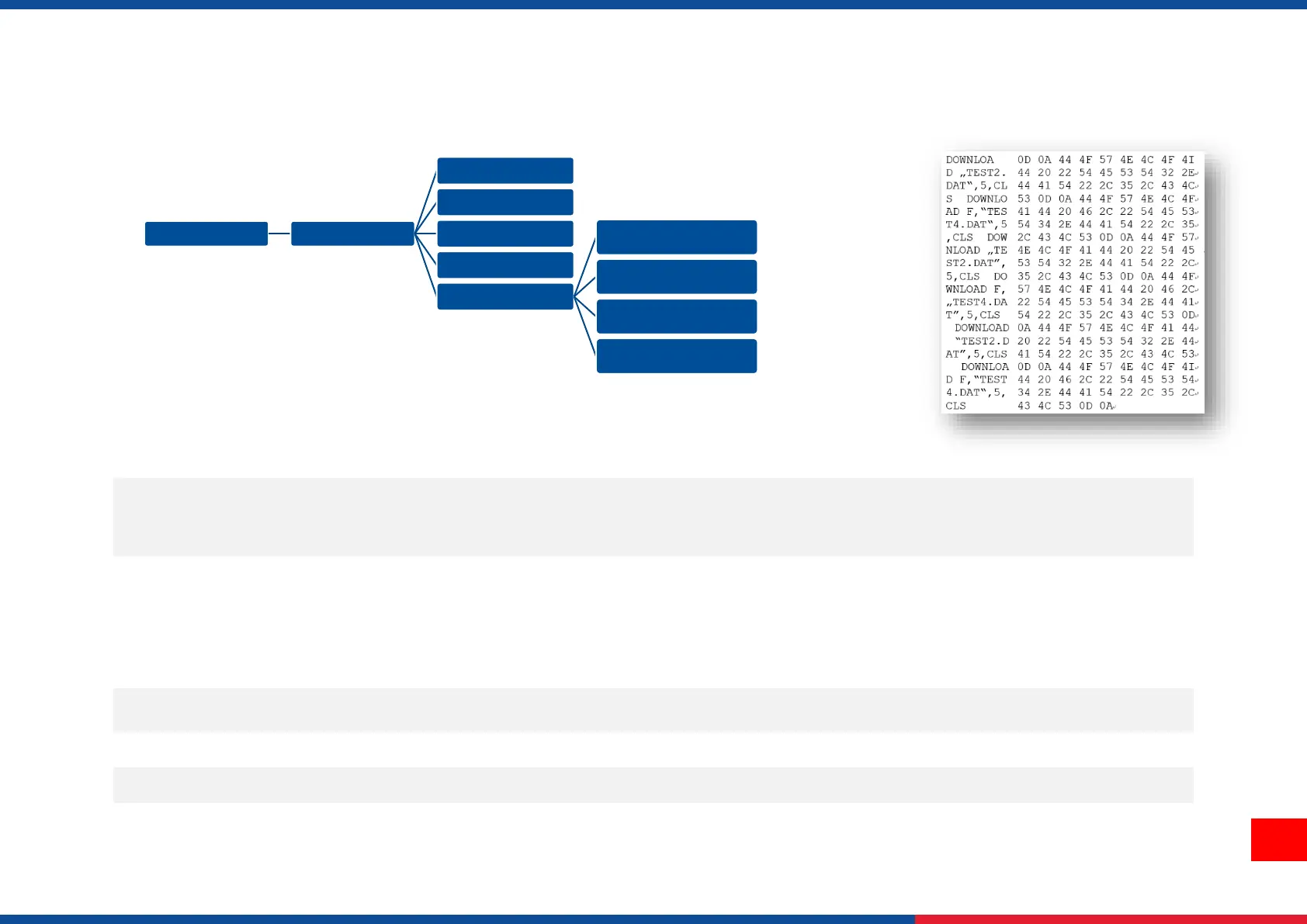

Captures the data from the communications port and prints out the data received by printer. In the dump mode, all
characters will be printed in 2 columns. The left side characters are received from your system and right side data are
the corresponding hexadecimal value of the characters. It allows users or engineers to verify and debug the program.
Dump mode requires 4” wide paper width.
Print Head
Check print head’s temperature and bad dots.
Display
Check LCD’s color state.
Sensor
Check sensors intensity and reading state.
Menu Diagnostic
Print Config.
Dump Mode
Print Head
Display
Sensor
Diag Gap
Diag Black Mark
Diag Ribbon End
Diag Media

TSC Alpha-30L Specifications

General

Color	Yes
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Printable dot numbers	8 dot
Maximum printing width	72 mm
Core diameter	12.7 mm
Media thickness	0.06 - 0.16 mm
Maximum roll diameter	67 mm
Supported paper width	80 mm
Ethernet LAN	No
Optional connectivity	Bluetooth, USB 2.0
Connectivity technology	Wired & Wireless
Internal memory	128 MB
Built-in barcodes	1D, 2D, China post, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Deutsche Post Identcode, Deutsche Post Leitcode, EAN128, EAN13, EAN14, EAN8, ITF-14, Interleaved 2/5, LOGMARS, PLANET, Standard 2/5, TELEPEN, UPC-A
Page description languages	ESC/POS, TSPL-EZ
Display	LCD
Control type	Buttons
Product color	Black, Grey
Display diagonal	2.3 \
Display resolution	320 x 240 pixels
Battery capacity	3030 mAh
Warranty period	2 year(s)
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	79 mm
Width	117 mm
Height	173 mm
