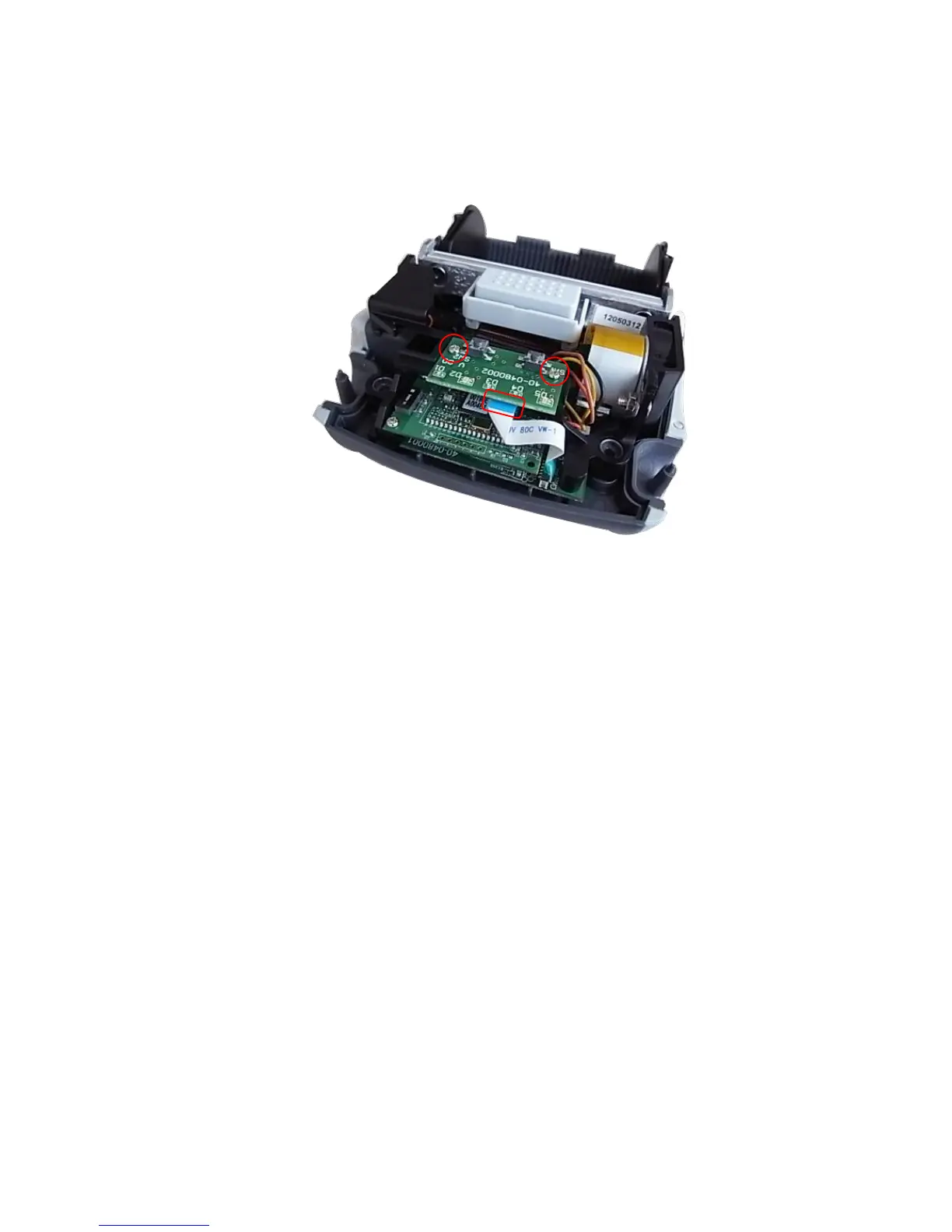

3.2 Replacing the Keys Pad
1. Refer to section 3.1 steps 1 and 2 to remove the printer top cover.
2. Remove two screws on the keys control board.
3. Disconnect the connector on the keys control board.
4. Reassemble the parts in the reverse procedures.
