TSC Alpha-3R Service Manual

21
5. Maintenance
This session presents the clean tools and methods to maintain your printer.
1. Please use one of following material to clean the printer.
 Cotton swab
 Lint-free cloth
 Vacuum / Blower brush
 100% ethanol

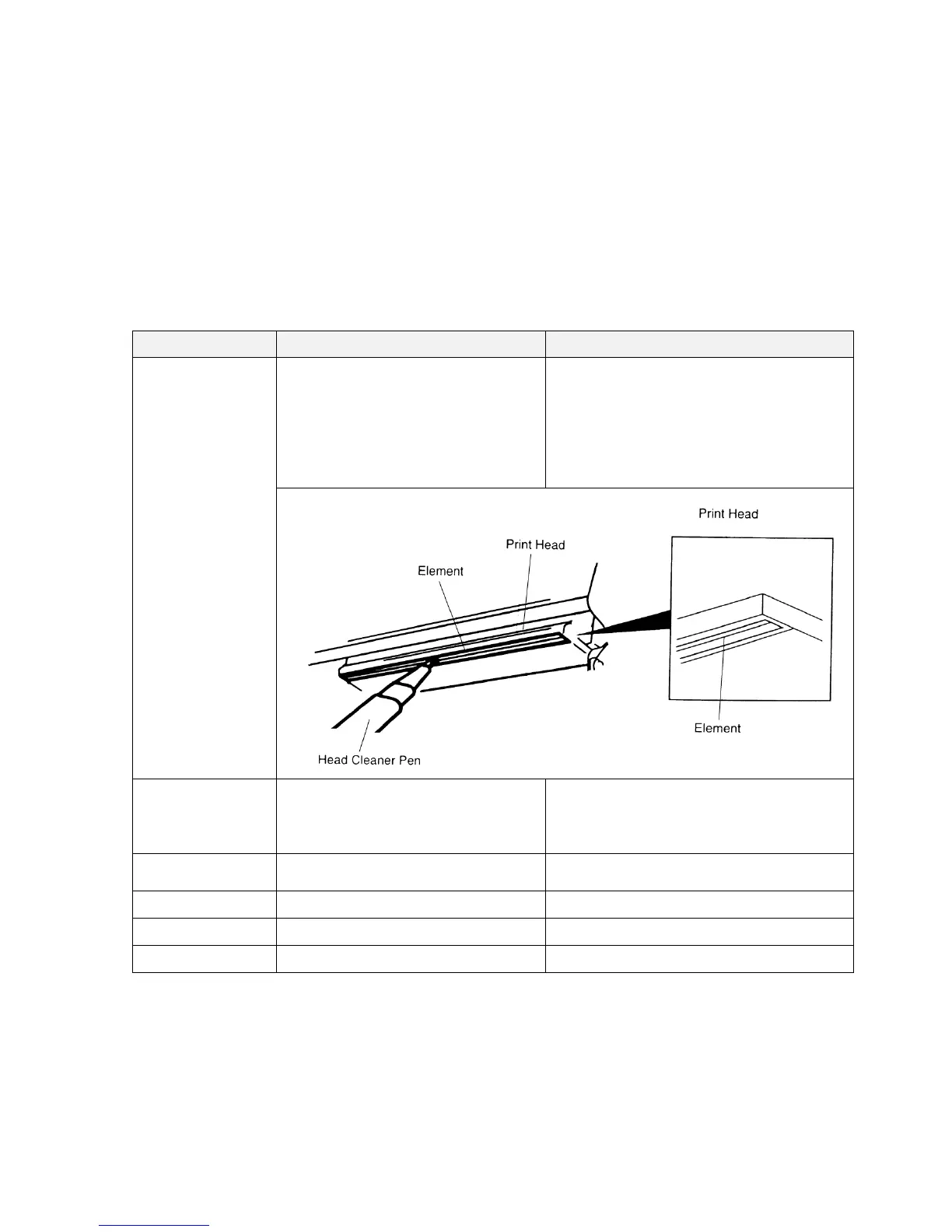

2. The cleaning process is described as following,
Printer Part
Method
Interval
Print Head
1. Always turn off the printer before
cleaning the print head.
2. Allow the print head to cool for a
minimum of one minute.
3. Use a cotton swab and 100%
ethanol to clean the print head
surface.
Clean the print head when changing a new
label roll
Platen Roller
1. Turn the power off.
2. Rotate the platen roller and wipe it
thoroughly with 100% ethanol and
a cotton swab, or lint-free cloth.
Clean the platen roller when changing a
new label roll
Tear Bar/Peel Bar
Use the lint-free cloth with 100%
ethanol to wipe it.
As needed
Sensor
Compressed air or vacuum
Monthly
Exterior
Wipe it with water-dampened cloth
As needed
Interior
Brush or vacuum
As needed
Note:
 Do not touch printer head by hand. If you touch it careless, please use ethanol to clean it.
 Please use 100% Ethenol. DO NOT use medical alcohol, which may damage the printer head.
 Regularly clean the print head and supply sensors once change a new ribbon to keep printer
performance and extend printer life.

TSC Alpha-3R Specifications

General

Flash memory	4 MB
Certification	FCC, CE, CB, CCC, C-Tick, BIS, EAC, IC, NOM, NCC, RoHS, WEEE
Internal memory	8 MB
Built-in barcodes	Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Built-in processor	Yes
Page description languages	CPCL-native, EPL2, ESC/POS, TSPL-EZ, ZPL II
Core diameter	25.4 mm
Media thickness	0.14 mm
Maximum roll diameter	57 mm
Package type	Box
Quantity per pack	1 pc(s)
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	10 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Bluetooth	No
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Optional connectivity	Serial (RS-232)
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Product color	Black, Grey
Battery voltage	7.4 V
Battery capacity	2500 mAh
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	2286 mm
Maximum printing width	72 mm
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Weight and Dimensions

Depth	148 mm
Width	116 mm
Height	70 mm
Weight	550 g
