TSC DA220 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
18

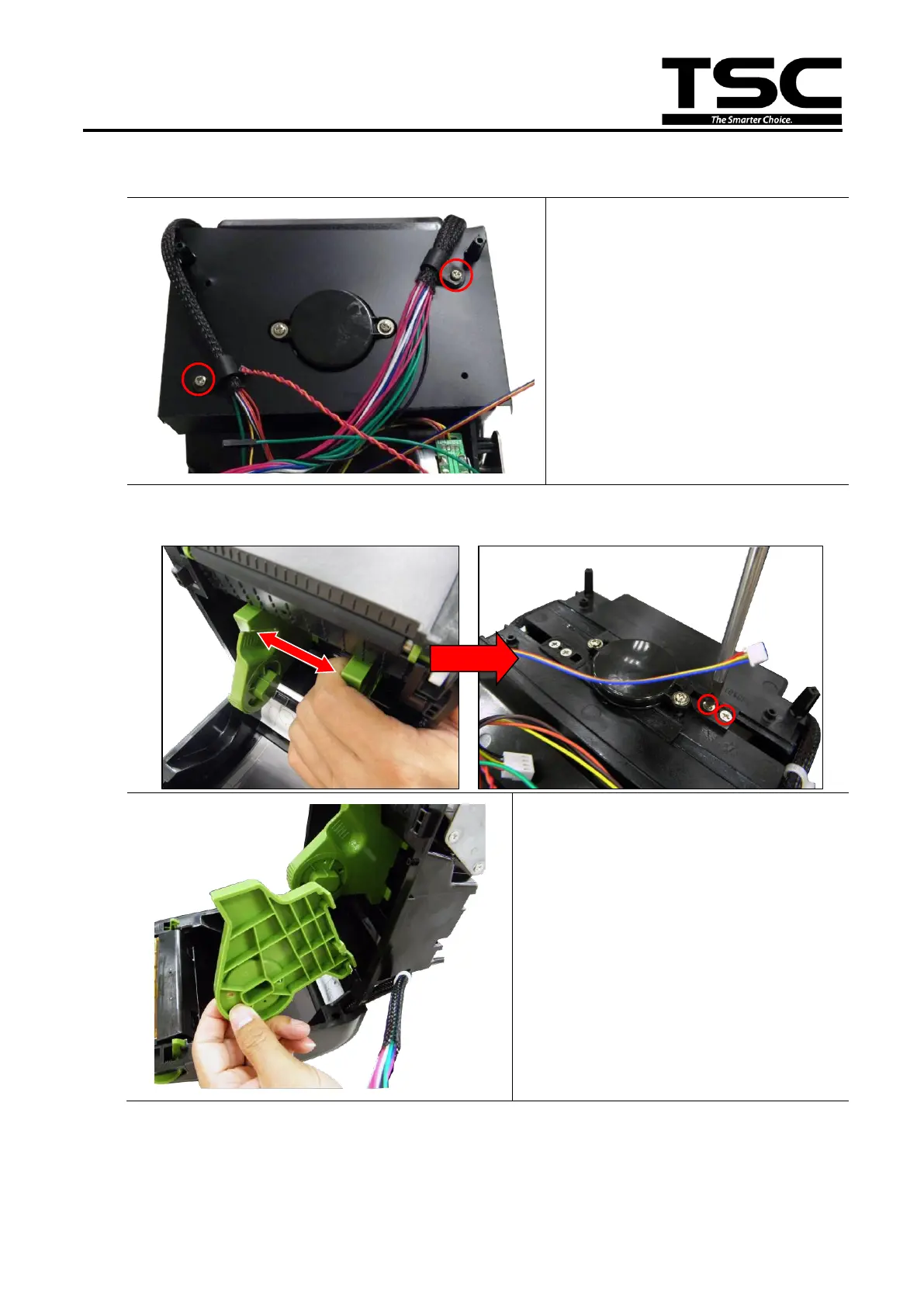

3.6 Replacing the Media Holder Assembly
1. Please refer to the section 3.3
to remove the lower cover.
2. Remove two screws to take off
the black mylar.
3. Separate the media holders to the remove two screws on one side of media
holder.
4. Replace one side of media holder.

TSC DA220 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 152.4 mm (6”) per second
Print Width	54 mm (2.12”)
Memory	8 MB SDRAM
Processor	32-bit RISC
Interface	USB
Operating Temperature	-40°C to 60°C
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Power Supply	100-240V AC, 50/60 Hz
