TSC DA220 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
4

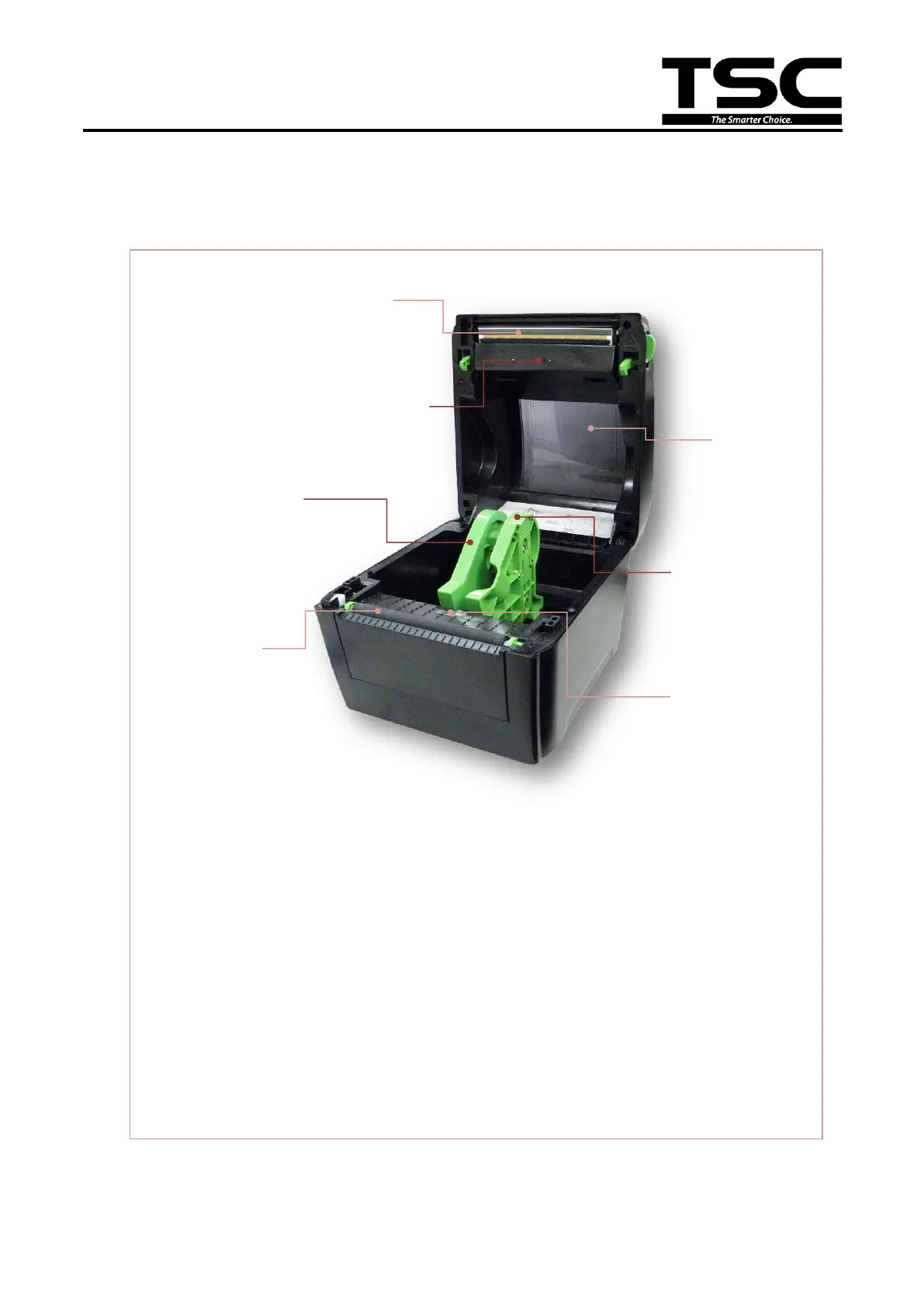

1.2 Interior View
1. Print head
2. Gap sensor (transmitter)
3. Media viewer
4. Media holder
5. Platen roller
6. Media holder lock switch
7. Black mark sensor/ Gap sensor (receiver)
1
3
2
7
US
B
int
erf
ac
e
6
USB
inte
rfac
e
5
4
US
B
int
erf
ac
e

TSC DA220 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 152.4 mm (6”) per second
Print Width	54 mm (2.12”)
Memory	8 MB SDRAM
Processor	32-bit RISC
Interface	USB
Operating Temperature	-40°C to 60°C
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Power Supply	100-240V AC, 50/60 Hz
