TSC DA220 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
34

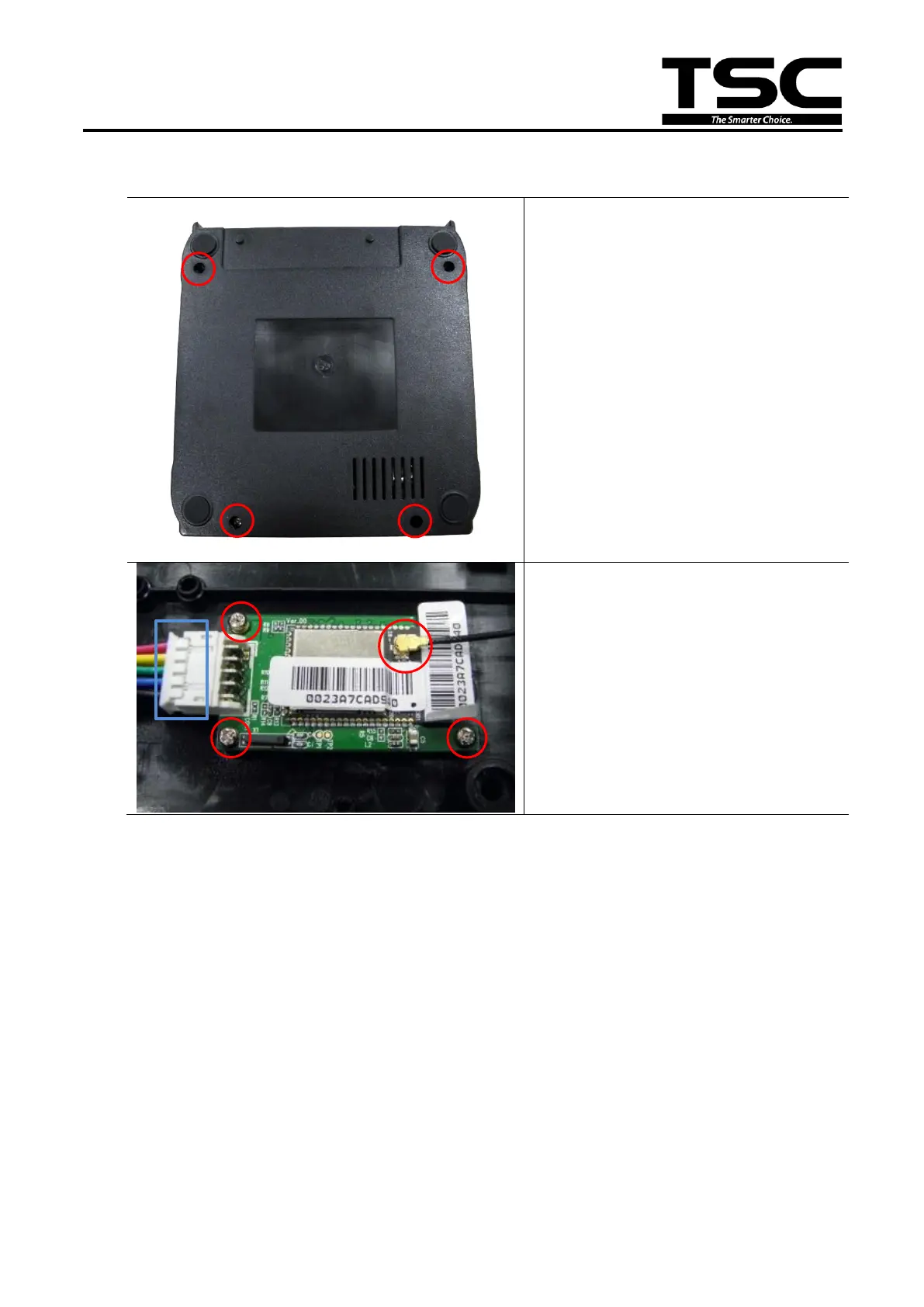

3.12 Replacing the Wi-Fi Module (Option for DA220 series)
1. Turn the printer upside down
and remove four screws on the
printer lower cover.
2. Disconnect all connectors on
the main board.
3. Disconnect the antenna on
Wi-Fi module carefully.
4. Disconnect the connector and
remove the three screws on
Wi-Fi module to replace it.
5. Reassemble the parts in the
reverse order.

TSC DA220 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 152.4 mm (6”) per second
Print Width	54 mm (2.12”)
Memory	8 MB SDRAM
Processor	32-bit RISC
Interface	USB
Operating Temperature	-40°C to 60°C
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Power Supply	100-240V AC, 50/60 Hz
