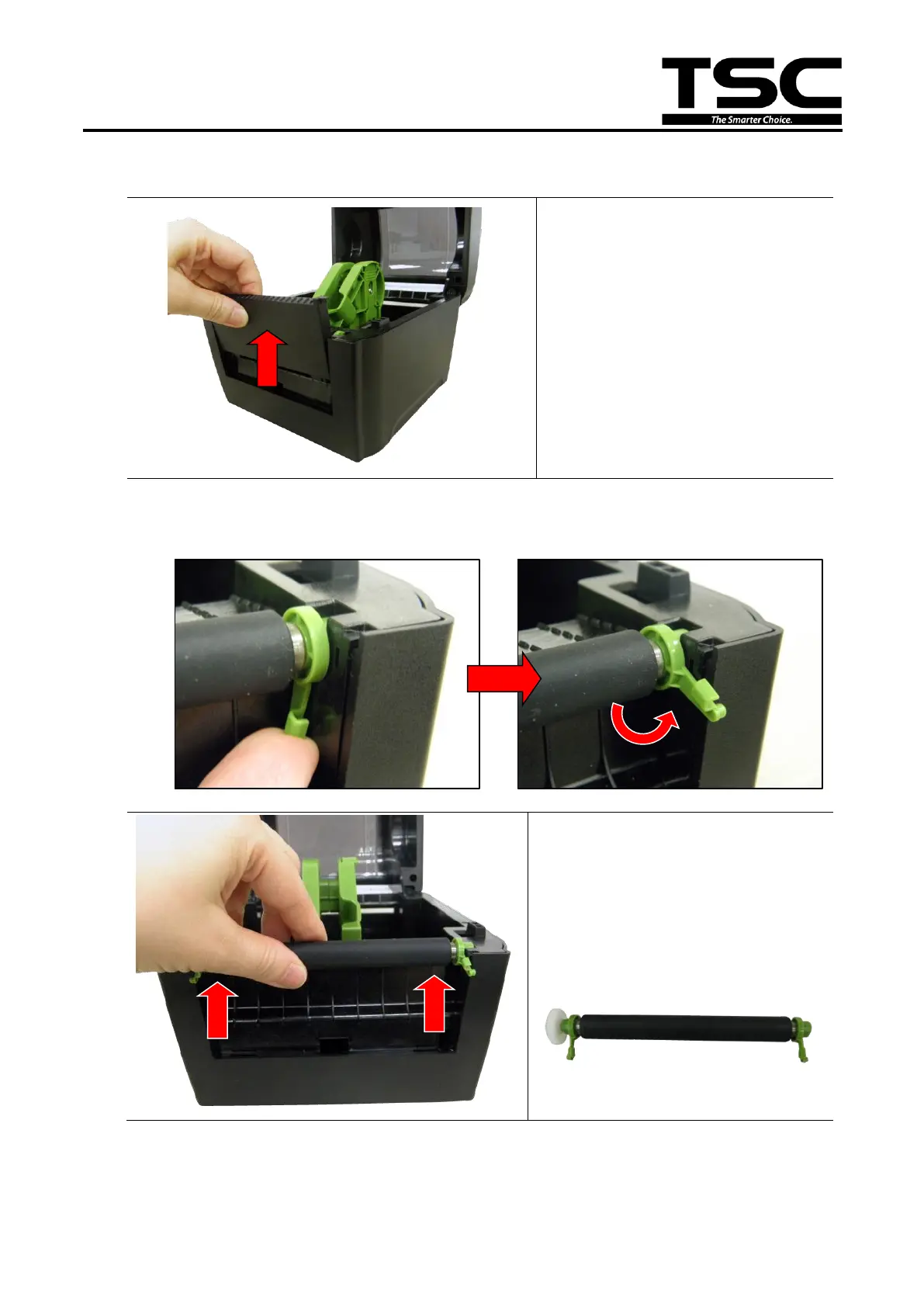

3.9 Replacing the Platen Roller assembly
1. Open the printer top cover
by pressing up the top cover
open tabs located on each
side of the printer.
2. Remove the lower front
panel.
3. Disengage the platen holder tabs by pulling out the right side and left side tabs.
Rotate the tabs into the forward position. (see picture below)
4. Take out the platen roller
assembly to replace.
Reassemble the parts in the
reverse procedure.
