TSC DA220 Series Service Manual

DA210/ DA310/ DA220/ DA320
Bar Code Printer Service Manual
26

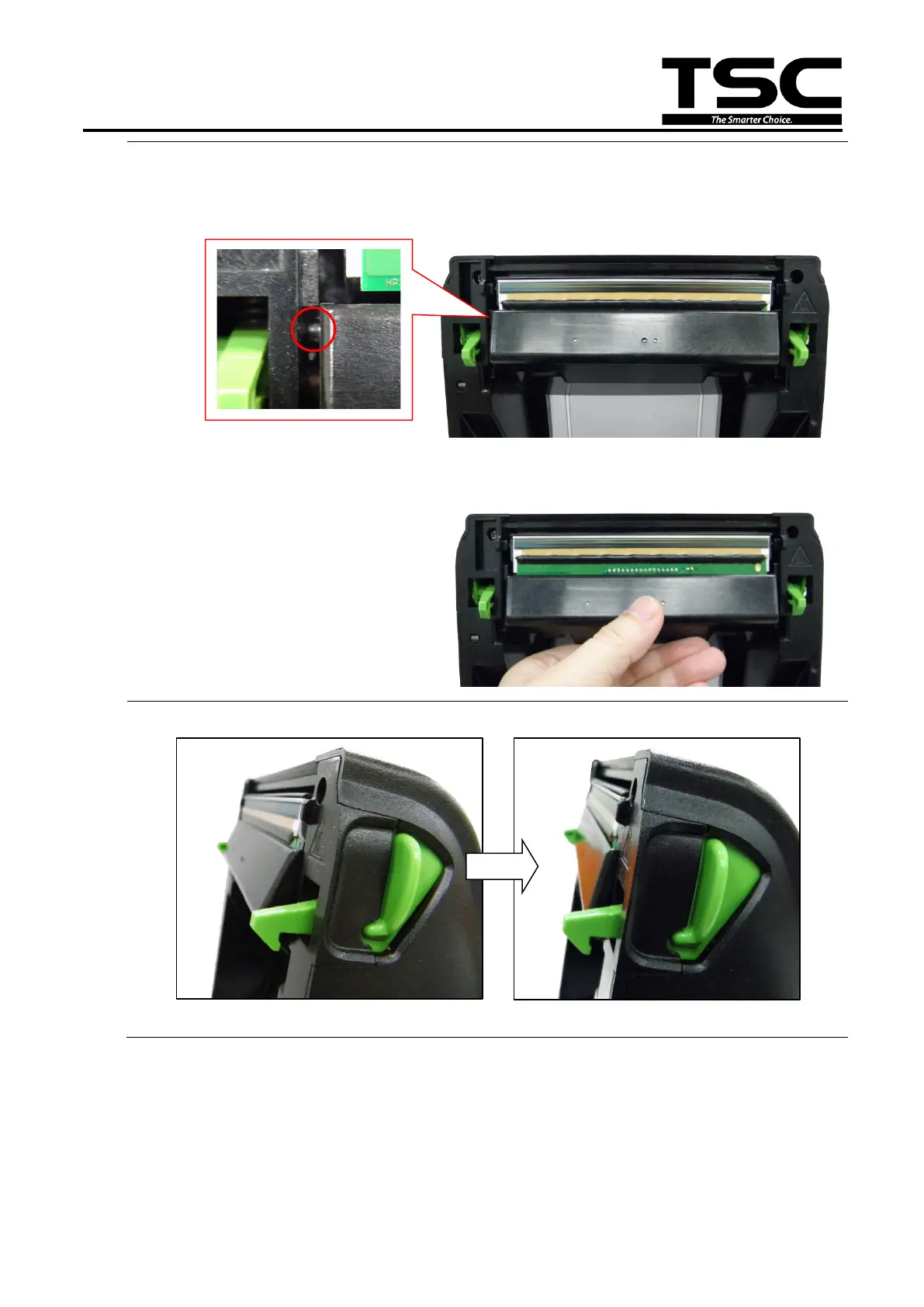

11. Lift up both latches of gap sensor cover into the printer inner cover. (you can press
the center of the printhead module for installing the cover easily) Please note that
the gap sensor cover CANNOT press the printhead module.
The gap sensor cover should cover about 1/2 printhead.
12. Press back the gap sensor cover tabs into the socket.
Latch
Press
O
X

TSC DA220 Series Specifications

General

Resolution	203 dpi / 300 dpi
Print Speed	Up to 152.4 mm (6”) per second
Print Width	54 mm (2.12”)
Memory	8 MB SDRAM
Processor	32-bit RISC
Interface	USB
Operating Temperature	-40°C to 60°C
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
Power Supply	100-240V AC, 50/60 Hz
